USED 2015 Mazak VCN 530/5AX

The Mazak VCN 530/5AX 5-Axis Machining Center (2015) with Mazatrol Matrix 2 control delivers exceptional precision and productivity for complex multi-surface machining. Designed for aerospace, medical, automotive, and mold & die applications, it excels at simultaneous 5-axis contouring, deep cavity milling, and high-accuracy production of intricate components in a single setup.

X Travel: 41.33"
Y Travel: 20.86"
Z Travel: 20.86"
Spindle Speed: 12000 rpm
Tool Capacity (ATC): 30
Table Size (W): 21.86"
Table Size (L): 51.1"
Main Spindle Motor: 25 hp
Spindle Taper: CAT 40
Hi Pressure Coolant System: 213 psi
Dimensions: 120" FB X 145" L X 120" T
Weight: 16,380 LBS

ONLY 1137 CUTTING HOURS

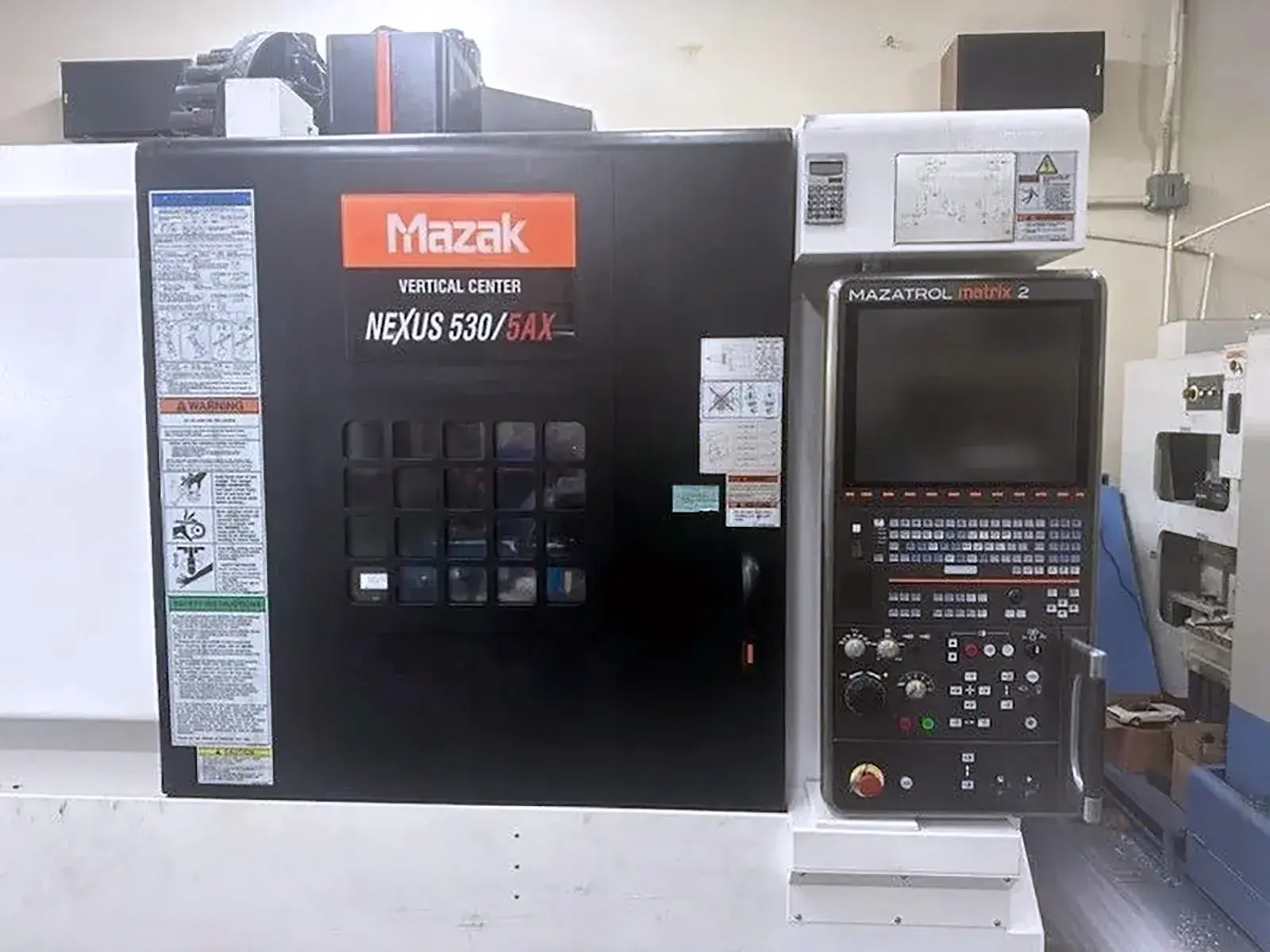

MAZATROL MATRIX-2 WINDOWS 7 OPERATING SYSTEM
SIMULTANEOUS 5-AXIS
MANUAL PULSE GENERATOR
USB 2 PORTS
SYNCHRONIZED TAPPING
SPINDLE THRU-COOLANT
SPINDLE CHILLER
HI-PRESSURE COOLANT
TRANSFORMER
