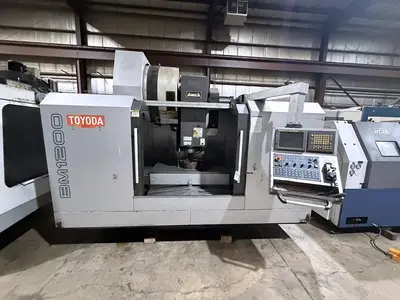

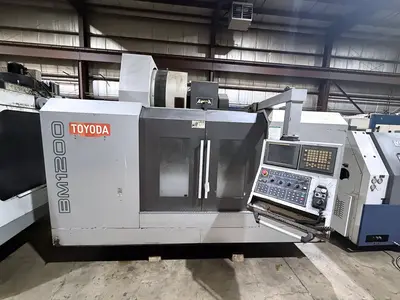

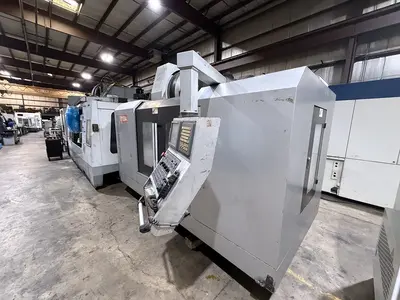

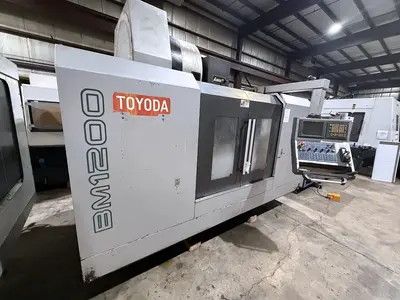

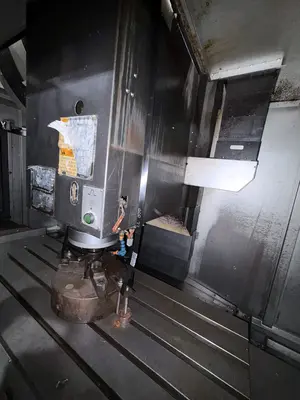

USED 2006 Toyoda Awea BM1200
Overview
The 2006 Toyoda Awea BM1200 CNC Vertical Machining Center with Fanuc control is engineered for heavy-duty milling, drilling, and tapping of large workpieces. Featuring rigid box-way construction, a high-torque spindle, and two-speed gearbox, it excels in aerospace, automotive, die & mold, and precision manufacturing applications requiring aggressive metal removal and exceptional accuracy.
Specs

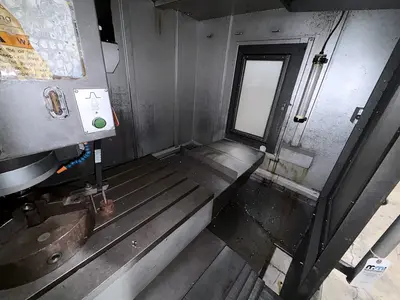

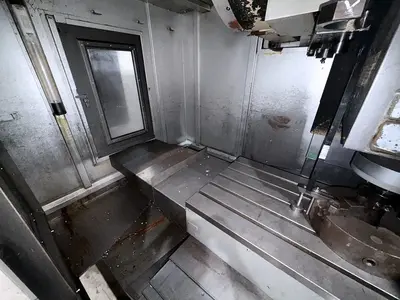

Table Size: 51.22" x 25.61"
Table Load Capacity: 2,640 lbs
X-Axis Travel: 51.22"
Y-Axis Travel: 25.61
Z-Axis Travel: 24.03

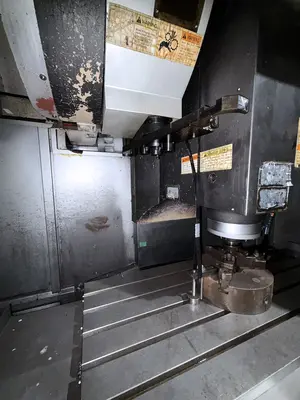

Spindle Taper: CAT 50
Spindle Speed: 60 - 6,000 RPM
Spindle motor (2 speed geared): 15 HP
Spindle Center to Column: 27.97"
Spindle Nose to Table Top: 4.925" - 28.96"
Tool magazine capacity - side mount: 24 Position ATC
Tool change time (chip-to-chip): 7 seconds
Maximum Tool Diameter/Length/Weight: 5.91"/9.856"/15.4 lbs.
Rapid Traverse Rates X, Y / Z: 1182 IPM / 945 IPM
Cutting Feedrates: 591 IPM
Equipped With
Cat 50 Taper
Boxway Style
High Pressure Coolant Thru Spindle (1000 PSI)
New Spindle in 2018
Gear Box (High and Low Rebuilt)
Chip Conveyor
