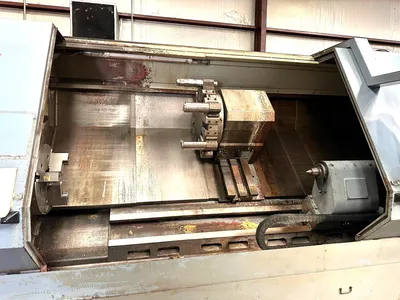

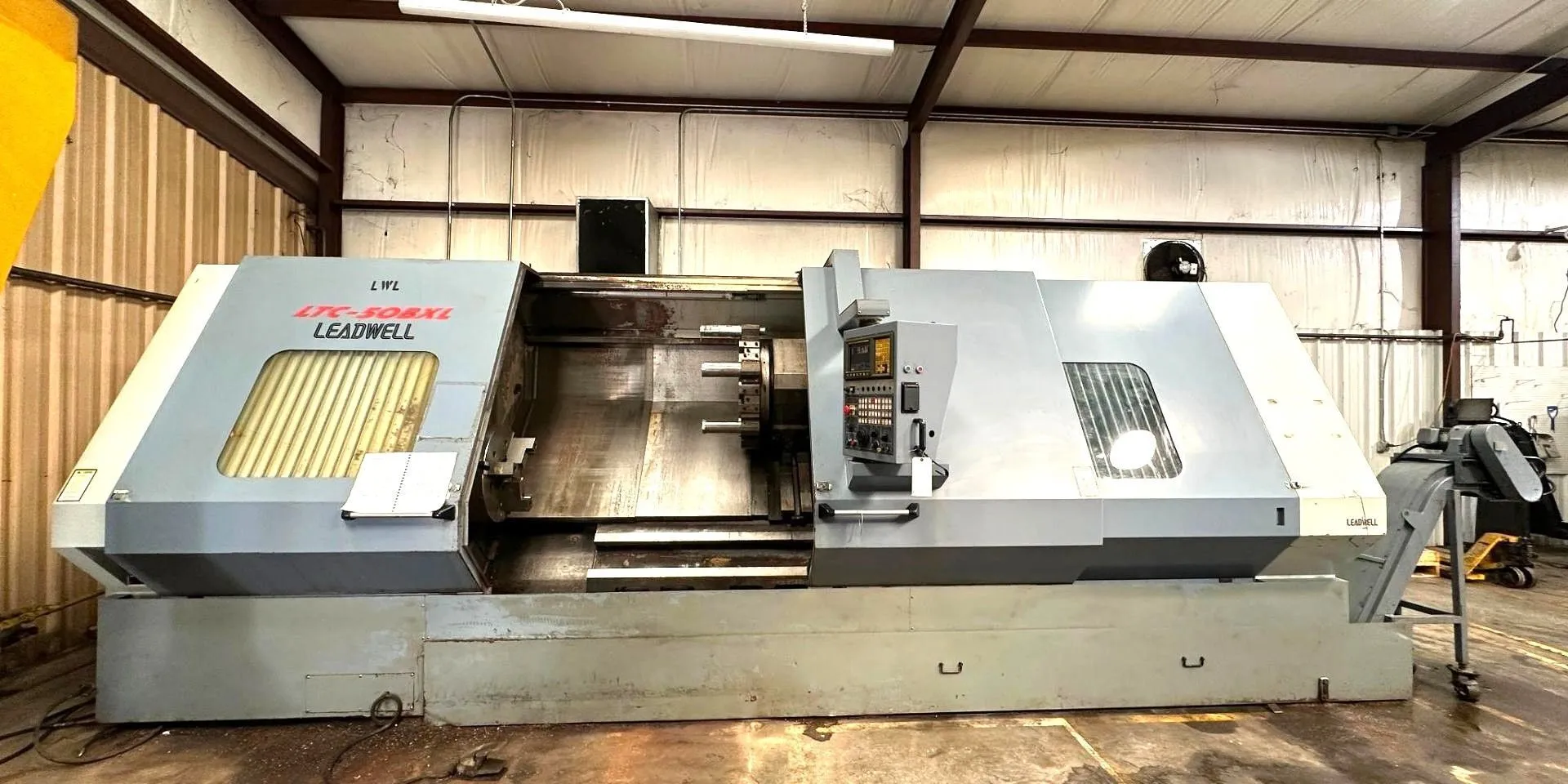

USED 2005 LEADWELL LTC-50BXL

2005 Leadwell LTC-50BXL is a Very Heavy-Duty Slant Bed
Casting that holds better Accuracies over flat Bed Designs.
Main Feature to add CNC Auto Steady Rest for Full Part Turning
Capabilities

2005 LEADWELL LTC-50-BB-XXL CNC LATHE
21" KITAGAWA B-21 3 JAW, CHIP CONVEYOR

MAIN SPECIFICATIONS:
MAX. SWING:...........................33.46"
SWING OVER CROSS SLIDE: 31.45"
MAX. TURNING DIAMETER: ...27.55"
MAX. TURNING LENGTH: .......119.48"
BAR CAPACITY: .......................4.60"
MAX. WORKPIECE WEIGHT:
TRAVEL X AXIS:.......................16.73"
Z AXIS: .....................................122.04"

SPINDLE
SPINDLE SPEED RANGE: 15–1500 RPM

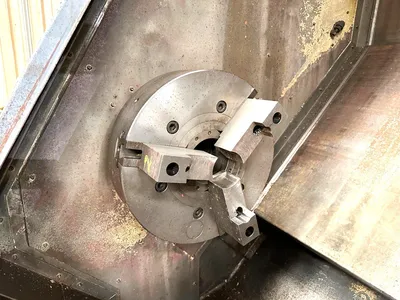

CHUCK SIZE: 21" KITAGAWA B-21 3 JAW
TYPE OF SPINDLE NOSE: A2-11
THRU SPINDLE HOLE DIAMETER: 5.51"

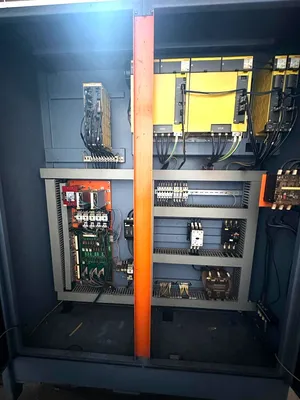

SPINDLE MOTOR:
FANUC: 37 / 45 KW (50 / 60 HP)
MAX. SPINDLE TORQUE: 375.3 N·M

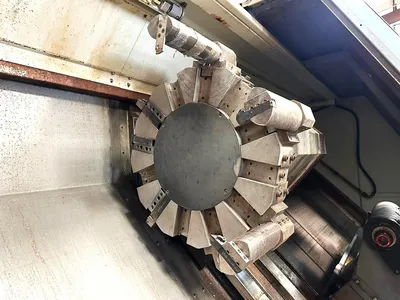

TURRET
NUMBER OF TOOL STATIONS: ......12
TURRET INDEXING TIME............... 0.25 SEC
TURRET INDEXING TIME PROG.:.. 1.46 SEC

FEEDRATE
RAPID TRAVERSE (X): (393.7 IN/MIN)
RAPID TRAVERSE (Z): (472.4 IN/MIN)

BED & SLIDE
OVERALL BED GUIDE WIDTH: 26.37"
CROSS SLIDE GUIDE WIDTH: 12.6"
SLANT BED DEGREE ANGLE: 45°

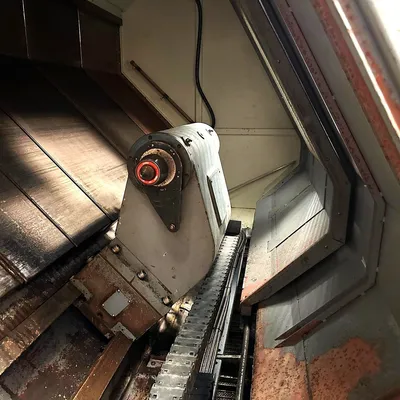

TAILSTOCK
TAILSTOCK MOVEMENT TYPE: AUTO
TAILSTOCK TRAVEL: 114"
QUILL MOVEMENT TYPE: HYDRAULIC
QUILL DIA: 4.92"
QUILL STROKE: 6.1"
QUILL INSIDE TAPER: MT #6
QUILL THRUST (MAX): 1300 KG
COOLANT SYSTEM
PUMP MOTOR: 1.34 HP
PUMP PRESSURE: 3 KG/CM²
TANK CAPACITY: 162 L
COOLANT SYSTEM: CHIP CONVEYOR
CHIP REMOVAL TYPE: SIDE DISCHARGE CHAIN TYPE
PUMP CAPACITY: 180 / 270 L/MIN
MACHINE WEIGHT: LTC-50BXL: 37,478 LBS.
MACHINE DIMENSIONS BXL: 260" × 101" × 96"

EQUIPPED WITH:
21" KITAGAWA B-21 3 JAW
CHIP CONVEYOR

Special Price:....... $ Please Email Quote Requests.
