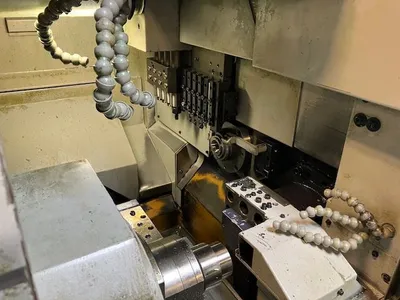

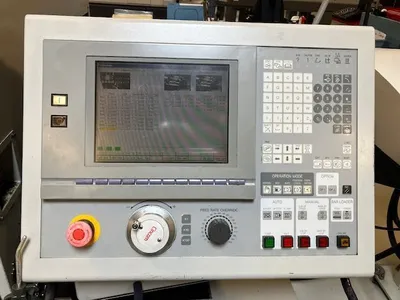

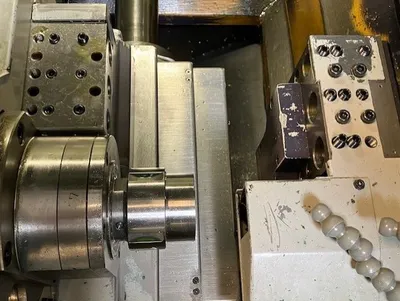

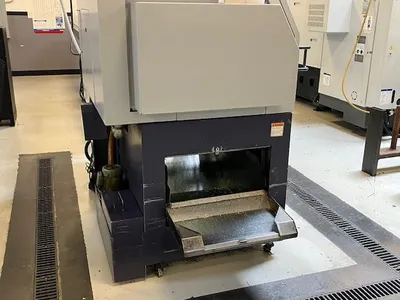

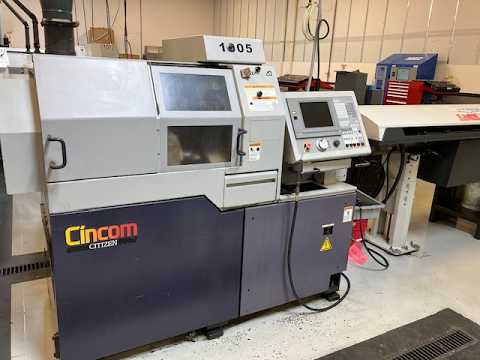

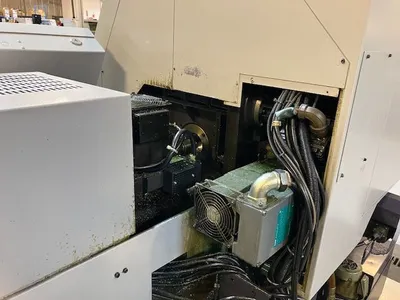

Citizen L20 CNC Swiss Lathe, New in 2000
| Capacity | 20 mm | 0.7874" |
| Power | 5.5 hp | 4.1 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # Axis | 5 | 5 |
| Dimensions | 84" x 48" x 72" | 84" x 48" x 72" |
| Weight | 4,000 lbs | 4,000 lbs |
General Specifications:
Machining Diameter: 3/4"/20mm
Machining Length Per One Chuck: 7.9"/200mm
Drilling Diameter Up to: .394"/10mm
Spindle Speed: 10,000 RPM
Chucking Diameter of Pick-off Spindle: .790"
Pick-off Spindle Speed: 8,000 RPM
Pick-off Spindle Motor: 2 HP
Spindle Index: 1 Deg.
Rotary Spindle Speed: 5,000 RPM
Rotary Tool Motor .5 HP
Number of Tools Mounted:
Turning/Front ID/Back ID/Live Tools 6/3/3/4
Machine Dimensions: 65"x37" plus B.F.
Machine Weight: 3,600 Lbs

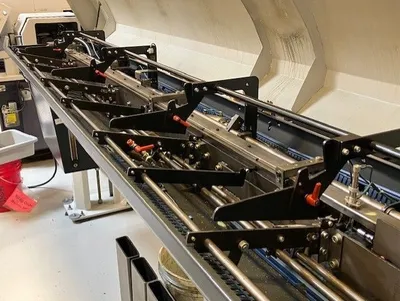

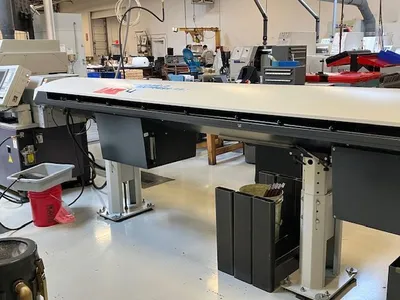

12' LNS Hydrobar 226 Express Magazine Barfeed
