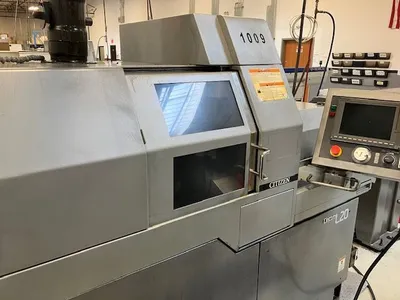

Citizen L20VIII CNC Swiss Lathe, New in 2008
| Capacity | 20 mm | 0.7874" |
| Power | 3.7 kW | 5 hp |
| RPM | 10,000 RPM | 10,000 RPM |
| Swiss, Chucker or Convertible? | Swiss | Swiss |
| Main Spindle Indexing | Full C | Full C |
| Sub-Spindle Indexing | Full C | Full C |
| Live Back Working Tools | Yes | Yes |
| B-Axis? | No | No |
| Control | CNC (Citizen Mitsubishi) | CNC (Citizen Mitsubishi) |
| Dimensions | 83.5" x 48" x 81" | 83.5" x 48" x 81" |
| Weight | 5,000 lbs | 5,000 lbs |
General Specifications:
Main Spindle
Machining diameter: 3/4" (.79")
Machining length per one chuck: 7.87"
Drilling diameter: up to .394"
Speed: 200 - 10,000 rpm
Spindle input increment: 0.01 Full C-axis
Motor: 2.2/3.7 KW
Tooling: 1/2" (T01 5/8")
Back-work:
Chucking dia. of pick-off spindle: .79"
Pick-off spindle speed: 200 - 8,000 rpm
Pick-off spindle motor: .75/1.5 KW
Min. spindle increment: 0.01 Deg. Full C-axis
Rotary tool:
Rotary spindle speed: 200 - 5000 rpm
Rotary tool motor: 1.0 KW
Number of tools mounted: 18-21
Turning / Front ID / Back ID / Live tools: 5 / 3 / 3 / 5
Power consumption: 6 KVA
Machine Dimensions: 83.5" x 48" x 81"
Machine Weight: 5,000 lb
Mitsubishi Control
CAV20L-IS 12' Magazine Barfeed
