USED 2023 DN SOLUTIONS Lynx 2100
Overview

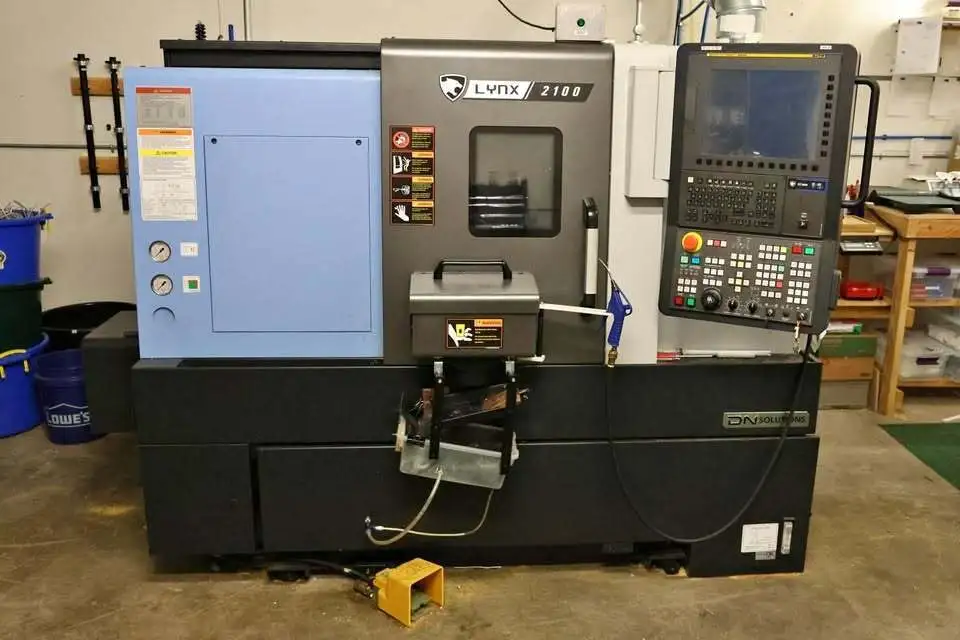

DN Solutions Doosan Lynx 2100A CNC Lathe (2023)
Specs
DN Solutions Doosan Lynx 2100A CNC Lathe (2023)
Capacity & Workpiece Dimensions
Standard Chuck Size: 6 inches (152 mm)
Maximum Turning Diameter: 13.8 inches (350 mm)
Maximum Turning Length: 13.0 inches (330 mm)
Maximum Bar Working Diameter: 2.1 inches (51 mm)
Main Spindle Performance
Maximum Spindle Speed: 6,000 RPM
Maximum Spindle Power: 20 hp (15 kW)
Maximum Spindle Torque: 94 ft-lb (127 N·m)
Spindle Motor Drive: FANUC high-power motor
Axis Travel & Speed
X-Axis Travel Distance: 8.0 inches (205 mm)
Z-Axis Travel Distance: 13.4 inches (340 mm)
X-Axis Rapid Traverse Rate: 1,181 ipm (30 m/min)
Z-Axis Rapid Traverse Rate: 1,417 ipm (36 m/min)
Bed Configuration: 30° rigid slant-bed Meehanite casting
Guideway Type: High-rigidity roller linear guideways
Turret
Number of Tool Stations: 12 stations
Turret Indexing Time: 0.11 seconds (servo-driven)
Physical Machine Dimensions
Length: 91 inches (2,320 mm)
Width: 63 inches (1,595 mm)
Height: 67 inches (1,693 mm)Machine Weight: 6,834 lbs (3,100 kg)
Equipped With
Approx 250 hours of operation!
6,000 RPM Spindle,
2” Through Bore
20 hp spindle.
70A 208V 3 phase power required.
12 station turret

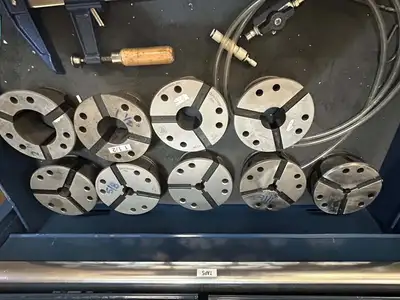

Royal Accu-length QG-65 collet system with 10 collets (3/8 to 2” common sizes).
3 Jaw chuck also included (MH-206 6" Samchully 3-jaw chuck)
Royal Grippex 20L Coolant-Actuated CNC Bar Puller - Several spindle liners included.
FANUC 0i-TF-Plus Control, Fanuc Motors and Drives
Doosan EZ Guide i Conversational Programming
13.78" maximum turning diameter, 13" maximum turning length
Programmable part catcher
Tool setter
Rigid tapping
Automatic Grease Lubrication System

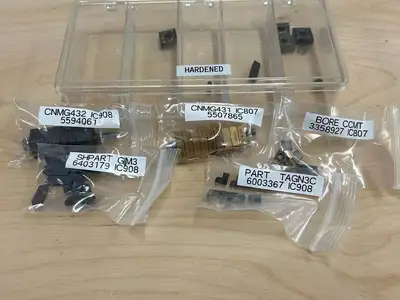

Lots of quality tooling included, mostly Iscar.
