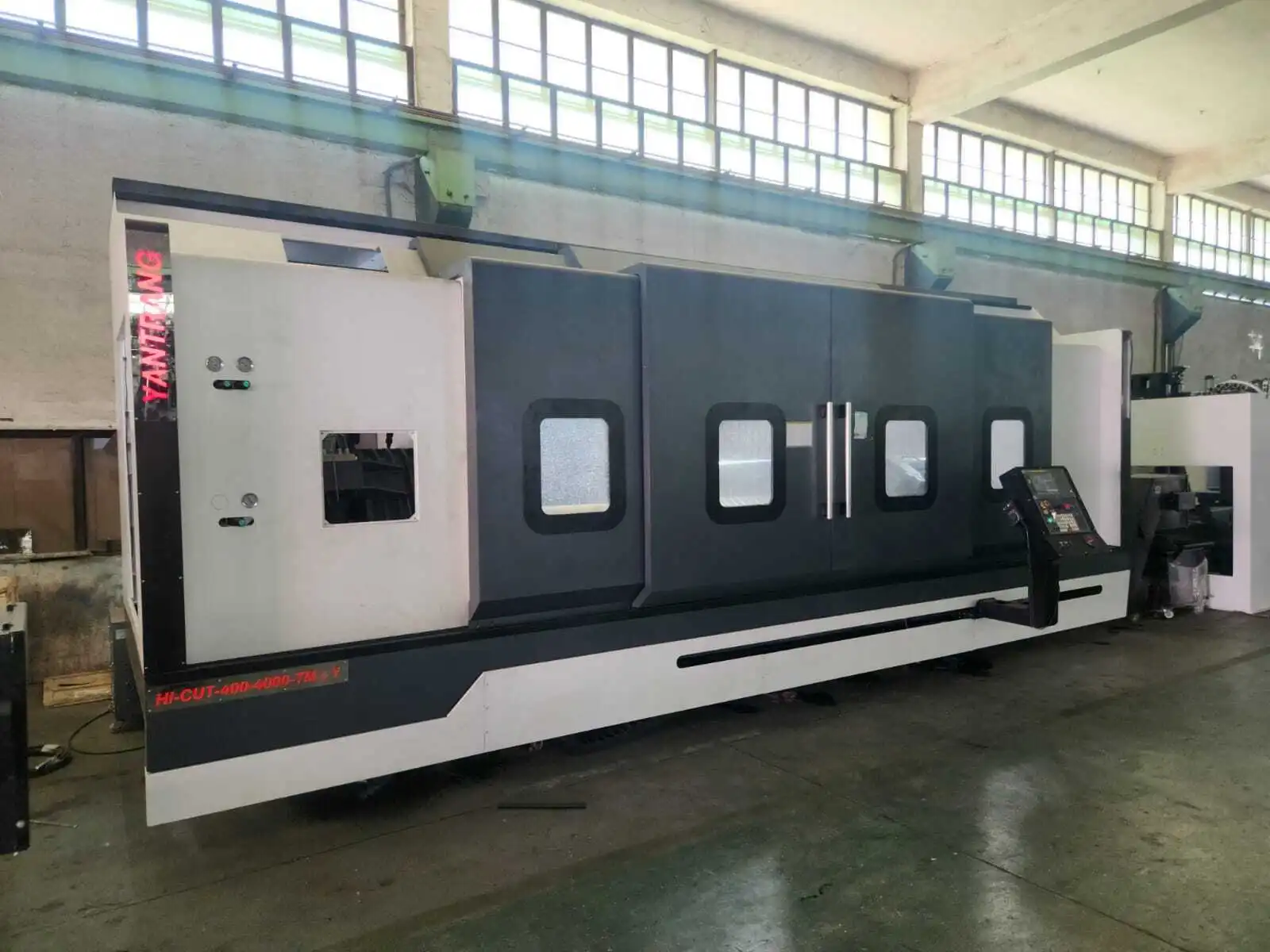

NEW 2024 YANTRANG HICUT 400/4000

NEW Yantrang 600mm x 4,000mm (24” x 160”) Model Hicut 400/4000 TM+Y CNC Turnmill. With Live tooling, C and Y Axis. Fanuc O1-TF Plus

NEW Yantrang 600mm x 4,000mm (24” x 160”) Model Hicut 400/4000 TM+Y CNC Turnmill. With Live tooling, C and Y Axis. Fanuc O1-TF Plus
Turning diameter: 600mm (24”)
Chuck: 400mm 3-jaw (16”)
TURRET BMT65 12 STATION
Live Tool power: 5kw (6.7 HP)
Y axis travel :+-100mm (4”)
Z travel 4050mm (159-1/2”)
Steady rest: 45 to 245 mm (1-3/4” – 9-3/4”)
Chip Conveyor
Spindle power 18/22kw (24/30 HP)
A2-11 spindle
110mm through bar capacity (4-3/8”)
