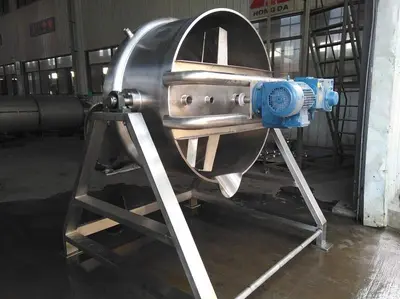

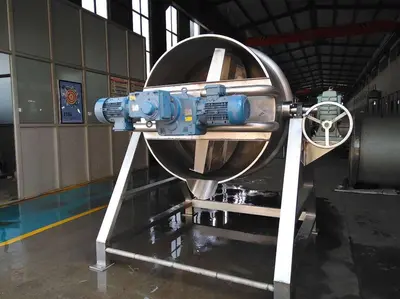

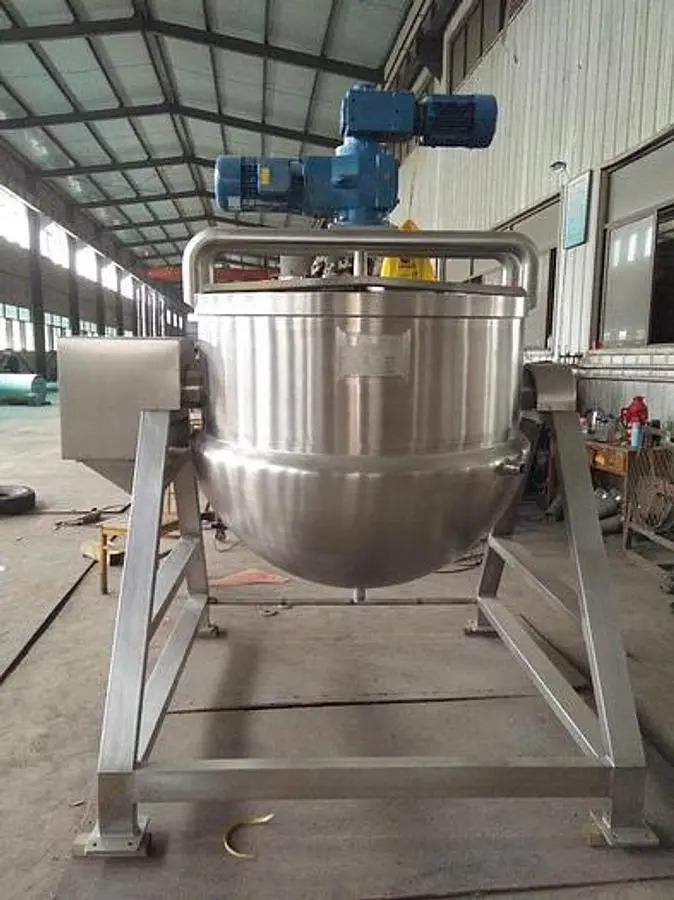

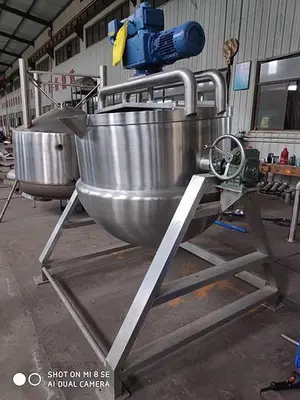

NEW 2021 HONGDA TILT KETTLE

Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.

*Hemispherical style kettle.
*Sanitary configuration.
*Manual Tilting.
*Constructed of stainless steel 316 type product contact areas, 304 for other parts.
*Steam jacket is ASME-U Stamped at 90 Psi and NB registered.  Equipped with steam in, condensate out.
*With safety grate and flush mount RTD sensor
*Kettle body to have four legs configuration with flanged feet.
*Kettle body to have 3" center bottom flush mount ball valve discharge.
*Agitation is bridge mounted. scraping surface and paddle type.
*Heavy Duty drive
-4 HP three phase, 230/460V 60HZ UL listed Drive. Current rating: 230V 11A; 208V 12.2A
-2 HP three phase, 230/460V 60HZ UL listed Drive. Current rating: 230V 6A; 208V 6.6A
*Tri‐Clamp type additive ports.
*Stainless steel, hinged cover on both sides.
*Controller included, pre-wired using 230V three phase power.
*Digital temperature recorder, solenoid steam valve control feature.
*Safety grate interlock.
*Emergency Stop.
*Overcurrent protection.
