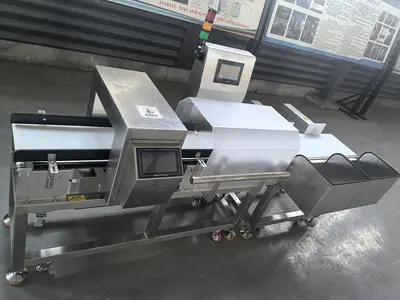

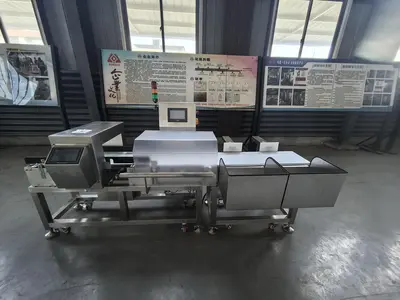

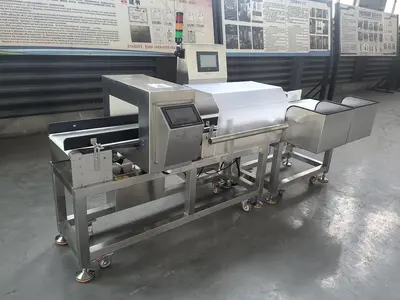

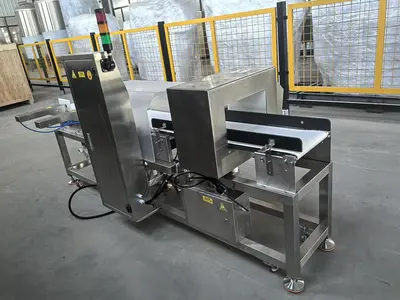

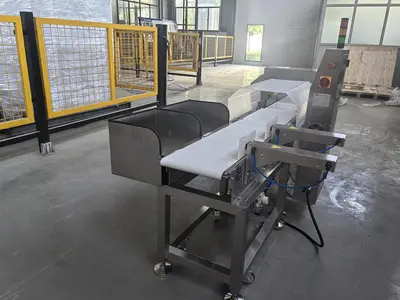

Metal Detector and Checkweigher Combination Machine CM-210

Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.

Model：CM-210
Equipment components：
Metal Detector CQ-818:
Application
Designed to detect iron, copper, aluminum, and stainless steel contaminants in products across the textile, plastic, toy, seafood, food, pharmaceutical, supplement, and cosmetic industries. Compatible with bulk, bagged, bottled, and boxed formats.
Specification
Detection Window Height: 7.9 inches
Detection Window Width: 8.3 inches
Detection Sensitivity (on the belt surface in an empty machine state):
FEφ0.08 inches
CU φ0.1 inches
SUSφ0.12 inches
Key Features
High detection accuracy with advanced digital tech and sealed coil design.
Supports multi-frequency settings and stores up to 100 product profiles.
Intelligent self-learning to reduce product effect interference.
Simple LCD interface for quick setup—no repeated adjustments needed.
Modular components for fast and easy maintenance.
Dustproof, waterproof, and shock-resistant—built for harsh environments.
Compatible with various reject systems (flap, air blast, pusher) and customizable body designs for lightweight, bulk, or heavy-duty use.

Weighing Machine CQ-XP210:
Scope of Application: This product is suitable for detecting whether the weight of individual products meets the required standards. It is widely used in various industries such as electronics, pharmaceuticals, food, beverages, health products, daily chemicals, light industry, and agricultural by-products. Such as food industry: Prepared foods, pastries, sausages, instant noodles, frozen foods, food additives, colorants, modifiers, preservatives, etc.
Specification:
Weighing Platform Specifications: 15.7 inches (L) * 8.3 inches (Width)
Maximum Capacity: 2.2 lbs
Weighing Range: 0.002 lbs - 2.2 lbs
Highest Accuracy: ±0.01 oz ~ ±0.04 oz
Minimum Scale Division: 0.004 oz
Conveyor Speed: 98.4 ~ 295.3 ft/min
Material Size for Weighing: ≤11.0 inches (L) * 7.9 inches (W)
Machine Legnth approximately: 90.6 inches
Height of the conveyor belt from the ground: 27.6 inches, with an additional 3.9 inches adjustable foot cup.
Product Features
Strong Versatility: The standardized structure and human-machine interface of the entire machine allow for the weighing of various materials.
Simple Operation: Features a color touch interface with fully intelligent and user-friendly design. The conveyor belt is easy to assemble and disassemble.
Easy Installation & Maintenance: Convenient to install, maintain, and clean.
Adjustable Speed: Equipped with a variable frequency control motor, allowing speed adjustments as needed.
High Speed & High Precision: Uses high-precision digital sensors with fast sampling speed and high accuracy.
Zero Tracking: Supports both manual and automatic zeroing, as well as dynamic zero tracking.
