NEW 2025 HONGDA KETTLE
Overview
Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.

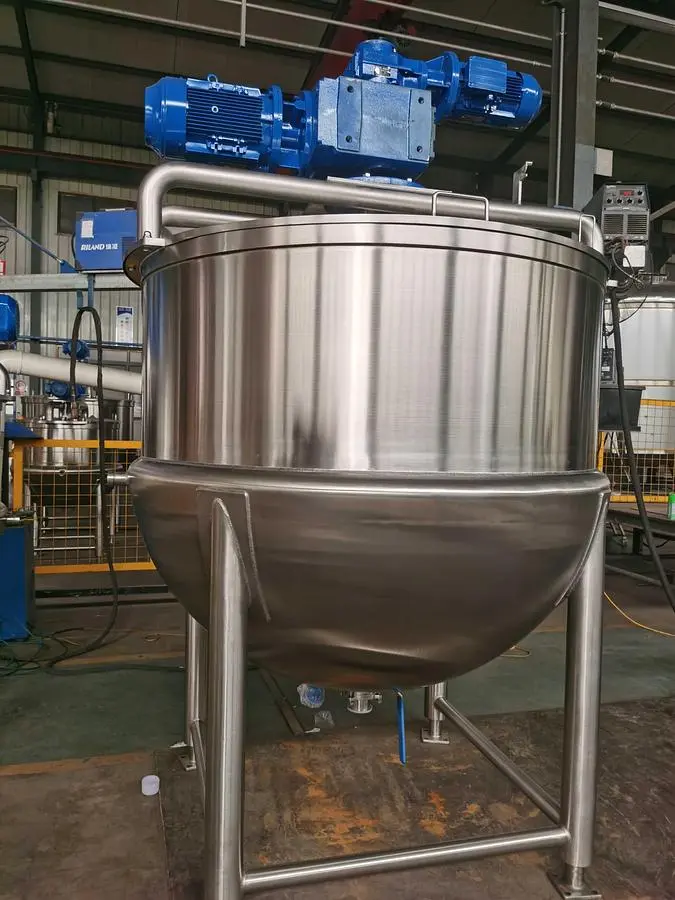

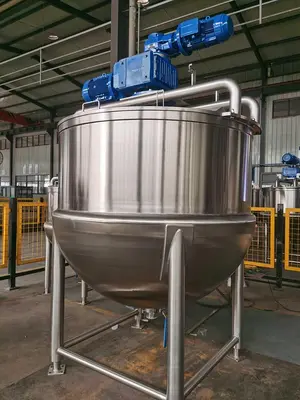

The Hongda Hemispherical Steam Jacketed Mixing Kettle is a high-performance sanitary processing vessel designed for the food, beverage, pharmaceutical, cosmetic, and chemical industries. Engineered for efficient heating, mixing, and temperature-controlled processing, this jacketed kettle provides reliable operation for cooking, blending, concentrating, and batch production applications.
The kettle features a hemispherical bottom design to improve material flow, reduce dead zones, and enhance mixing efficiency. The steam jacket system provides uniform heat transfer for precise temperature control and energy-efficient processing. The jacket is rated for 90 PSI working pressure and is manufactured with an ASME Section VIII Division 1 U-stamp certification, with National Board (NB) registration and optional CRN certification available for North American market requirements.
Specs
Material: Stainless steel 316 for product contact area, 304 for other parts
Heat transfer surface: Jacket rated at 90 Psi with ASME-U stamped and NB registered. CRN Optional.
Surface treatment: Sanitary internal Ra25- Ra32 finish
Drive: UL listed heavy-duty drive. 4HP & 7.5HP (230/460V, 60HZ, 3P).
Agitator: Coaxial double agitators, Scraping and Paddle type.
Controller: Digital temperature recorder with solenoid steam valve control for precise operation. Uses 230V three-phase power for easy installation.
CIP cleaning: Spray balls included
Discharge: 3” bottom flush mount ball valve for easy drainage. Pneumatic operate optional
Termperature sensor: Flush mount RTD sensor precise temperature monitoring.

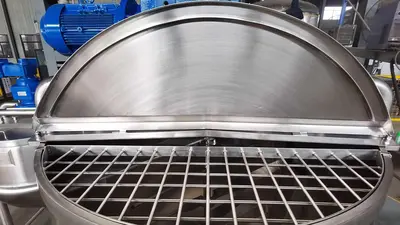

Safety: With safety grate for enhanced safety.
Overcurrent Protection: To prevent electrical damage.
Packing size: 118"*75"*83" 3748lbs
Optionals: Brake wheels, Steam regulating valve Controller
