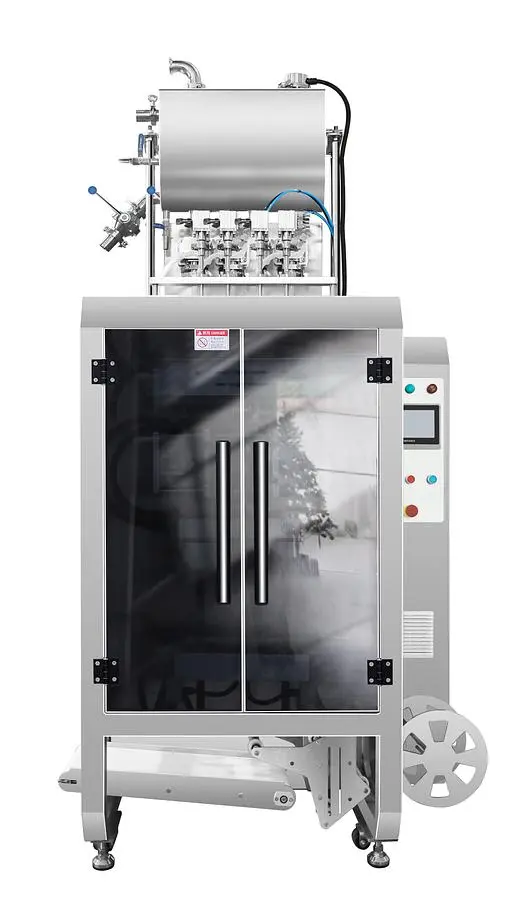

NEW 2025 HONGDA HA-LC900FS&GP04
Overview
Key Features
Fully Automatic Operation: Integrates dosing, pouch forming, sealing, date printing, and cutting in one machine.
Smart Control System: Supports 12 languages for wide user coverage.Intuitive operation with real-time parameter adjustment, production speed & batch display.Stores up to 100 parameter sets for quick product changeovers.Includes self-diagnosis system for fast troubleshooting.

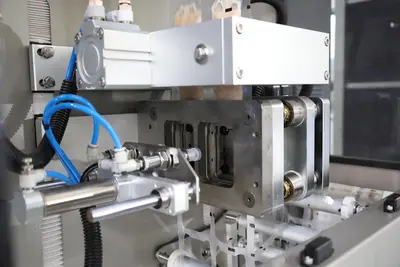

Precision Film Pulling: Servo-driven heat-seal pulling system. Bag length adjustable via touchscreen, no mechanical change needed.
Photoelectric Tracking: Ensures accurate alignment with printed color marks for perfect logo display.
High-Accuracy Filling: Gear pump dosing, ±0.5% accuracy, ideal for liquids and semi-liquids.
Stable Bag Forming: Custom one-piece forming set, easy to clean and maintain.
Independent Temperature Control: PID digital control for horizontal/vertical sealing, ±1°C precision.
Hygienic Design: 304 stainless steel contact parts, easy to clean, GMP & CE compliant.
Safety Features: Auto fault alarms, safety door interlock, CE-standard protection.
Versatile Applications: Ideal for food, pharma, chemical industries—extends shelf life, prevents spoilage.
Specs
Measuring Method: Piston Pump
Bagging speed: 20-80 cuts/min
Film Roll Width: Max. 35.4 in
Bag Width: 2.0 - 3.9 in (50-100mm)
Bag Length: 2.0 - 7.9 in (50-200mm)
Sealing Type: Irregular four-side seal
Cutting Type: Flat cut / Serrated cut
Film Thickness: 2.4–3.9 mil
Power Supply: 200-230Vac,60Hz,13KW
Air Pressure: 87-116 psi (0.6-0.8 MPa)
Compressed air: 1.8–2.1 CFM (50-60L/min)
