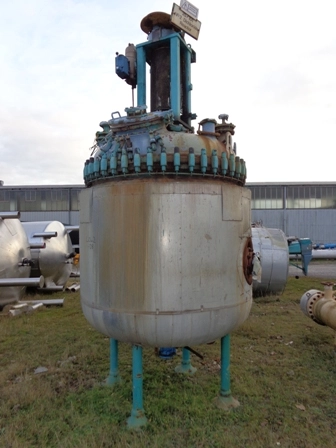

Used Pfaudler model AE2500, approximately 2,500 litre capacity vertical glass lined reactor. Unit has clamped dished top and welded dished bottom heads. Unit measures approximately 1,600mm diameter X 1,275mm straight side. Internal rated 6.6 bar/full vacuum design pressure at -29 to 200°C. Has external mild steel jacket rated 6.6 bar/full vacuum design pressure at -29 to 200 deg.C. Unit has top entry 3-blade retreat curve glass lined agitator with top driven by a 5.5kW, 1440 rpm, 415 volt motor. Unit mounted on legs.
| Capacity | 660.4 gal | 2,500 L |
| Internal pressure | 95.8 PSI | 6.6 bar |
| Jacket Pressure | 95.7 | 95.7 |
| Diameter | 63" | 1,600.2 mm |
| Straight Side | 50.2" | 1,275.1 mm |
| Material of Construction | glass lined, external mild steel jacket | glass lined, external mild steel jacket |
