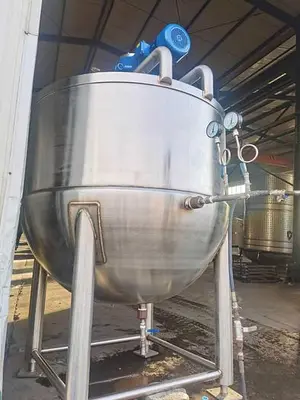

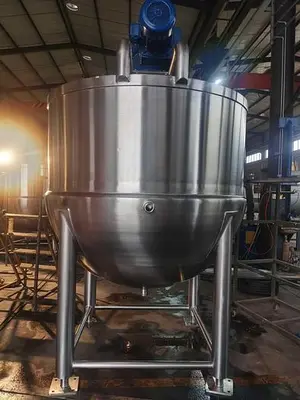

NEW 2024 HONGDA KETTLE
Overview
Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.
*Hemispherical style kettle.
*Sanitary configuration.
*Constructed of stainless steel 316 type product contact areas, 304 for other parts.
*Steam jacket is ASME-U Stamped at 90 Psi and NB registered. Equipped with steam in, condensate out.
*With safety grate and flush mount RTD sensor
*Kettle body to have four legs configuration with flanged feet.
*Kettle body to have 4" center bottom flush mount ball valve discharge.
*Agitation is bridge mounted. scraping surface and paddle type.
*Heavy Duty drive
-12 HP three phase, 230/460V 60HZ UL listed Drive.
-5 HP three phase, 230/460V 60HZ UL listed Drive.
*Tri‐Clamp type additive ports.
*Stainless steel, hinged cover on both sides.

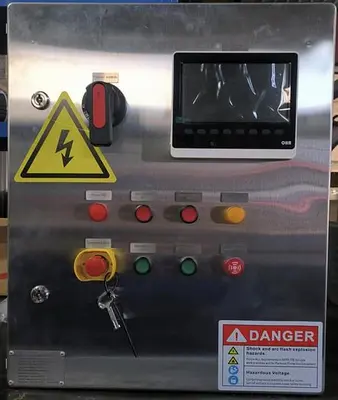

*Controller included, pre-wired using 230V three phase power.
*Digital temperature recorder, solenoid steam valve control feature.
*Safety grate interlock.
*Emergency Stop.
*Overcurrent protection.
Specs
Material: SS316L for food contact area, SS304 for other parts with #4 finish.
Heat transfer surface: Jacket rated at 90 Psi with ASME-U stamped and NB registered. CRN Optional.
Surface treatment: Sanitary internal polished finish
Drive: UL listed drive
Agitator: Coaxial double agitators, Scraping and Paddle type.
Controller: Inlcuded, digital temperature recorder, solenoid steam valve control feature.
CIP cleaning: Spray balls included
Discharge: Flush mount ball valve, Pneumatic operate optional
Termperature sensor: Flush mount RTD sensor
Safety: With safety grate.
Optionals: Brake wheels, Steam regulating valve Controller
