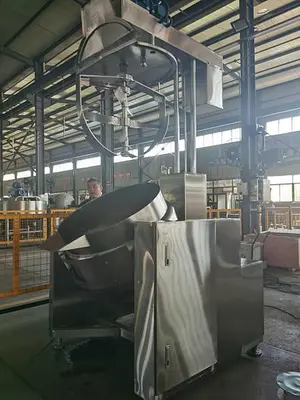

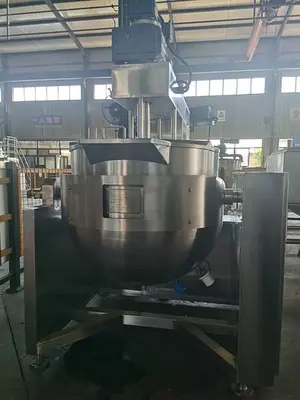

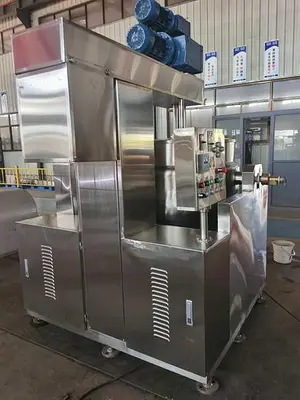

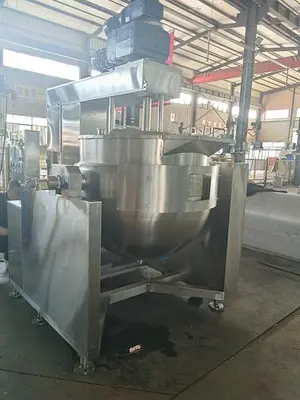

NEW 2023 HONGDA KETTLE
Overview
Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.
*Hemispherical style kettle.
*Sanitary configuration.
*Constructed of stainless steel 304.
*Steam jacket is ASME-U Stamped at 90 Psi and NB registered. Equipped with steam in, condensate out.
*With safety grate and flush mount RTD sensor
*Kettle body to have four legs configuration with flanged feet.
*Kettle body to have 3" center bottom flush mount ball valve discharge.

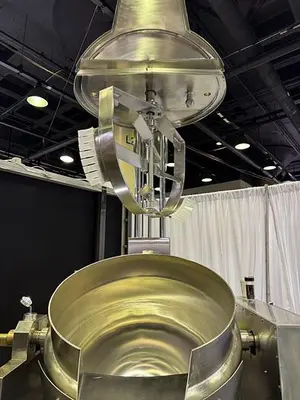

*Agitation is bridge mounted. scraping surface and paddle type.
*Heavy Duty drive
-2 HP three phase, 230V 60HZ UL listed Drive.
-3 HP three phase, 230V 60HZ UL listed Drive.
*Tri‐Clamp type additive ports.
*Stainless steel, hinged cover on both sides.

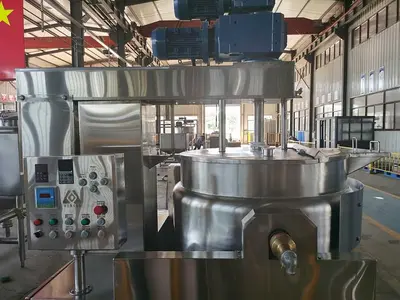

*Controller included, pre-wired using 230V three phase power.
*Digital temperature recorder, solenoid steam valve control feature.
*Safety grate interlock.
*Agitator could be lifting out of the kettle and kettle body tilting for discharge.
*Emergency Stop.
*Overcurrent protection.
Specs
Optionals: Brake wheels, Steam regulating valve Controller
Packing size: 87"*71"*81" 2204lbs
Safety: With safety grate.
Termperature sensor: Flush mount RTD sensor
Discharge: Automtatic tilting for discharge
Controller: Inlcuded, digital temperature recorder, solenoid steam valve control feature.
Agitator: One agitator is scraper blade type, the other is offset Paddle type.
Surface treatment: Sanitary internal polished finish
Heat transfer surface: Jacket rated at 90 Psi with ASME-U stamped and NB registered. CRN Optional.
Stock number: 1
