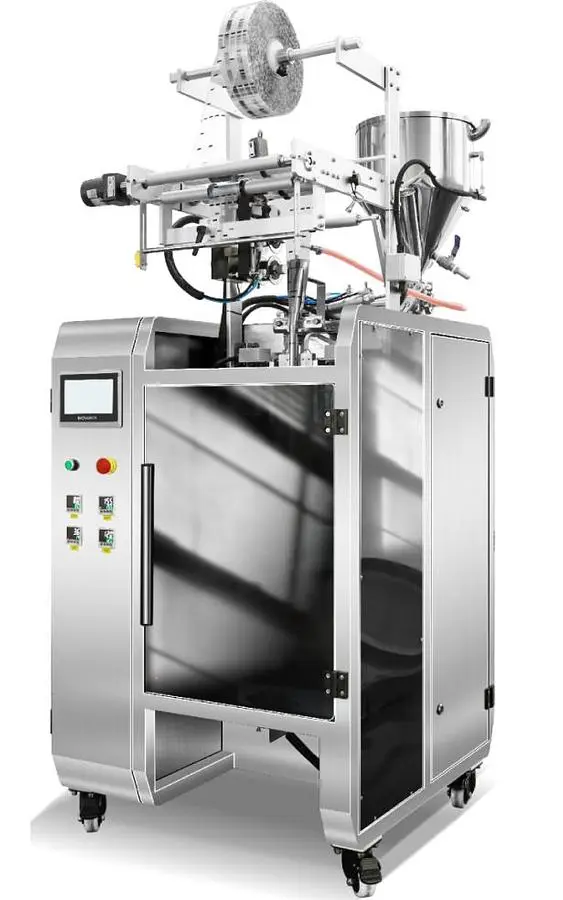

NEW 2025 HONGDA HA-LC200B&LF
Overview
Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.
Product Overview:
Clean & Quiet Operation: Low noise, minimal environmental disruption.
Fully Automated Process: Automatically handles product measurement, bag forming, sealing, coding, and cutting.
Advanced Control System: PLC + servo motor with multilingual touchscreen for intuitive operation and enhanced stability.
User-Friendly Automation: Self-diagnosis and memory for up to 100 product settings.
Servo-driven Film Pulling: Easy adjustment of bag length via touchscreen—no parts change needed, high accuracy.
Photoelectric Tracking: Uses SICK sensors for precise alignment with printed film to ensure complete logo display.
Hygienic Design: Open-frame structure with all contact parts made from food-grade 304 stainless steel. CE-certified with safety interlocks.
Precision Piston Filling: High-speed, cost-effective piston pump with ±0.5% filling accuracy.
Applicable Industries & Products:
Food & Beverage: Sauces, seasonings, hot pot bases, tomato paste, honey, fruit jams (with pulp/solids), etc.
Cosmetics & Personal Care: Creams, facial cleansers, body lotions, shower gels, etc.
Workflow:
Film Loading: Operator mounts packaging film onto air-expansion shaft.
Feeding: Diaphragm pump feeds material automatically based on level sensor detection.
Filling: Piston pump measures and dispenses the product.
Sealing & Cutting: The machine performs vertical sealing (with easy-tear notch and rounded corner cutter) and horizontal sealing (with easy-tear notch).
Final Packaging: Machine completes feeding, dosing, filling, date printing, bag forming, sealing, and cutting—fully automatic.
Specs
Filling Method: Piston Pump
Bag Forming Speed: 20–80 cuts/min
Bag Width: 0.8–3.5 in (20-90mm)
Bag Length: 2.0–7.1 in (50-180mm)
Sealing Type: Back seal
Cutting Options: Round / Flat / Zigzag
Film Roll Width: Max.7.9 in (200 mm)
Film Thickness: 0.002–0.004 in (0.06–0.1 mm)
Power Supply: 200-230Vac,50/60Hz,5KW
Air Pressure: 87–116 PSI (0.6–0.8MPa)
Compressed air: 0.6–0.9CFM (17–25 L/min)
