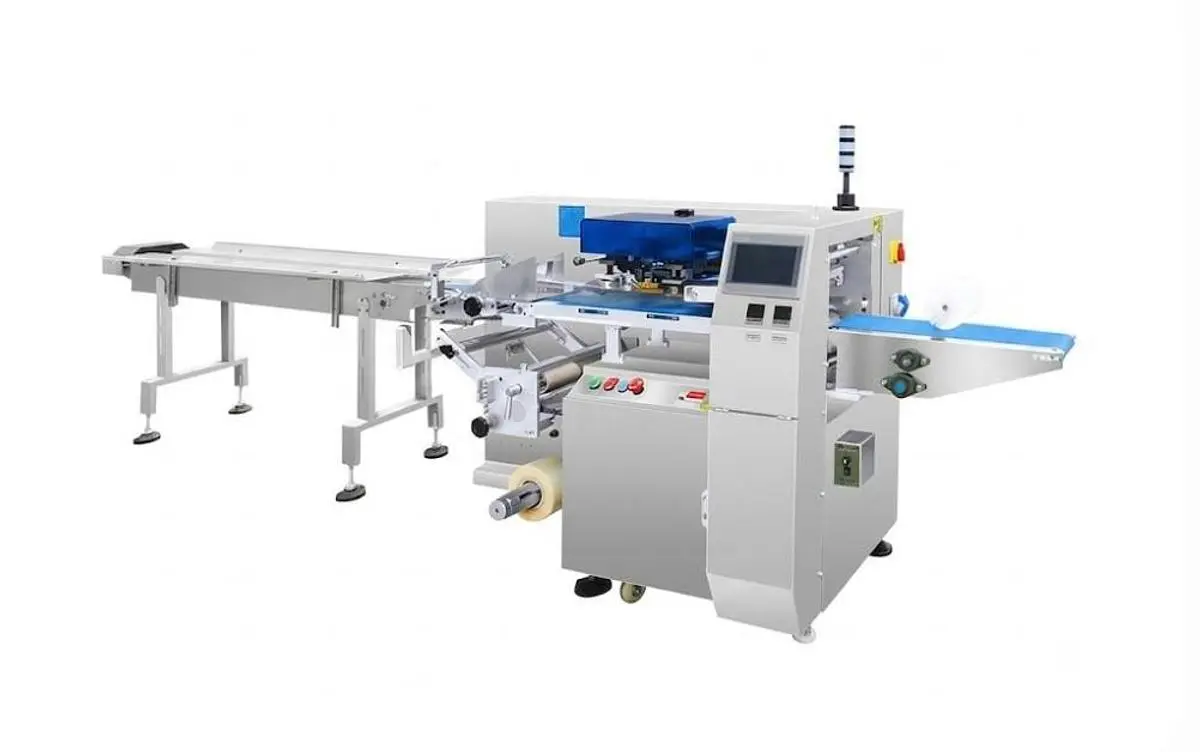

NEW 2025 HONGDA VT-160X

Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.

Product Description
Three Servo Motors and PLC Control: The machine automatically measures and adjusts the cutting position based on the error between the actual cut and color markers.
Touch Screen Adjustment: The cutting position is easily adjusted through the touch screen by inputting the error value.
Compact and User-Friendly Design: The machine structure is compact, with centralized controls for easy operation and quick adjustments.
Software-Controlled Functions: All controls are managed by software, allowing for convenient function adjustments and technical upgrades.
Ideal for Modern Manufacturers: This design is perfect for meeting the development needs of modern manufacturing processes.
Applications
Food: Egg rolls, sausages, squid, bread, instant noodles, moon cakes, preserved fruits, soft candies, and more.
Other Items: Handles, hinges, guide rails, daily necessities, stationery, and other hardware.
Features
Simple Mechanical Structure:The servo system replaces the mechanical CAM, resulting in a simpler structure, smoother operation, and lower noise.
Independent Motor Control:Transverse sealing, longitudinal sealing, and feeding are driven by separate servo motors, allowing for precise and flexible control.
Direct Motor Transmission:Eliminates the need for complex CAM-based mechanical adjustments.
Automatic Speed Synchronization:The system uses motion controllers for automatic tracking and synchronization of the cutter speed—no manual adjustment needed.
Touchscreen Position Control:Material position can be easily adjusted by entering values on the touchscreen, making setup quick and user-friendly.
Anti-Cutting Function:When cutting occurs, the cutter pauses while feeding and sealing continue. The machine operates normally when there’s no cutting issue—no need for manual restarts.
Empty Pack Prevention:If material runs out, the machine suspends sealing operations and automatically resumes when material is available.
Flexible Packing Length Adjustment:Changing material length is simple—just input parameters on the touchscreen without replacing mechanical parts.
Formula Function:Supports multiple preset recipes. When an issue like cutting occurs, the machine adjusts without stopping or needing manual restarts.
Low Operator Requirements:Designed for easy use, minimizing the need for specialized operator skills.

Film Width: 13.8 inches
Bag Length: 4.7-15.7 inches
Bag Width: 2.4-6.3 inches
Product Height: 2 inches
Packaging Rate: 1-80bag/min(Depending on product size)
Power: 110Vac,50/60Hz,3KW (Customized)
Machine Size: 152.4 × 30.9 × 58.1 inches
Machine Weight: 1102.3 lbs
Film Roll Diameter: 12.6 inches
