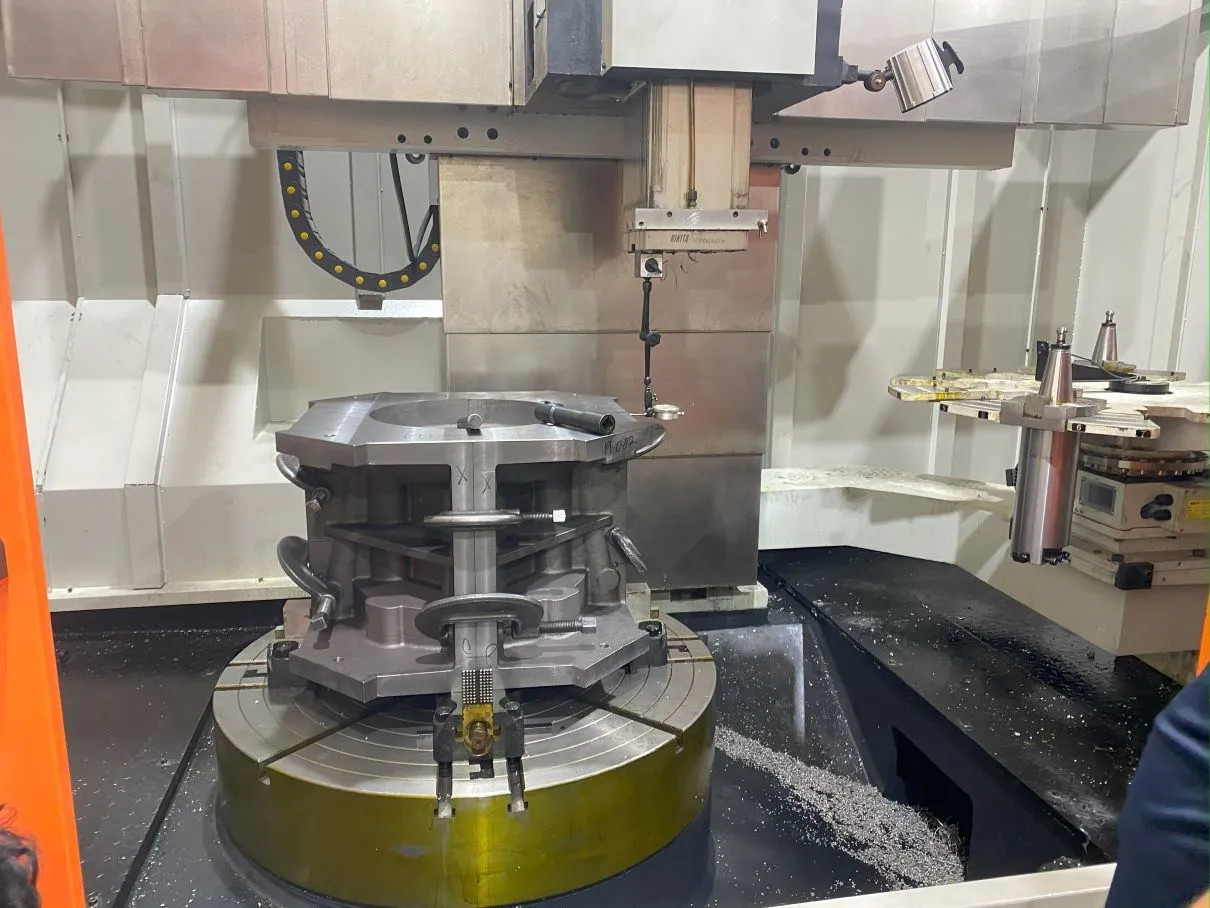

DMTC 1.2m (48") Model CGK5112JD CNC Vertical Turning Lathe. New in 2020
| Table Dia | 39.4" | 1,000.8 mm |
| Swing | 47.2" | 1,198.9 mm |
| Work Ht-U/R | 39.4" | 1,000.8 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 400 RPM | 400 RPM |
| Control | CNC (Fanuc) | CNC (Fanuc) |
DMTC 1.2m (48") Model CGK5112JD CNC Vertical Turning Lathe. New in 2020
SPECIFICATIONS:
No. Item Unit Parameter Remark
1 Manual Chuck Diameter mm 1000
2 Max swing diameter of workpiece mm 1200
3 Max Machining Diameter mm 1200
4 Max Machining Height mm 1000 Optional
5 Max Workpiece Weight Kg 5000
6 Worktable Speed Step Two Gears Stepless ZF
7 Table speed range r/min 400
8 Beam Travel mm 800
9 Max torque of worktable N 30000
10 Feeding series Stepless Stepless
11 Feeding range mm/min 0.1—2000
12 Rest fast moving speed mm/min 5000
13 X axis Feeding Motor Torque Nm 12
14 Z axis Feeding Motor Torque Nm 22
15 Tool Rest Horizontal Travel mm -50--650
16 Tool Rest Vertical Travel mm 800
17 Max cutting force N 2800
18 Main motor kw 22
19 Machine Size（L×W×G） mm 3100×2700×2800
20 Machine Weight（approx） Kg 11000
Item Standard
The roundness of the workpiece 0.01mm
Consistency of machining diameter 0.02mm （on 300mmlength to test）
Flatness of machined workpiece 0.03mm/Ф1000mm
Surface roughness of machined workpiece Ra1.6μm
Circular surface, conic surfaceRa3.2μm
Positioning accuracy X Axis 0.025/1000mm
Z Axis 0.025mm/1000mm
