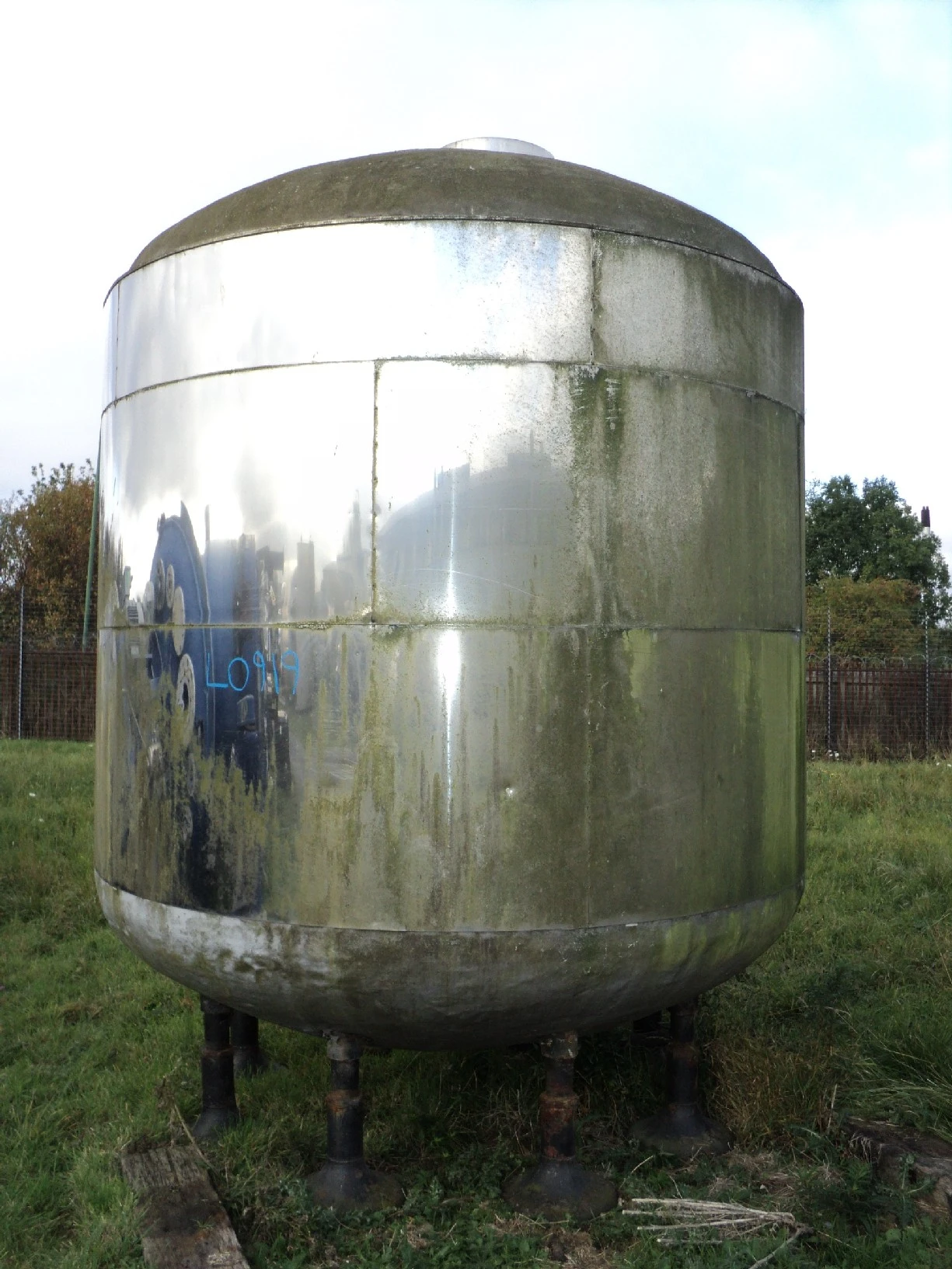

13,450 Litre Stainless Steel Vertical Storage Vessel, 2600mm Dia x 2000mm Straight Side
Overview
Description
Used approximately 13,450 litre (82 UK barrel) vertical stainless steel storage vessel. Unit measures approximately 2600mm diameter X 2000mm straight side. Unit has welded dished top and bottom heads. Internal rated 2.76 bar working pressure. Mounted on (8) carbon steel legs. Unit is currently lagged and clad.
Specifications
| Capacity | 3,553.6 gal | 13,452 L |
|---|---|---|
| Diameter | 8.53' | 2,599.9 mm |
| Height | 6.56' | 1,999.5 mm |
| Type of stainless | Stainless Steel | Stainless Steel |
| Type Of Heads | Welded Dished Top and Bottom | Welded Dished Top and Bottom |
| Vertical/Horizontal | Vertical | Vertical |
| Legs/Lugs/Skirt | 8 | 8 |
| Dimensions | 2600mm*diameter*2000mm*straight side | 2600mm*diameter*2000mm*straight side |
