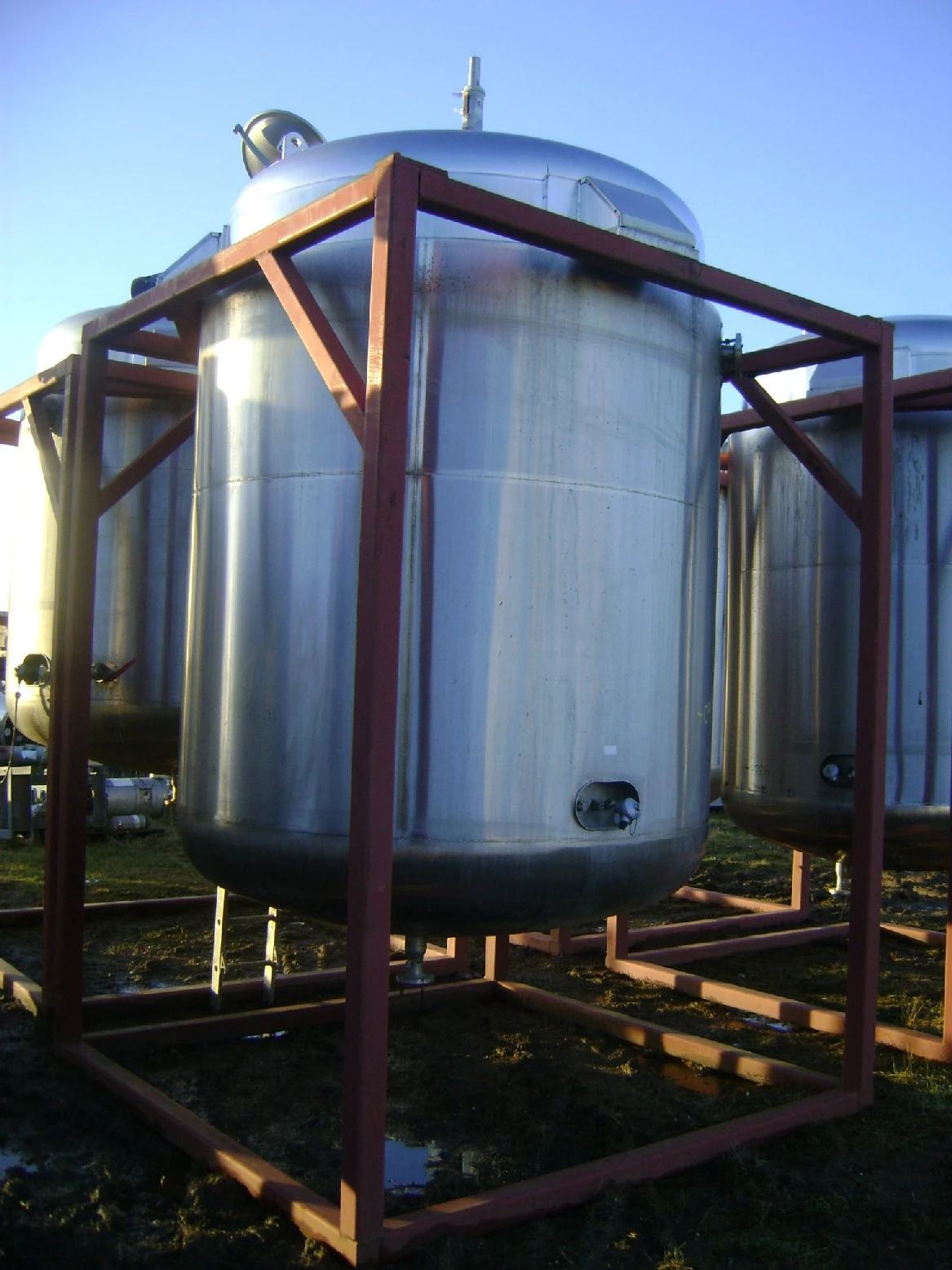

Used Websters approximately 7,410 litre working capacity and 9,727 litre total capacity 316 stainless steel vertical jacketed contra-rotating mixing vessel. Unit measures approximately 2000 mm diameter X 2360 mm straight side. Unit has welded dished top and bottom heads. Internal rated atmospheric pressure at 150 deg.C. External jacket rated 10.34 bar design pressure both at 150 deg C design temperature. Has stainless steel anchor type scrapped wall agitator with contra-rotating 2 tier 4 blade pitched paddle type agitator driven by 2 top mounted 6.8 kW, 415 volt, 15 amp, 142-1420 rpm motors through gearboxes. Unit is mounted on a frame.
| Capacity | 2,571.7 gal | 9,734.9 L |
| Diameter | 6.56' | 1,999.5 mm |
| Height | 7.74' | 2,359.2 mm |
| Type of stainless | 316 | 316 |
| Type Of Heads | Welded dished top and bottom | Welded dished top and bottom |
| Vertical/Horizontal | Vertical | Vertical |
| Legs/Lugs/Skirt | Mounted on a frame | Mounted on a frame |
| Dimensions | 6.56168 ft x 7.74395 ft | 6.56168 ft x 7.74395 ft |
