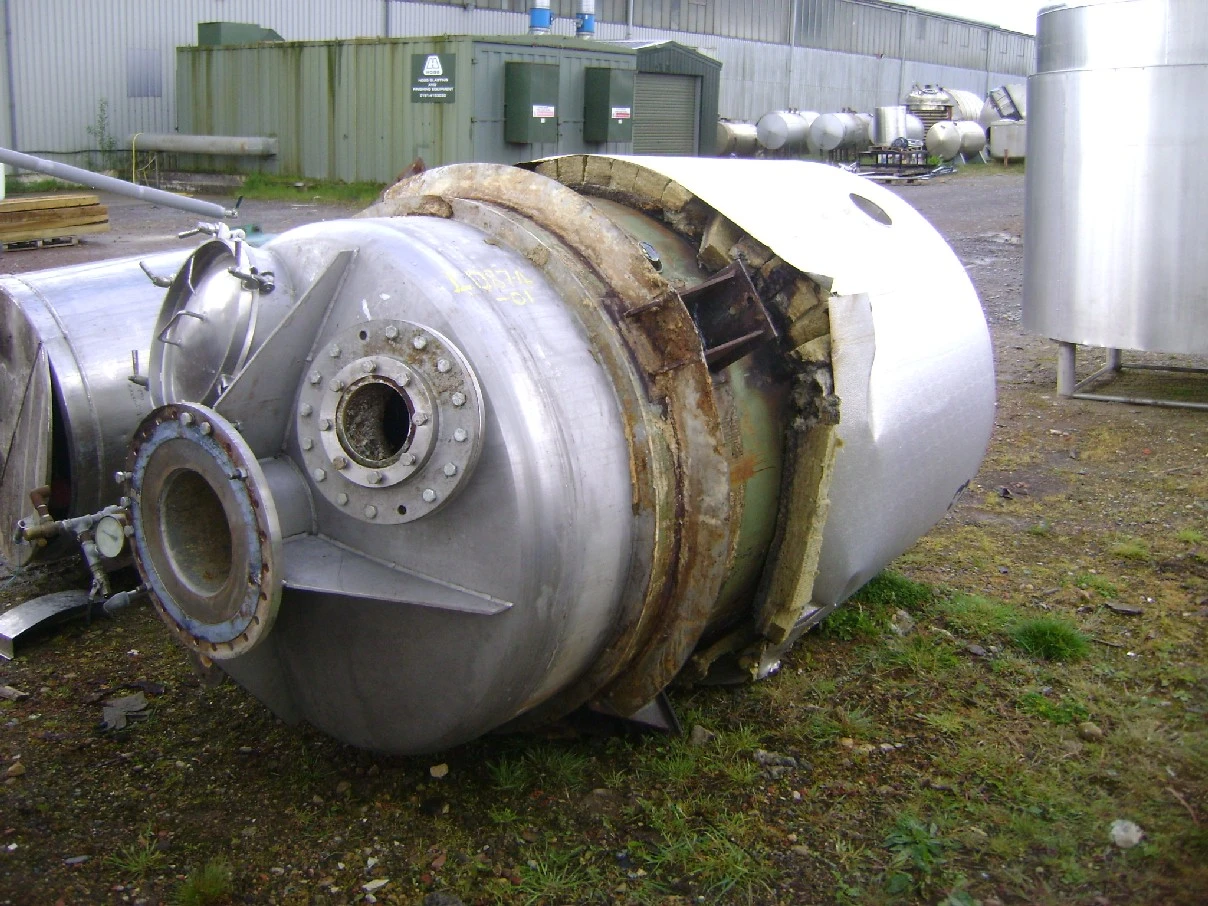

Used IVANS approximately 2,400 litre 304 stainless steel vertical reactor. Unit measures approximately 1300mm diameter X 1800mm straight side. Unit has welded dished top and bottom heads. Internal rated atmospheric pressure. Mild steel jacket rated 2 bar design pressure at 130°C. Unit includes 2-tier 3-blade pitched paddle stainless steel agitator driven by 15kW, 220/360 volt, 49/28.5 amp, 1460 rpm motor. Unit is mounted on (4) side support lugs. Material of construction 304 stainless steel.
| Capacity | 634 gal | 2,400 L |
| Type of stainless | 304 | 304 |
| Internal Pressure | 0 PSI | 0 bar |
| Internal Temperature | 130°F | 54.4°C |
| Jacket Pressure | 29 PSI | 2 bar |
| Diameter | 51.18" | 1,300 mm |
| Straight Side | 70.87" | 1,800.1 mm |
| Type Of Heads | welded dished top and bottom | welded dished top and bottom |
| Legs/Lugs | 4 | 4 |
| Dimensions | 1300mm diameter X 1800mm straight side | 1300mm diameter X 1800mm straight side |
