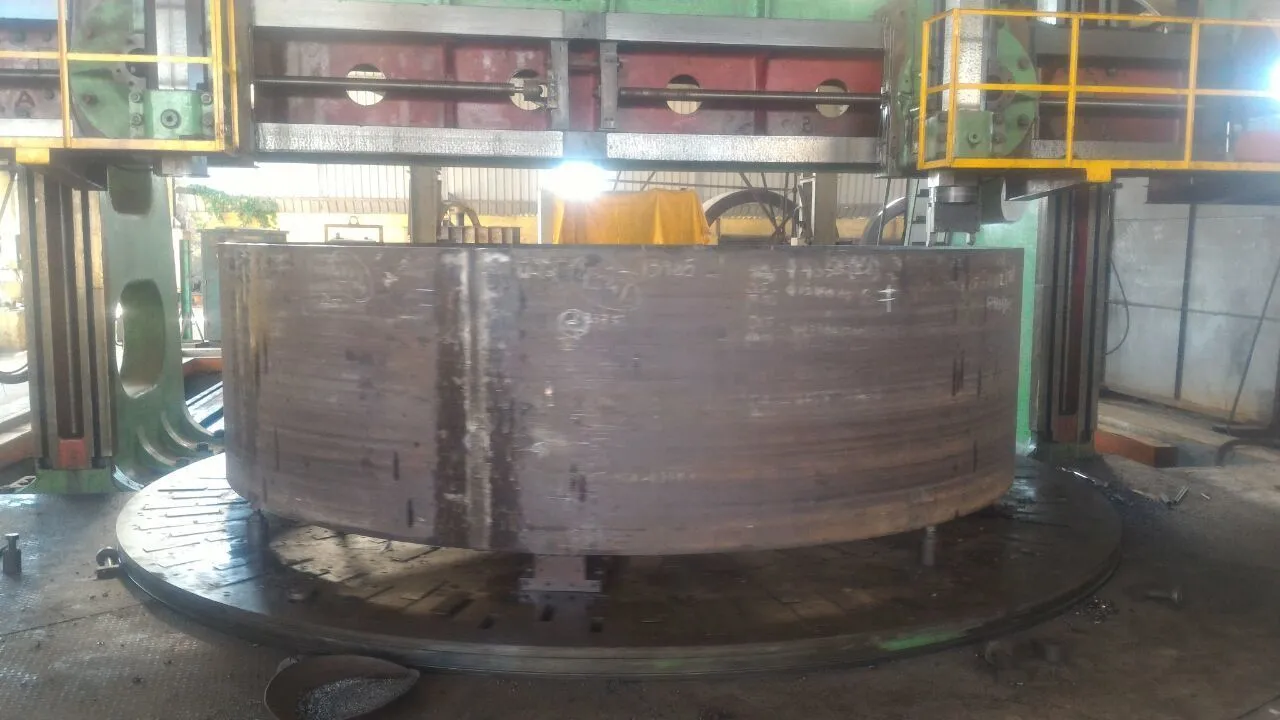

RCD (UK) 13m (512”) CNC Double Column, Double Ram Vertical Turning Lathe. Fanuc CNC controls. Retrofitted in 2012
| Table Dia | 5.5 m | 216.54" |
| Swing | 13 m | 511.81" |
| Work Ht-U/R | 3 m | 118.11" |
| Power | 70 hp | 52.2 kW |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Weight | 341000 lbs | 341000 lbs |
RCD (UK) 13m (512”) CNC Double Column, Double Ram Vertical Turning Lathe. Fanuc CNC controls. Retrofitted in 2012
No. DESCRIPTION DETAILS
1 MACHINE CNC VERTICAL TURNING LATHE
2 MACHINE TYPE DOUBLE COLUMN, DOUBLE RAM
3 CONTROL FANUC CNC
4 TABLE SIZE (DIA) 5,500mm (216.5”)
5 MAX SWING (adjustable column) 13000 MM
6 WORKING HEIGHT UNDER RAIL 3,000mm (120”)
7 RAM STROKE 1,600mm (63”)
8 MACHINE MAKE RCD , ENGLAND
9 YEAR FULLY RETROFITTED IN 2012
10 MOTOR CAPACITY 70 HP
11 LOAD ON TABLE 35 TONS (77,000 Lbs)
12 CONDITION GOOD RUNNING CONDITION
13 Total Machine weight 155 Tons (341,000 Lbs)
14 Distance between column 6m (240”)
15 Max weight job run by present owner 21 Tons (46,200 Lbs)
16 Maximum swing diameter machined by present owner 9.5m (374”)
