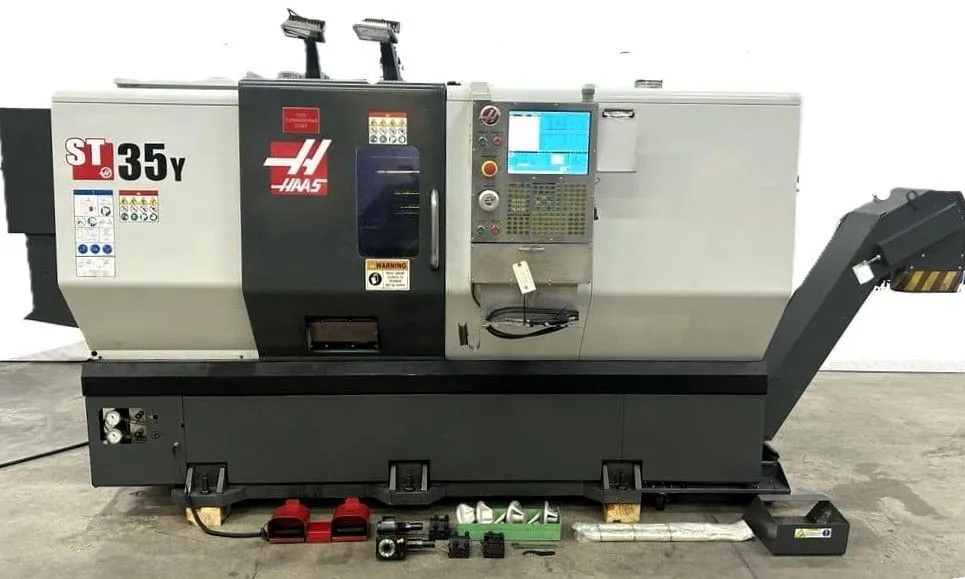

HAAS ST-35Y CNC Turning Center, New in 2016.
Y-Axis live tooling.
12- Station Hybrid BOT/VDI Turret.
Programmable Tailstock.
Haas NextGen Color LCD
| Swing | 31.75" | 806.45 mm |
| Machining Length | 23" | 584.2 mm |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 3,200 RPM | 3,200 RPM |
| Turning Dia | 18" | 457.2 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Control | CNC (HAAS NextGen) | CNC (HAAS NextGen) |
| Weight | 15000 lbs | 15000 lbs |
General Specifications:
Swing Over Bed:
31.75″
Max Cutting Diameter:
12″
Max Cutting Length:
32.5″
Bar Capacity:
4″
Chuck Size:
12″
Spindle Nose:
A2-8
Spindle Bore:
4.62″
Draw Tube Bore:
4.06″
Spindle Speed:
0-3,200 RPM
Spindle Torque:
425ft-lb @ 325RPM
Peak Horsepower:
40HP
X-Axis Travel:
4.0"
Z-Axis Travel:
32.5"
Turret:
12 Station Hybird BOT/VDI
Coolant Capacity:
55 Gallons
Electrical:
220V/3PH
Y-Axis Live Tooling
12-Station Hybrid BOT / VDI Turret
Hydraulic Programmable Tailstock
Haas Next-Gen Color LCD Widescreen Control
Box Way Construction
Hennig Chip Conveyor
Loc-Line Coolant System
40 HP Haas Vector Drive
Servo Amplifiers (X, Y, Z, C-Axis, Live Tooling, Spindle, Tool Turret, Tailstock, Bar Feeder, Auto Door)
Wiper Kit (New-P/N93-1994)
