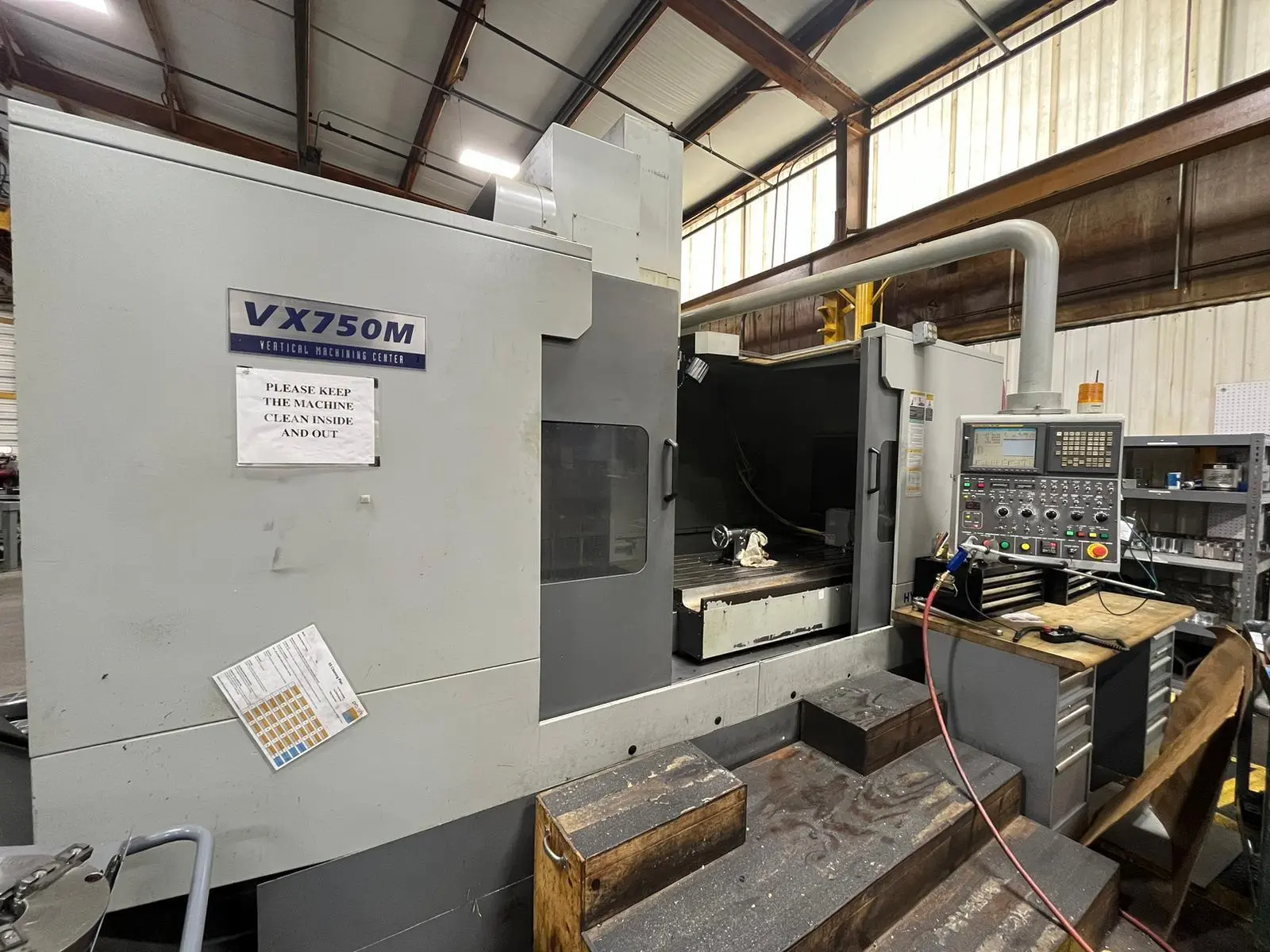

HYUNDAI KIA VERTICAL MACHINING CENTER MODEL VX750M. FANUC 18i-MB CNC CONTROLS. NEW IN 2007
| X | 60.9" | 1,546.9 mm |
| Y | 29.4" | 746.76 mm |
| Z | 28.3" | 718.82 mm |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 30 | 30 |
| Table-W | 27.5" | 698.5 mm |
| Table-L | 70.9" | 1,800.9 mm |
| Control | CNC (Fanuc) | CNC (Fanuc) |
HYUNDAI KIA VERTICAL MACHINING CENTER MODEL VX750M. FANUC 18i-MB CNC CONTROLS. NEW IN 2007
SPECIFICATIONS:
X-AXIS TRAVEL................................................. 61"
Y-AXIS TRAVEL................................................ 29.5"
Z-AXIS TRAVEL................................................ 28.3"
TABLE SIZE...................................................... 70.9" X 27.6"
TABLE TO SPINDLE NOSE (UP - DOWN)...... 7.87" - 36.2"
COLUMN TO SINDLE CENTER....................... 31.1"
SPINDLE TAPER.............................................. 50 CAT
SPINDLE SPEED ............................................ 10,000 RPM
AUTOMATIC TOOL CHANGER....................... 30 POSITIONS
TABLE LOAD CAPACITY................................. 4,400 LBS
SPINDLE POWER.........................,,,,,,,,,,,,,,,,,,. 40/33.5 HP
FLOOR SPACE: 187.1" L x 150.8" W x 136.8" H
APPROXIMATE MACHINE WEIGHT: 28,600
EQUIPPED WITH:
- 4TH AXIS
- FANUC MODEL: 18I-MB CONTROL
- CHIP CONVEYOR
- AUTOMATIC TOOL CHANGER (30 TOOL CAPACITY)
UNDER POWER IN HOUSTON, TEXAS SHOP.
NOTE: THIS VMC IS PRESENTLY NOT OPERATING, POWER SUPPLY NEEDING WORK. THIS ISSUE WILL BE FIXED WHEN THE MACHINE IS SOLD AND PRIOR TO DELIVERY TO NEW CUSTOMER.
HOUSTON, TEXAS LOCATION
