Used

USED Tenez 2,400 Litre

Czech Republic
Since 1932, Perry has been buying and selling high quality used process equipment for the chemical, pharmaceutical, food, plastics and paper industries.
Overview
Stainless Steel Tanks

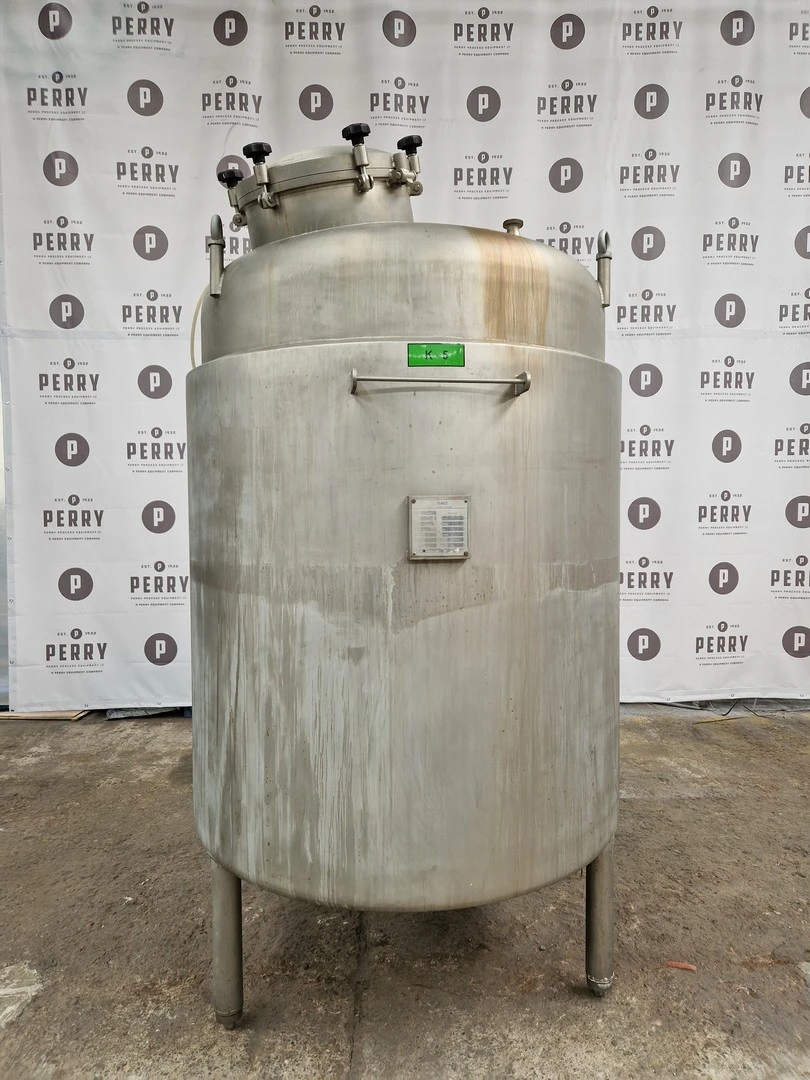

Used Tenez 2400 litre capacity vertical polished stainless steel storage tank. Internal polished Ra ≤ 0.4, vessel measures 1388 mm diameter x 1500 mm straight side x 2300 mm total height. Internal rated -1/3 bar maximum pressure at 135°C maximum internal temperature. Vessel is insulated and cladded by stainless steel plate. Has welded dished top head with inspection manway DN500 and welded dished bottom heads. Central bottom discharge DN50. Unit is mounted on (3) stainless steel legs.

Specs
Capacity
634 gal
2,400 L
Internal Pressure [Y/N]
Yes
Yes
Tank Bottom
Dish
Dish
Diameter
54.646"
1,388 mm
Straight Side
59.055"
1,500 mm
Vertical/Horizontal
Vertical
Vertical
Legs/Lugs/Skirt/Saddle
Legs
Legs
Dimensions
1388 mm x 1500 mm x 2300 mm
1388 mm x 1500 mm x 2300 mm
