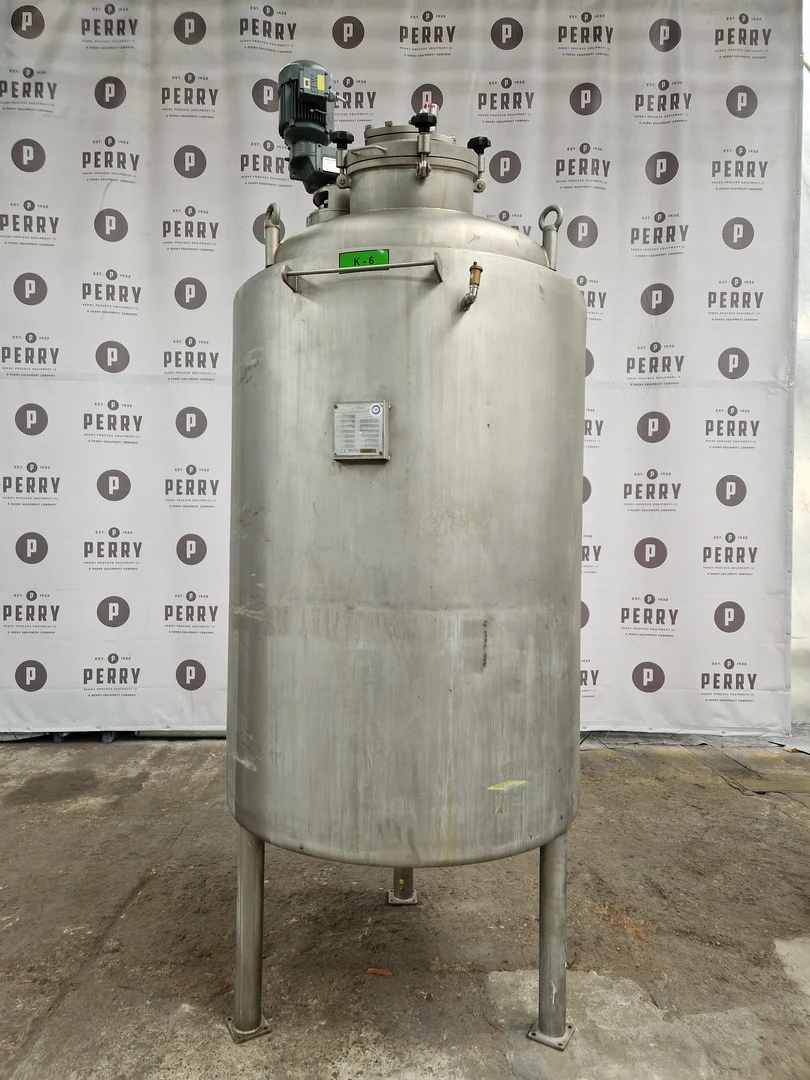

Used Tenez a.s. 1683 total capacity stainless steel 316L polished vertical reactor, working capacity 1600 l. Internal polished Ra ≤ 0.4; internal diameter 1100 mm x 1650 mm straight side x approx 3350 mm total height. Has welded dished top and welded dished bottom heads. Internal rated -1/3 bar maximum pressure at 135°C maximum internal temperature. Stainless steel jacket rated -1/3 bar maximum pressure at 135°C maximum temperature. Jacket is insulated and cladded by stainless steel plate. Has excentric 3-blade agitator rotates 371 rpm and driven through SEW Eurodrive model FAF37A gear box by 1.1 kW, 50Hz, 400V, 1400 rpm electric motor. Has mechanical seal on the shaft. Top head connections include manway DN400, number of connections. Central bottom discharge. Mounted on legs.
| Capacity | 1,683 L | 444.6 gal |
| Type of stainless | 316L | 316L |
| Internal Pressure | 3 bar | 43.5 PSI |
| Internal Temperature | 135°C | 275°F |
| Jacket Pressure | 3 bar | 43.5 PSI |
| Diameter | 1,100 mm | 43.307" |
| Straight Side | 1,650 mm | 64.961" |
| Type Of Heads | Welded dished top and welded dished bottom | Welded dished top and welded dished bottom |
| Legs/Lugs | 3 legs | 3 legs |
| Dimensions | 1100 mm x 1650 mm x approx 3350 mm total height | 1100 mm x 1650 mm x approx 3350 mm total height |
