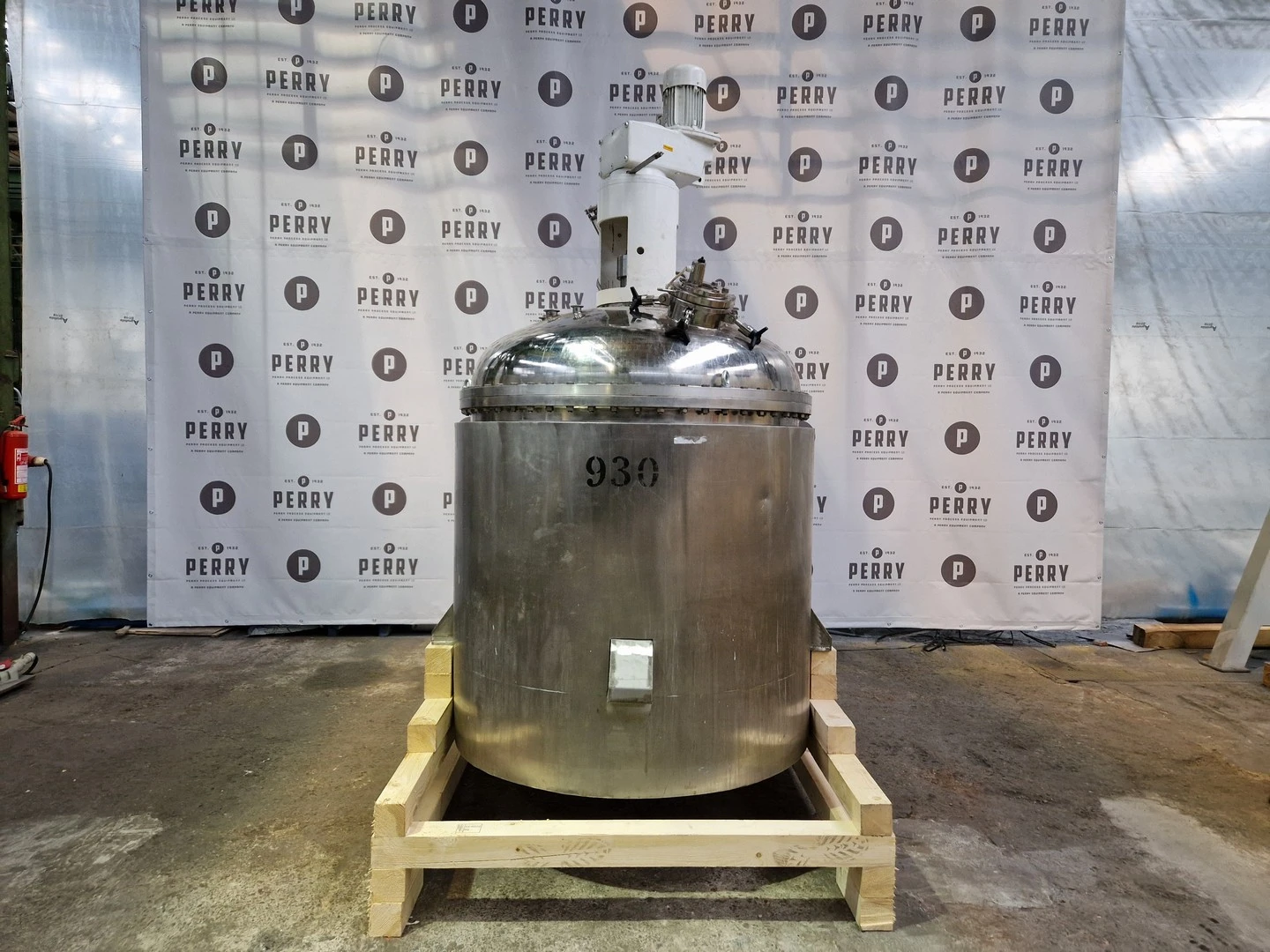

Used Nikro spol. s r.o. (Slovakia) 2013 total capacity polished stainless steel 316 L vertical reactor/stirring vessel. Internal 1300 mm diameter x 1035 mm straight side height. Has bolted dished top and welded dished bottom heads. Internal rated 2 bar maximum pressure and 130°C maximum internal temperature. Stainless steel jacket rated 2 bar maximum pressure and 90°C maximum temperature. Jacket is insulated by black foam rubber and claded by stainless steel plate. Welded frame agitator with teflon wall scrappers rotates 31 rpm and is driven through Nord gear box by 1.5 kW, 400 V, 50 Hz, 1385 rpm electric motor. Has Anga mechanical seal on the shaft. Top head connections include (1) 200mm diameter manway. Central bottom discharge. Mounted on (4) lugs.
| Type of stainless | 316 L | 316 L |
| Internal Pressure | 2 PSI | 0.1 bar |
| Internal Temperature | 130°F | 54.4°C |
| Jacket Pressure | 29 PSI | 2 bar |
| Diameter | 1,300" | 33,020 mm |
| Straight Side | 40.748" | 1,035 mm |
| Type Of Heads | Bolted dished top and welded dished bottom | Bolted dished top and welded dished bottom |
| Legs/Lugs | 4 | 4 |
