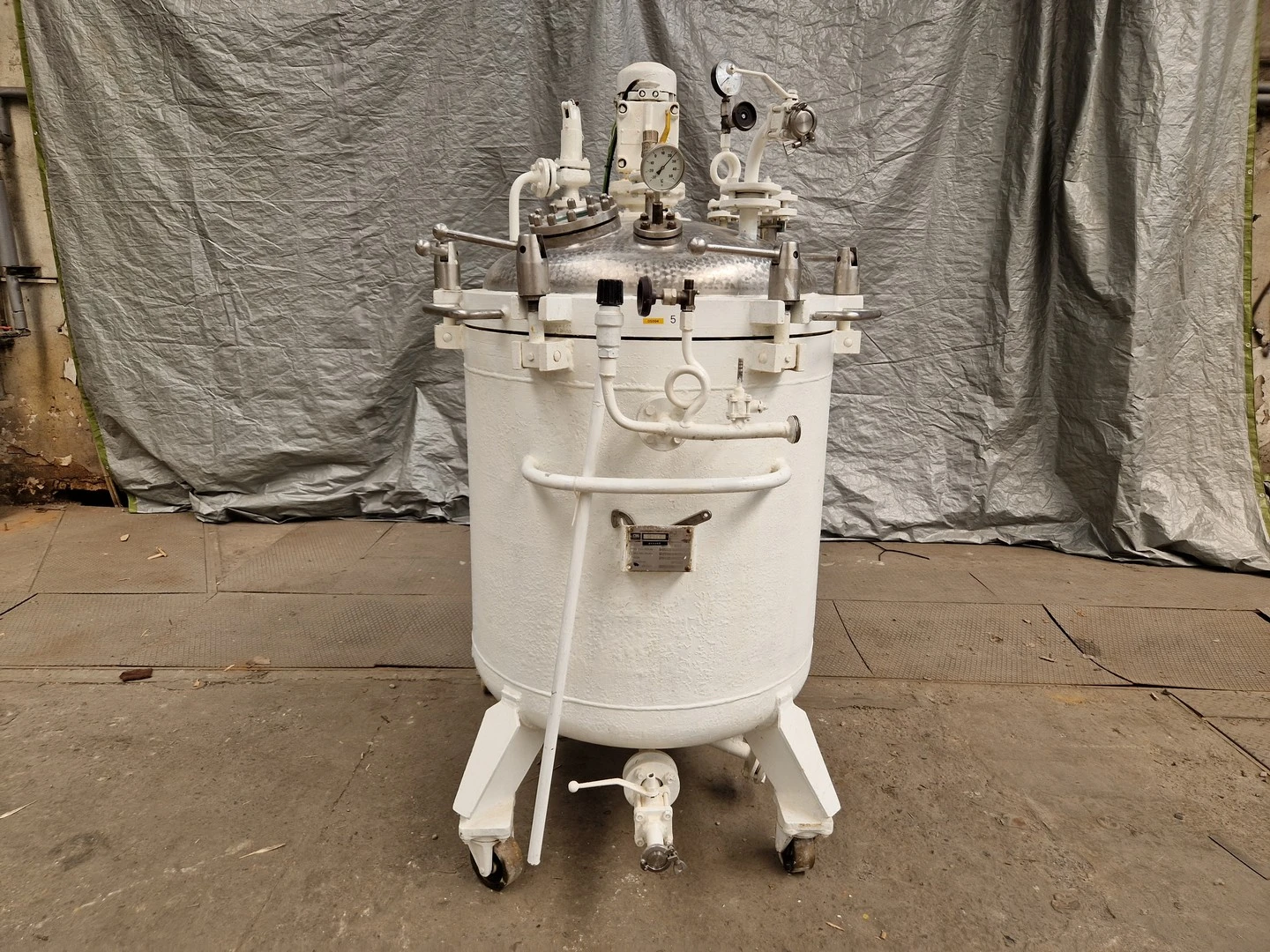

Used ZVU 500 litre stainless steel vertical reactor/mixing vessel. Inner diameter is approximately 890 mm x 900 mm straight side. Has bolted dished top and welded dished bottom heads. Hinged lid with lock. Internal rated 0,196 MPa maximal pressure at 100°C maximal temperature, carbon steel jacket rated 0,098 at 120°C. Turbine type agitator is driven through gearbox by electric motor 380 V. Bottom outlet. Mounted on (4) wheels.
| Capacity | 132.1 gal | 500 L |
| Internal Pressure | 28.4 PSI | 2 bar |
| Internal Temperature | 212°F | 100°C |
| Jacket Pressure | 14.2 PSI | 1 bar |
| Diameter | 35.04" | 890.02 mm |
| Straight Side | 35.4" | 899.16 mm |
| Type Of Heads | bolted dished top and welded dished bottom | bolted dished top and welded dished bottom |
| Legs/Lugs | 4 | 4 |
| Dimensions | 890 mm x 900 mm | 890 mm x 900 mm |
