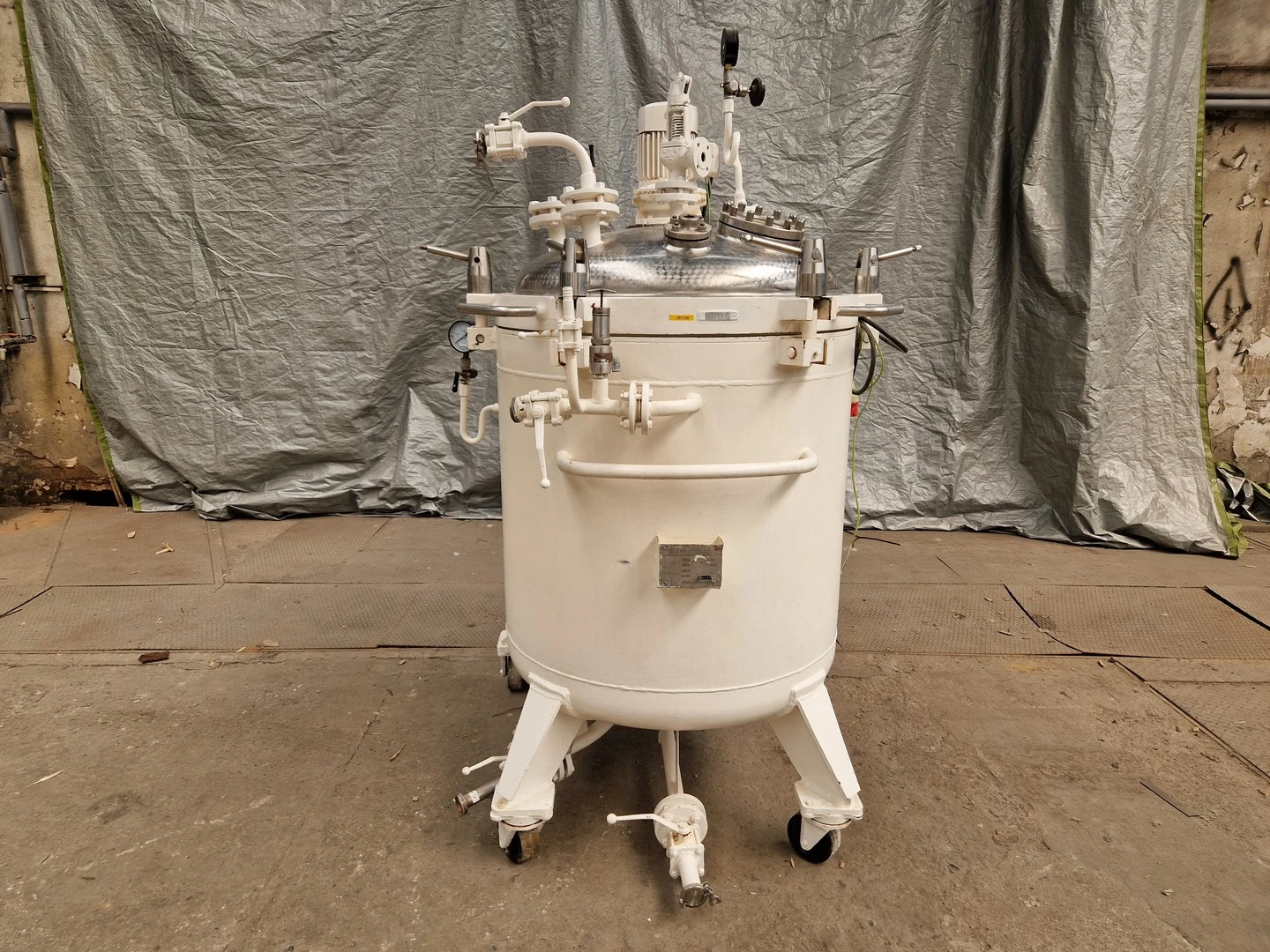

Used ZVU 500 litre stainless steel vertical reactor/mixing vessel. Inner diameter is approximately 890 mm x 900 mm straight side. Has bolted dished top and welded dished bottom heads. Hinged lid with lock. Internal rated 4.5 kp/cm2 maximal pressure at 80°C maximal temperature, carbon steel jacket rated 3.5 kp/cm2 at 147°C. Agitator is driven through gearbox by electric motor 380 V. Bottom outlet. Mounted on (4) wheels.
| Capacity | 132 gal | 499.7 L |
| Type of stainless | Stainless steel | Stainless steel |
| Internal Pressure | 64.6 PSI | 4.5 bar |
| Internal Temperature | 80°F | 26.7°C |
| Jacket Pressure | 49.8 PSI | 3.4 bar |
| Diameter | 35.039" | 889.99 mm |
| Straight Side | 35.43" | 899.92 mm |
| Type Of Heads | Bolted dished top and welded dished bottom | Bolted dished top and welded dished bottom |
| Legs/Lugs | 4 wheels | 4 wheels |
