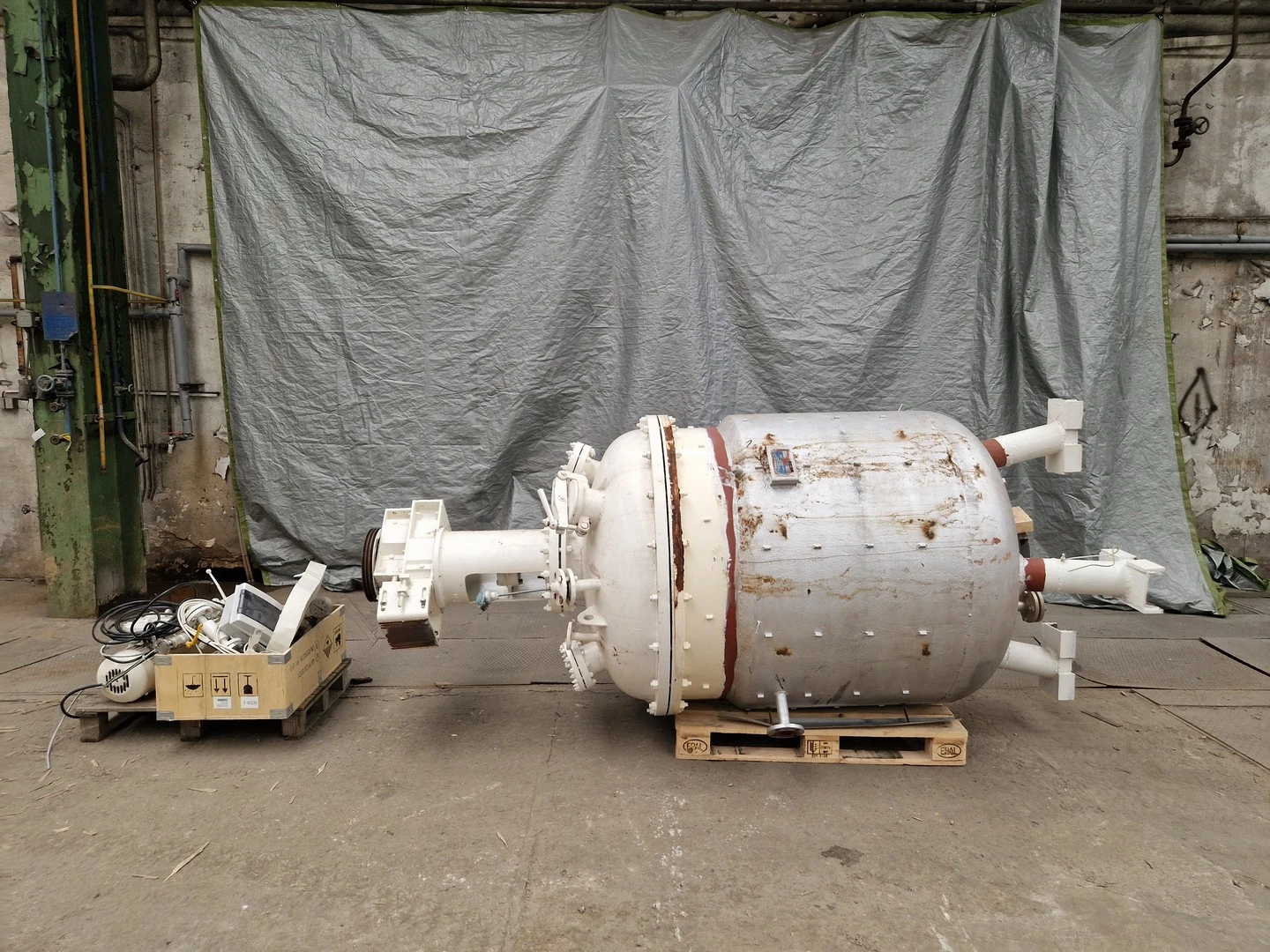

Used FEROX 1000 litre stainless steel vertical reactor/mixing vessel. Outer diameter is approximately 1340 mm x 1200 mm straight side / 3150 mm total height. Has bolted dished top and welded dished bottom heads. Internal rated 2.5 bar maximal pressure at 200°C maximal temperature, carbon steel jacket rated 6 bar at 200°C. Frame agitator is driven through pulley and gearbox by electric motor 4 kW, 1420 rpm, 380 V. Central bottom outlet with diameter approximately 75 mm.
| Capacity | 1,000 L | 264.2 gal |
| Type of stainless | N/A | N/A |
| Internal Pressure | 36.3 PSI | 2.5 bar |
| Internal Temperature | 200°F | 93.3°C |
| Jacket Pressure | 87 PSI | 6 bar |
| Diameter | 52.75" | 1,339.8 mm |
| Straight Side | 47.244" | 1,200 mm |
| Type Of Heads | Bolted dished top and welded dished bottom | Bolted dished top and welded dished bottom |
| Legs/Lugs | N/A | N/A |
