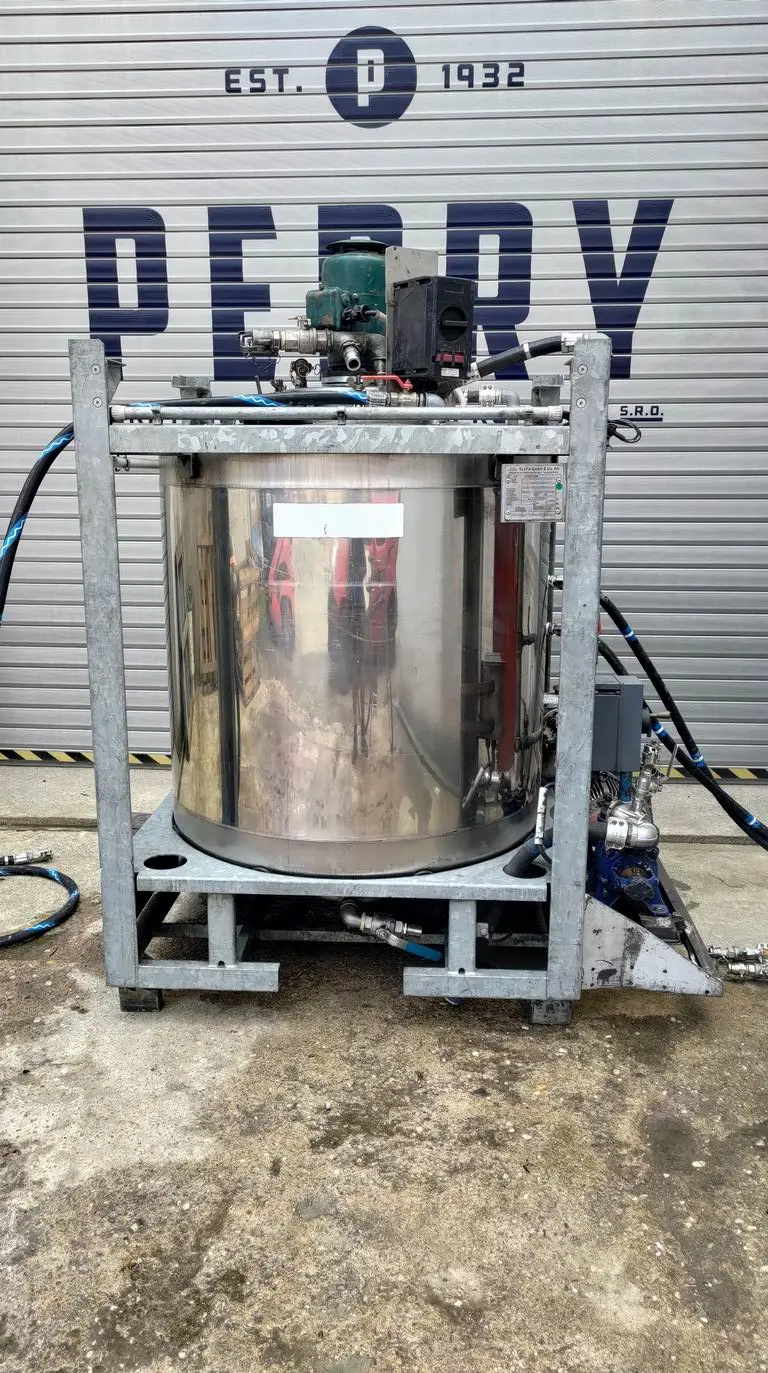

Used Blefa approximately 1000 litre stainless steel 1.4301 storage/mixing vertical tank. Unit measures approximately 1000 mm diameter x 1000 mm straight side x 1200 mm total height. Has welded dished top and bottom heads. Has top manhole with diameter approx. 400 mm where is mounted central propeler agitator (3 proplelers in different levels). Has a side bottom discharge, approx. diameter 40 mm. Suitable for vacuum max. 0,33 bar. Mounted on zinc coated carbon steel frame for easy manipulation by truck. Includes SIHI AKHQ 3601 vacuum pump driven via Siemens 2,0kW/50Hz/380V/3ph/1425 rpm el. motor. Also include spray balls and piping. Transport dimension: 1 100 x 1 550mm - 2000 mm weight.
| Capacity | 264.2 gal | 1,000 L |
| Diameter | 3.28' | 1,000 mm |
| Height | 3.94' | 1,200 mm |
| Type of stainless | 1.4301 | 1.4301 |
| Type Of Heads | welded dished top and bottom | welded dished top and bottom |
| Vertical/Horizontal | vertical | vertical |
| Legs/Lugs/Skirt | zinc coated carbon steel frame | zinc coated carbon steel frame |
| Dimensions | 1100mm x 1550mm - 2000mm | 1100mm x 1550mm - 2000mm |
