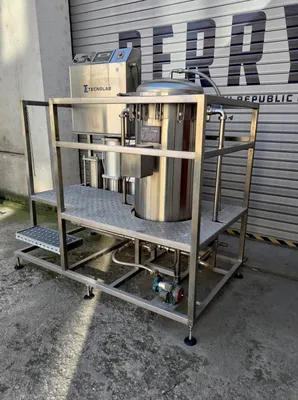

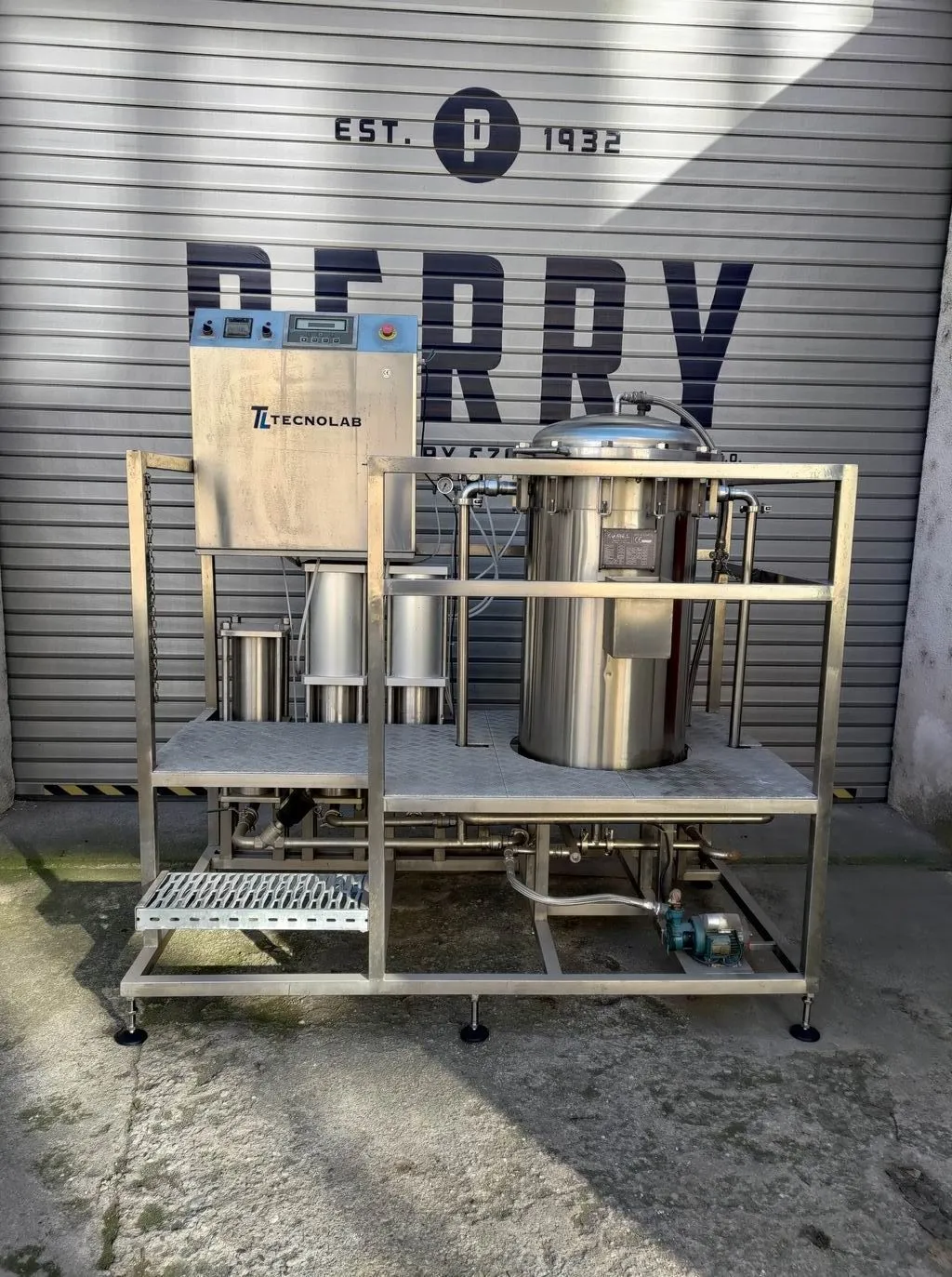

Used Technolab Timatic model Maxi 200 stainless steel extraction unit designed to extract active ingredients from medicinal plants and aromatic herbs. They can handle both fresh and dried material: flowers, leaves, buds, fruit, roots, bark, stems, seeds, medicinal plants, aromatic herbs.

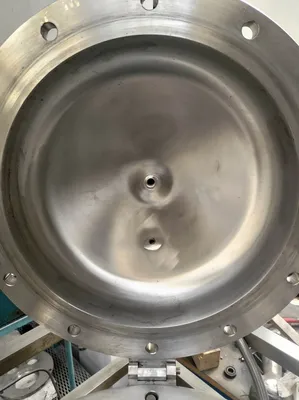

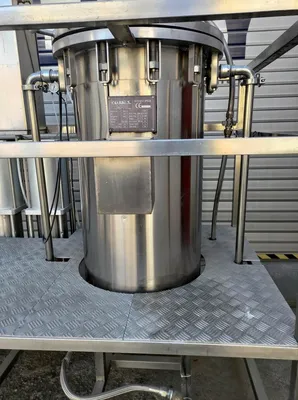

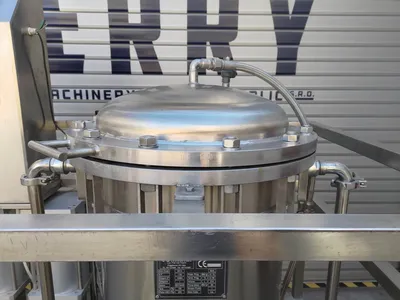

Unit conists of: stainless steel pressure tank/vessel (extraction chamber) total capacity 240 litre, working capacity 200 litre, has welded dished bottom and clamp dished top head. Internal diameter 490 mm x 950 mm streight side (1030 mm deepness). Vessel rated 0-10 bar max. pressure at 0-90°C max. temprerature.

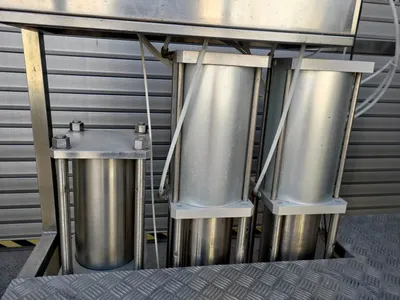

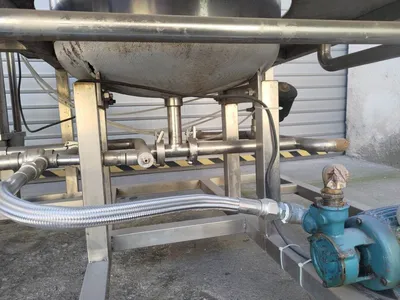

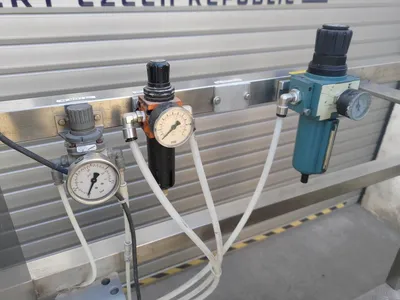

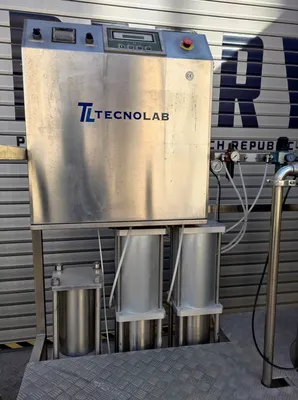

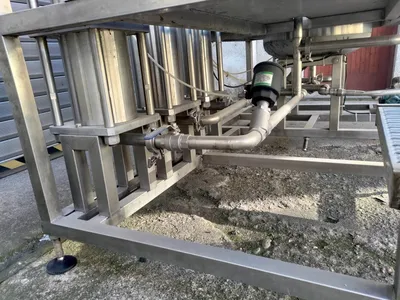

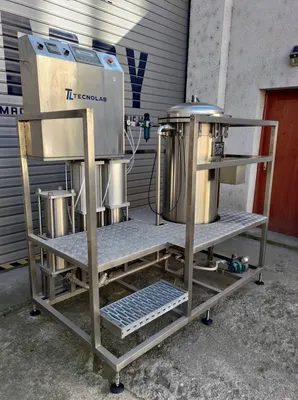

Acitve and passive pneumatic piston, air connection, suction pump and control panel. All mounted on stainless steel frame. New 2010.
| Capacity | 52.8 gal | 200 L |
| Type of stainless | Stainless steel | Stainless steel |
| Internal Pressure | 145 PSI | 10 bar |
| Internal Temperature | 194°F | 90°C |
| Diameter | 19.291" | 489.99 mm |
| Straight Side | 37.402" | 950 mm |
| Type Of Heads | Welded dished bottom and clamp dished top head | Welded dished bottom and clamp dished top head |
