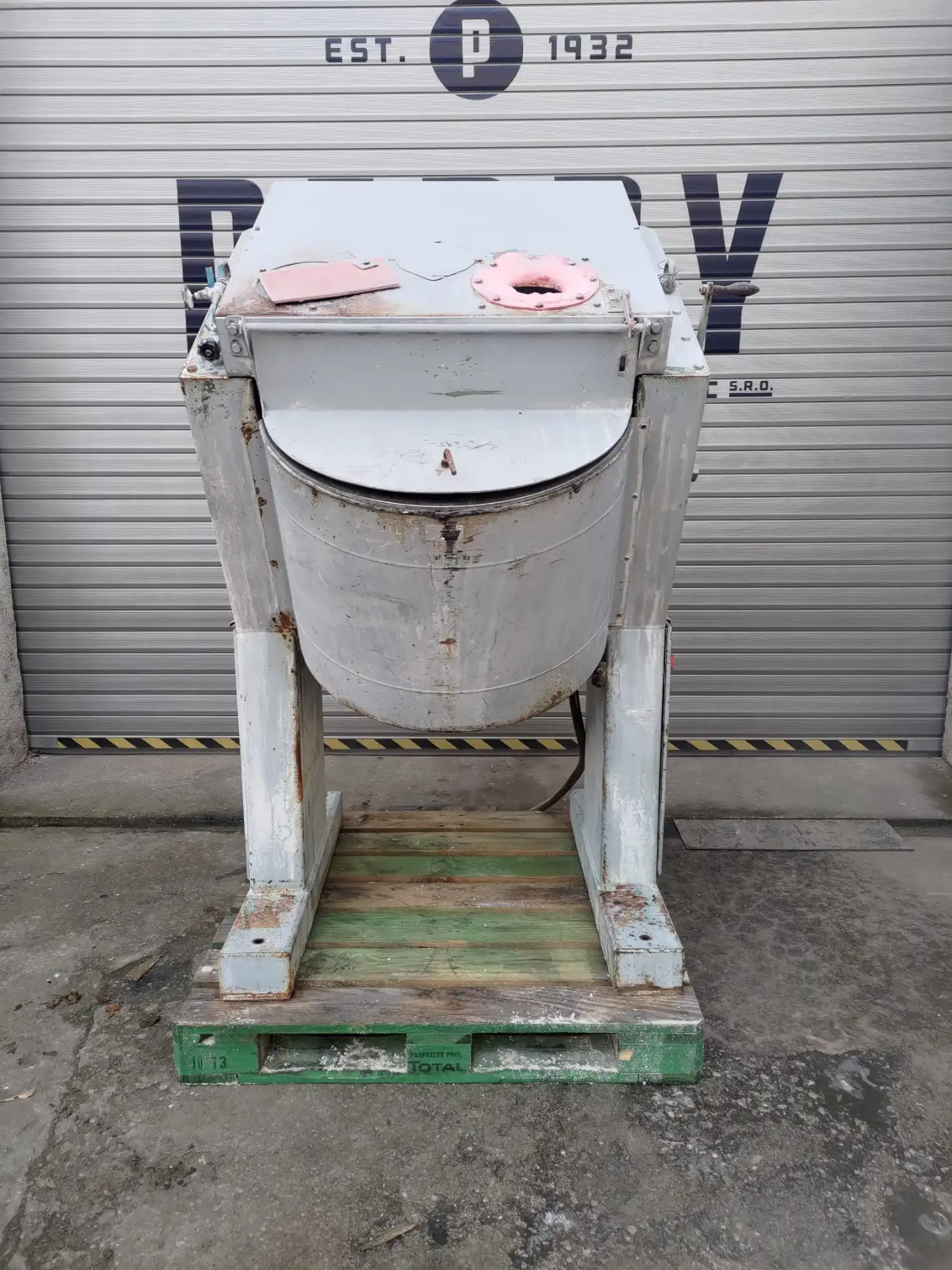

Used Gustav Eirich mixer granulator type R7. Stainless steel rotary cylindrical inclined mixing bowl with approx. 120 ltr total capacity and approx. 50l working capacity , diameter 690mm and 370 mm high multiple type of mixing tool. Agitator driven by el. Motor 5,5 kW/50 Hz/20A/1440 RPM and bowl driven by el. motor 1,5 kW/50Hz/3,6A. Manualy operated bottom discharge diameter 290mm. Mounted on carbon steel frame. Included Strt/Stop panel and spare parts.
Transport dimension: 1,2 x 1,4m - 1,9m high.
Weight: 1100 kg
| Bowl Volume (Capacity) | 31.7 gal | 120 L |
| Motor Power | 5.5 hp | 4.1 kW |
| Material of construction | Stainless steel | Stainless steel |
| Jacket | No | No |
| Blade style | multiple type of mixing tool | multiple type of mixing tool |
| Cooler | No | No |
| Jacket (Y/N) | N | N |
| Style Blades | Agitator | Agitator |
| With Cooler | N | N |
| With Automatic Control Panel | Yes | Yes |
| With Cooling Ring | N | N |
| One Piece Base | N | N |
| Dimensions | 1.2 x 1.4m - 1.9m high | 1.2 x 1.4m - 1.9m high |
| Weight | 1100 kg | 1100 kg |
