USED 2001 PRIMA PPS 200

Overview
Manufacturer:
PRIMA
Model:
PPS 200
Year:
2001
Stock #:
H4052-3
Description

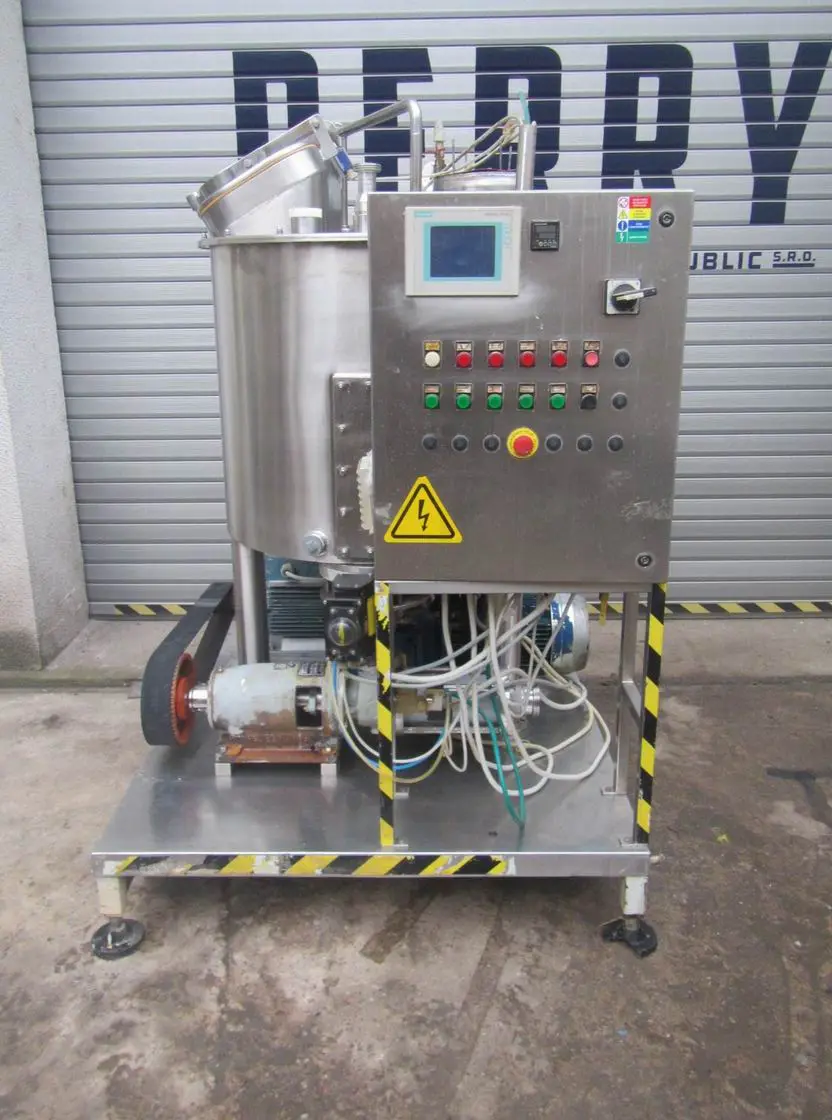

Used PRIMA model PPS 200 approximately 400 litre capacity stainless steel vertical mixing vessel. Tank has diameter approx. 840 mm x 750 mm height. The lid has (1) manhole 310 mm x 430 mm and (6) inlets. Unit has bottom entry agitator suitable for viscous products driven by el. motor. Agitator is sealed with mechanical seal. Vessel has (3) stainless steel legs and stands on stainless steel frame. Includes screw pump which is connected with vessel bottom outlet. The pump is belt driven el. motor 5.5 kW. Also includes control panel with touchscreen. New 2001.

Specifications
Capacity105.7 gal400 L
Diameter2.75'838.54 mm
Height2.46'749.99 mm
Type of stainlessStainless steelStainless steel
Type Of HeadsManholeManhole
Vertical/HorizontalVerticalVertical
Legs/Lugs/Skirt33
Dimensions840 mm x 750 mm840 mm x 750 mm
