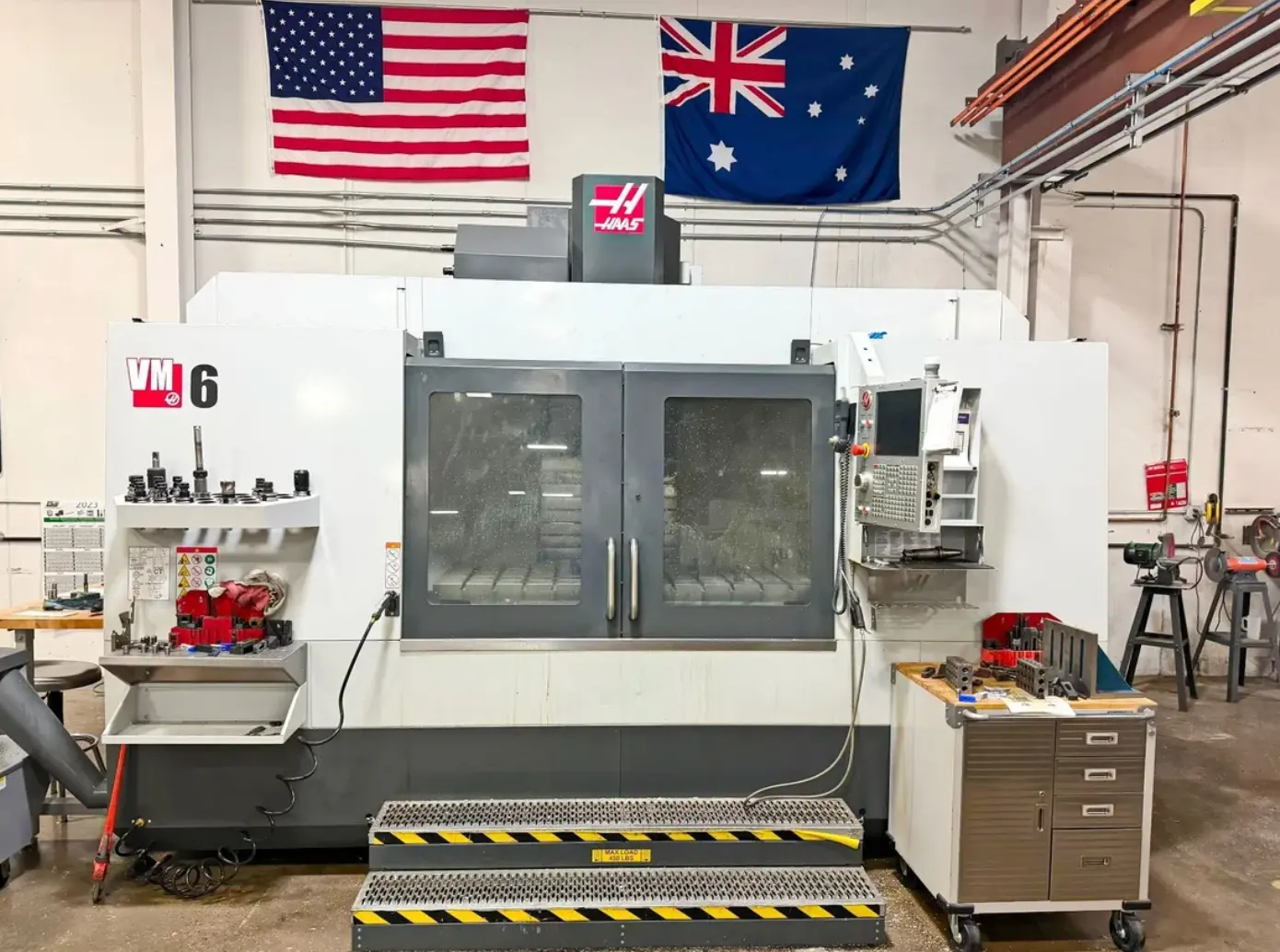

USED 2018 HAAS VM-6

Ohio, United States
1,568Listings|435Followers
Overview
Vertical Machining Centers

Used Vertical Machining Center, used, X: 64", Y: 32", Z: 30". Features high-speed machining, 4th axis ready, 12,000 RPM spindle, 30 hp. Equipped with through spindle coolant, rigid tapping, Ethernet/WiFi, table air supply, and more.

Specs
X
64"
1,625.6 mm
Y
32"
812.8 mm
Z
30"
762 mm
Power
30 hp
22.4 kW
RPM
12,000 RPM
12,000 RPM
# ATC
30
30
Taper
CAT 40
CAT 40
Table-W
64"
1,625.6 mm
Table-L
28"
711.2 mm
# Axis
3
3
Control
CNC (HAAS)
CNC (HAAS)
Dimensions
195" X 105" X 130"
195" X 105" X 130"
Weight
24,000 lb
24,000 lb

MAX TABLE LOAD 4,000 lb
DISTANCE SPINDLE NOSE TO TABLE 34"
RAPIDS (X/Y/Z) 600 in/min.

Equipped With

Through spindle coolant
4th axis ready
High-speed machining
Programmable coolant nozzle
24-station side-mount tool changer
Rigid tapping
Automatic air gun
Table air supply
Window air blast
Color remote jog handle
Haas connect remote monitoring
Ethernet / WiFi
Chip auger
Full-table modular fixture / grid tooling plate
Assorted tool holders, collets, hold-downs
