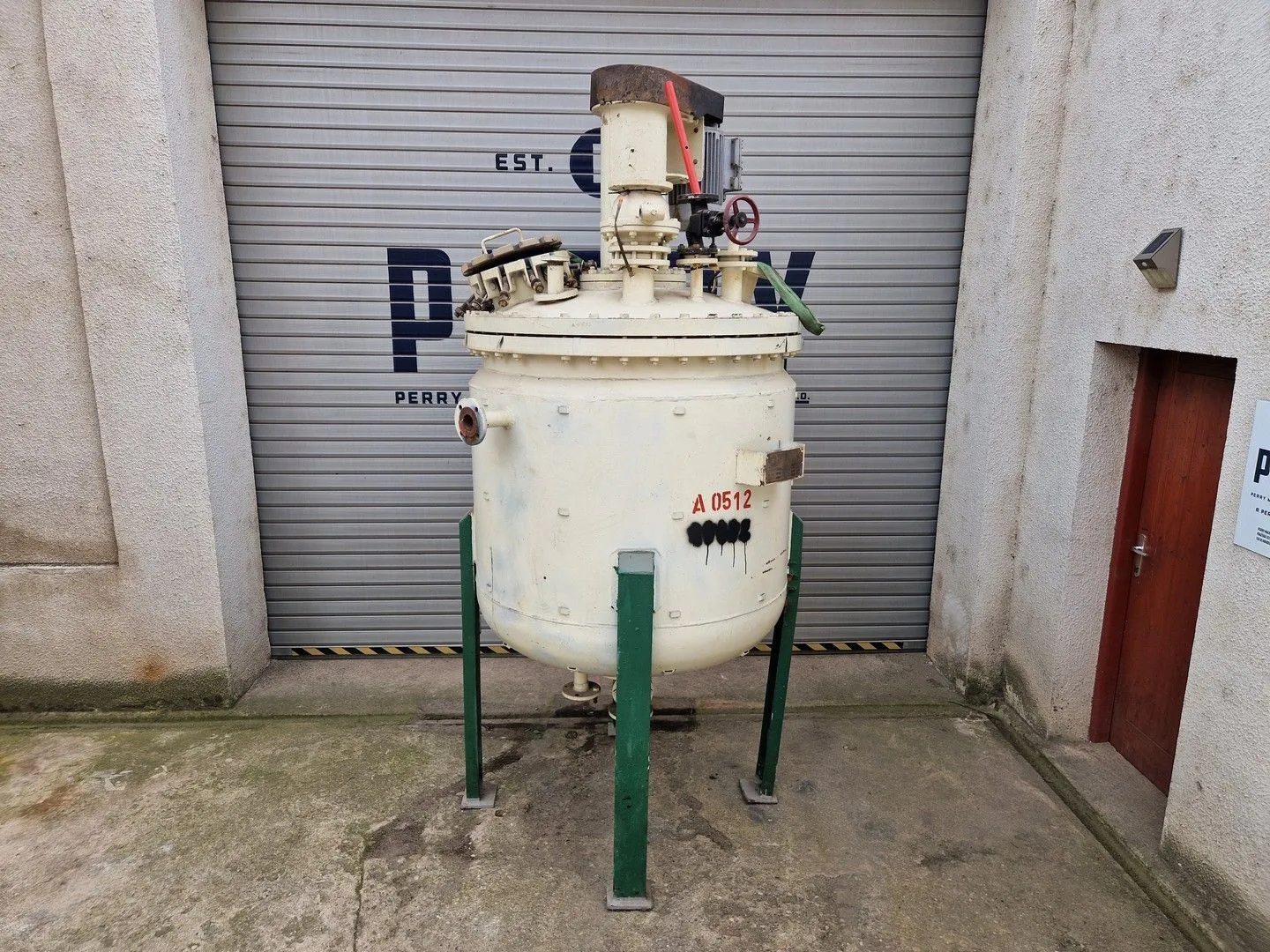

Used Kralavopolska Strojirna (Czech Rep.) 1 400L nominal capacity stainless steel (AISI 321) vertical reactor. Has bolted dished top and welded dished bottom heads. Vessel inside diameter 1200 mm and internal rated 6 bar maximum pressure and 100°C maximum internal temperature. Carbon steel jacket rated 6 bar maximum pressure, and 150°C maximum temperature. Central bottom discharge. 3-blade agitator driven through gear box by 1,5kW/50HZ/380V/690rpm EL. motor. Mounted on (4) legs. Includes manually operated valve.
| Capacity | 1,400 L | 369.8 gal |
| Type of stainless | AISI 321 | AISI 321 |
| Internal Pressure | 6 bar | 87 PSI |
| Internal Temperature | 100°C | 212°F |
| Jacket Pressure | 6 bar | 87 PSI |
| Diameter | 1,200 mm | 47.244" |
| Type Of Heads | Bolted dished top and welded dished bottom | Bolted dished top and welded dished bottom |
| Legs/Lugs | 4 legs | 4 legs |
