USED DIESSEL GMBH & CO. 500 LITRE

Overview
Manufacturer:
DIESSEL GMBH & CO.
Model:
500 LITRE
Stock #:
B0133-16U
Description

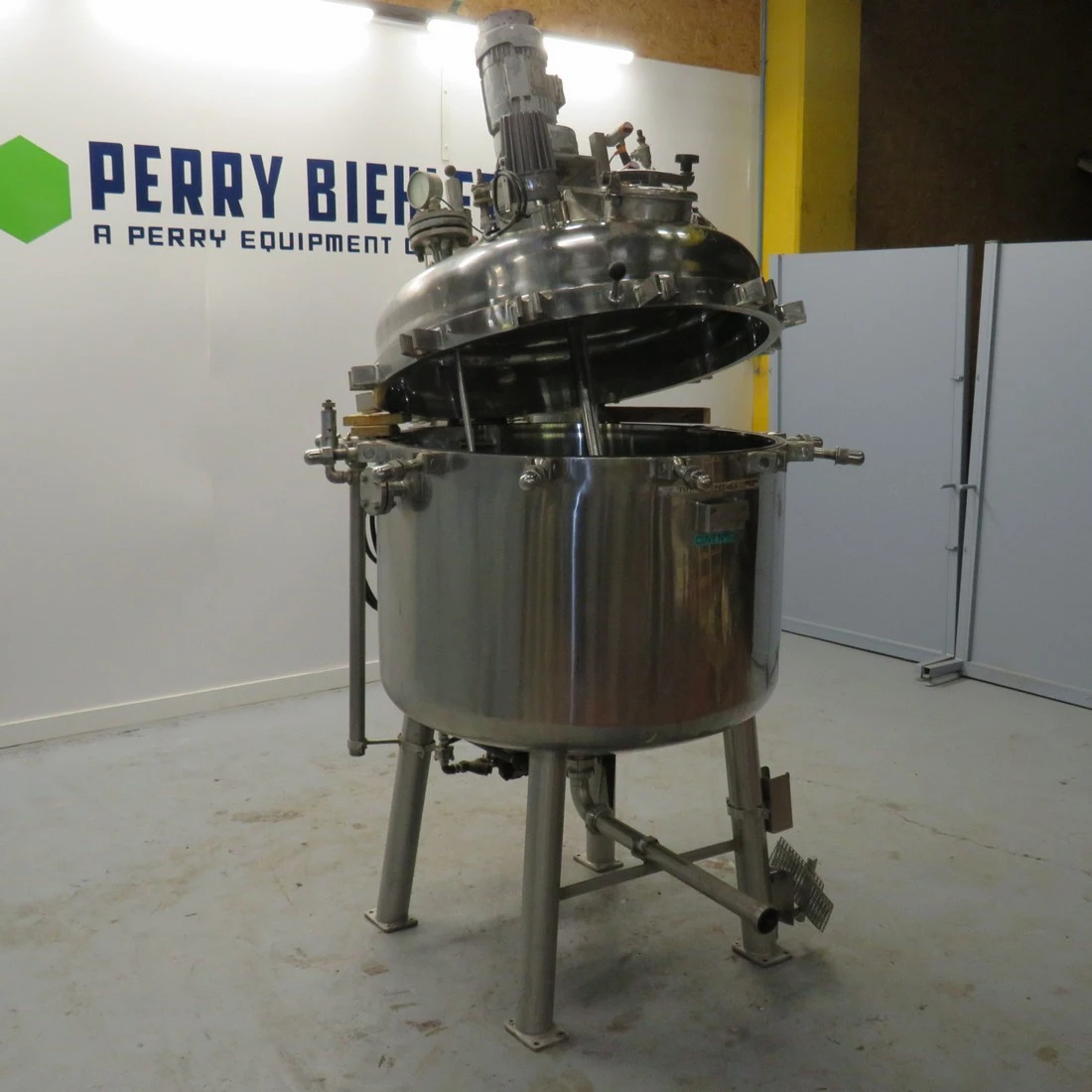

Used jacketed stainless steel mixing tank by Diessel (D). Total volume 670 l. Working volume approx 500 l.
Mixing chamber has internal dimenssions: Ø 985 mm x length of straight side of the wall 1060 mm. Working pressure up to 3 bar at 144 C.
Tank has stainless steel heating jacket with volume 52 l. Working pressure up to 3 bar, at 144 C.
Top opened by accutator, has mounted paddle type agitator, driven via gearbox and el. motor 1.5 kW. Working rotation of agitator up to 365 rpm.
Central bottom discharge outlet with manually operated valve. Tank is mounted on 4 stainless steel legs and equipped with local control panel with frequency converter.

Specifications
Capacity132.1 gal500 L
Diameter3.23'984.81 mm
Height3.48'1,060.1 mm
Vertical/HorizontalVerticalVertical
DimensionsØ 985 x 1060 mmØ 985 x 1060 mm
