USED 2015 ROLEC PROZESS UND BRAUTECHNIK GMBH 120,000 Litre
Overview
Description

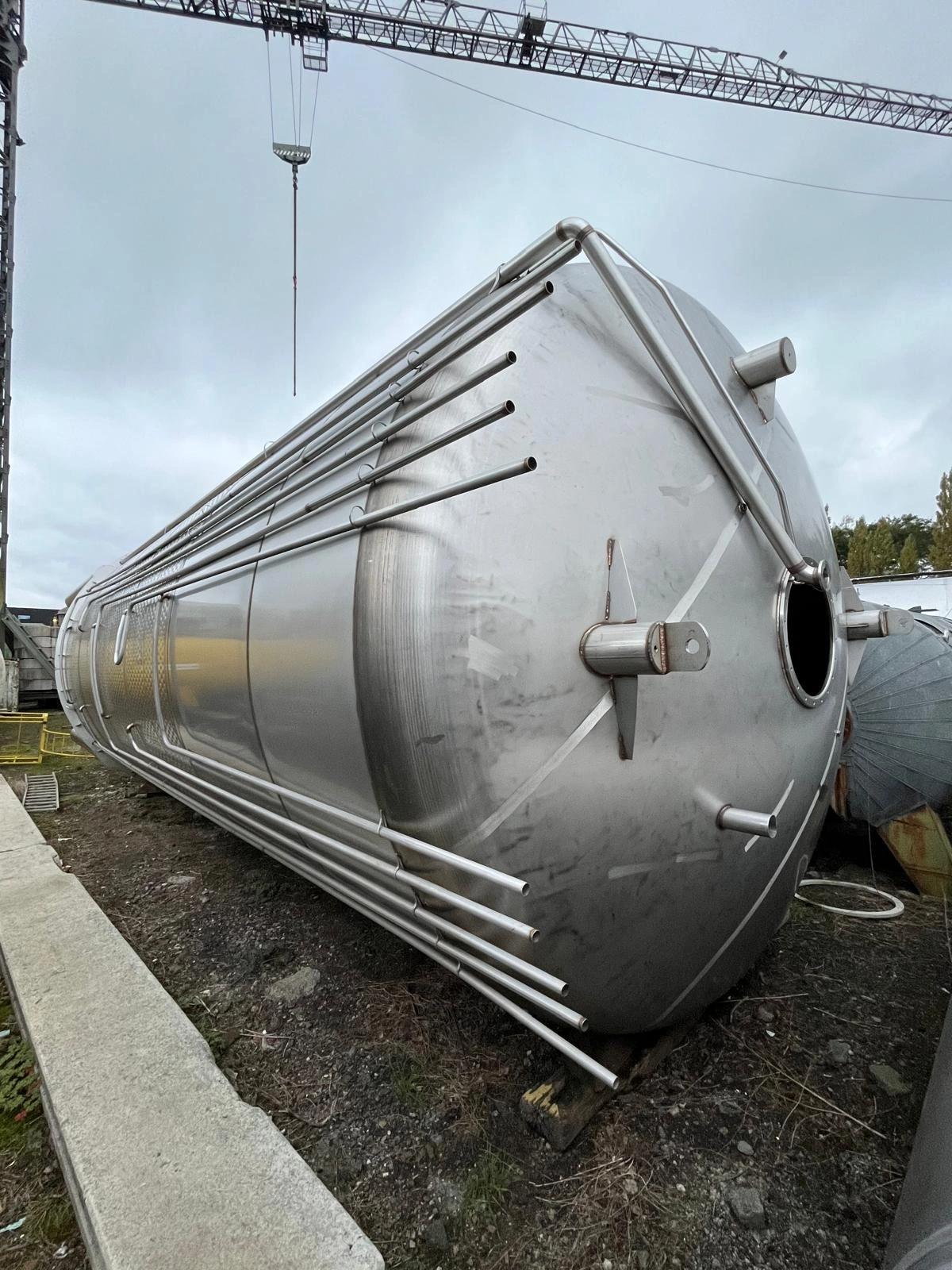

Reportedly unused 304 stainless steel vessel manufactured by ROLEC Prozess und Brautechnik GMBH. New 2015. Total volume 160,000 litre, useful capacity 120,000 litre. Max. working over pressure 0,9 bar (15 PSI)-Conical angle: 70 °-Double jacket.
Vessel: Material: stainless steel 1.4301 (304) - Tank support: 4 stainless steel feet with floor plates
Cooling :Cooling liquid: glycol - Water temperature: -3°C - Cooling section cone: 1 - Cooling surface of the cone: 12 m² - Cooling surface of the side walls: 48 m²
Vessel dimensions :Inner Ø : 3900 mm (12' - 9 5/10") - Outer Ø : 4100 mm (13' - 5 4/10") - Shell height : 9000 mm (29' - 6 3/10") - Cone outlet height : 1000 mm (3' - 3 4/10") - Total height : 13600 mm (41' - 0 1/10") plus platform and fittings - Various inlets and outlets.
Specifications
| Capacity | 31,700.6 gal | 119,999.8 L |
|---|---|---|
| Diameter | 13.12' | 4,000 mm |
| Height | 44.62' | 13,600 mm |
| Type of stainless | 304 | 304 |
| Type Of Heads | Conical | Conical |
| Vertical/Horizontal | Vertical | Vertical |
| Legs/Lugs/Skirt | 4 stainless steel feet with floor plates | 4 stainless steel feet with floor plates |
