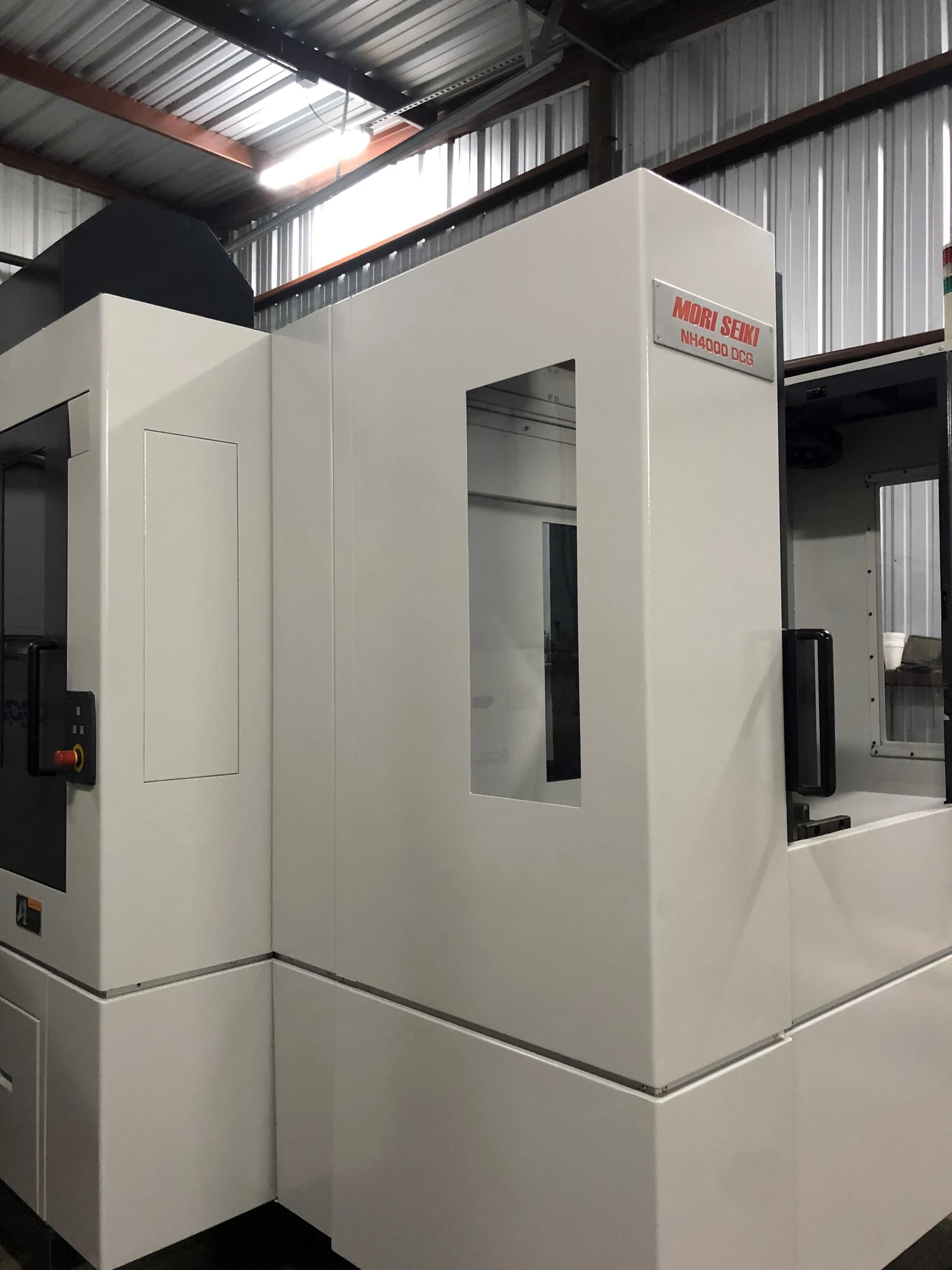

USED 2004 MORI SEIKI NH4000 DCG

Mori Seiki NH4000 DCG CNC Horizontal Machining Center with 15.7" dual pallets and changer. New 2004

MORI SEIKI Model NH4000 DCG Type Horizontal Machining Center with dual 15.7” square pallets with changer. Control CNC MSX 501. Year 2004.
22" X Axis 22" Y Axis Mori Seiki NH-4000DCG HORIZONTAL MACHINING CENTER, MSX 501, CTS, 14,000 RPM, 60ATC
MORI-SEIKI HORIZONTAL MACHINING CENTER MODEL: NH 4000DCG, NEW: 2004

SPECIFICATIONS:
PALLET SIZE .......................... 15.7" X 15.7" (400MM)
MACHINE TRAVELS:
X-AXIS TRAVEL ...................... 22"
Y-AXIS TRAVEL ...................... 22"
Z-AXIS TRAVEL ...................... 24.8"
NUMBER OF PALLET STATIONS ............ 2
PALLET INDEXING ...................... 1 DEGREE
SPINDLE TAPER ........................ CAT #40
SPINDLE SPEEDS ....................... 0 - 14,000 RPM
TOOLCHANGER CAPACITY ................. 60 STATIONS
SPINDLE DRIVE ........................ 30 HP

EQUIPPED WITH:
- MORI-SEIKI / FANUC MODEL: MSX 501 IV CONTROL
- 30 HP HIGHPOWER SPINDLE DRIVE, 14,000 RPM SPINDLE
- THRU-SPINDLE COOLANT
- CHIP BLASTER HIGH PRESSURE COOLANT UNIT
- 2 PALLETS
- PROGRAMMABLE PALLET
- 60 STATION AUTOMATIC TOOL CHANGER
- CHILLER
- MIST COLLECTOR
-CHIP CONVEYOR
TOTAL OVERALL WEIGHT 21,600 LBS
INSPECT UNDER POWER IN HOUSTON, TEXAS. WE WILL LOAD ON YOUR OPEN TRUCK FLATBED AT NO ADDITIONAL COST TO BUYER.
Click on this link for brochure from Mori.
https://us.dmgmori.com/products/machines/milling/horizontal-milling/nh/nh-4000-dcg
Video: ON REQUEST
