USED 1951 BULLARD 36" CUTMASTER
Overview
Description
36" Bullard Cutmaster 3-jaw chuck, 5-station turret head, side head, S/N: 28548. New 1953
Specifications

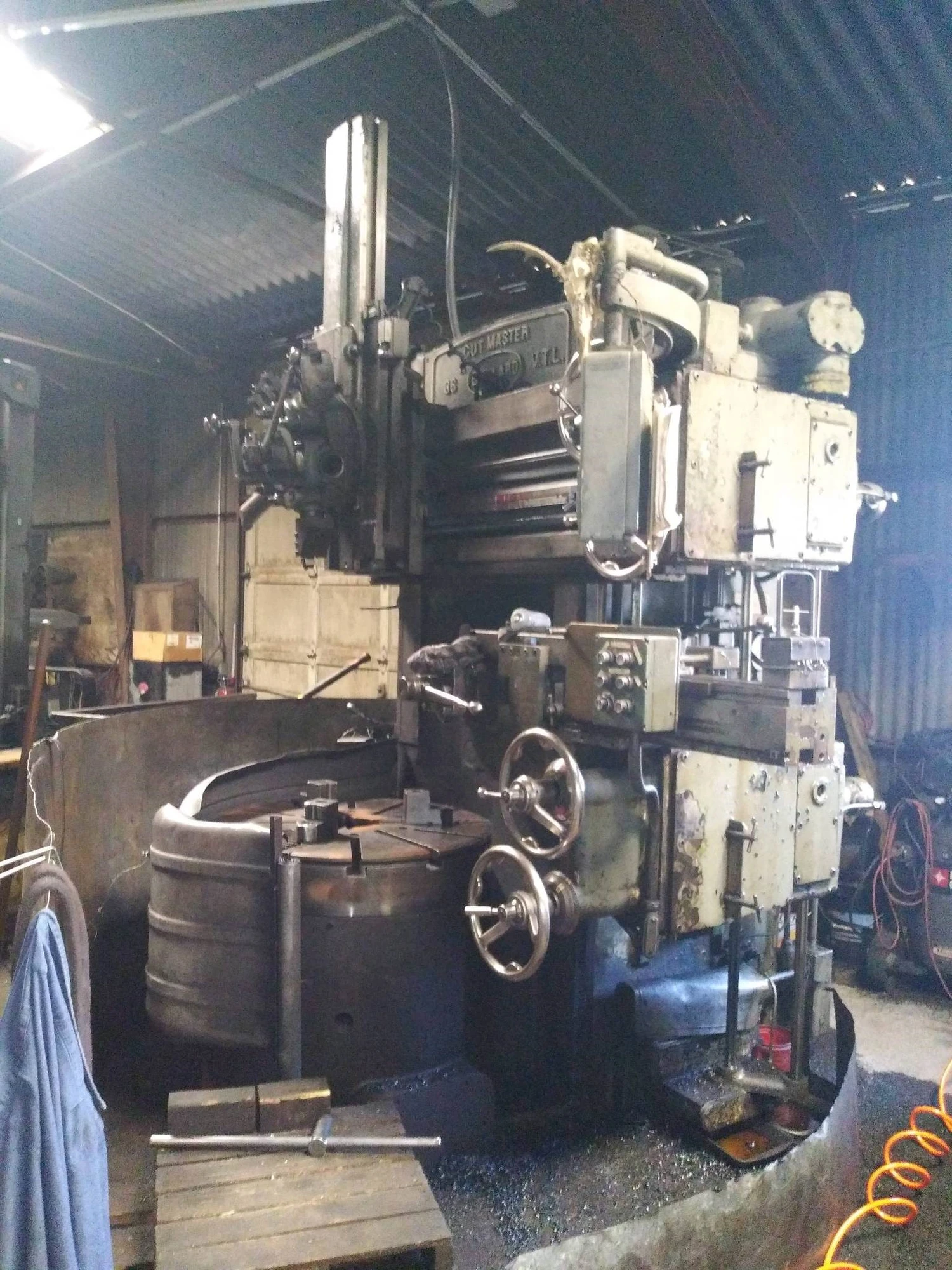

36" Bullard Cutmaster Vertical Turret Lathe. Machine is in good shape and can be viewed under power as needed. Machine comes with a 36" chuck, 5 position turret, and side head.
Specifications:
Side Head In Working Position Max Swing..........................................................39"
Table Diameter.......................................................................................................36"
Side Head Below Table Top Max Swing...............................................................45"
Maximum Distance Table To Rail.........................................................................30"
Cross Rail Vertical Travel......................................................................................20"
Max Distance Table To Face Of Turret.............................................................41.25" T
urret Head Vertical Travel....................................................................................26" T
urret Head Toolpost Holes.................................................................................2.75"
Side Head Vertical Travel..................................................................................30.25"
Side Head Horizontal Travel..................................................................................18"
Table Speeds.................................................................................................240 RPM
Feeds.....................................................................................................0026-.500 IPR
Motor..................................................................................................................30 HP
Electrics........................................................................................................30/60/AC
Approx Weight...........................................................................................30,000 Lbs
Equipped With: 36" 3- Jaw Chuck 5 Position Turret Side Head
