USED STURTEVANT 4000 CFM

Overview
Manufacturer:
STURTEVANT
Model:
4000 CFM
Stock #:
9462-05
Description

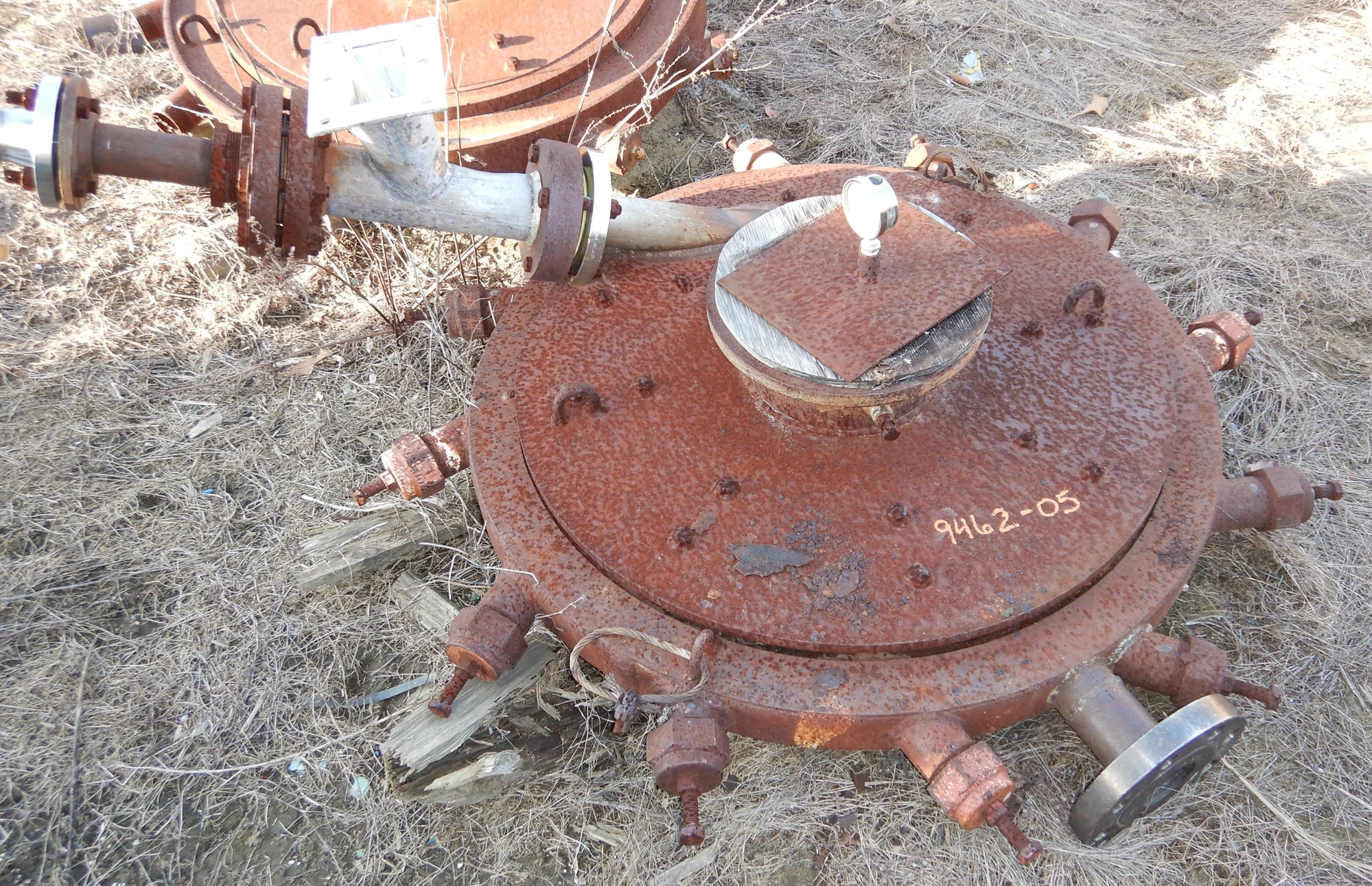

Used Sturtevant steam micronizer fluid energy grinding mill.
Carbon steel.
30" diameter grinding chamber.
Top: (1) 3" tangential 304L stainless steel feed air/gas/steam inlet nozzle equipped with a 3" wide x 6" long x 6" deep feed funnel, (1) 8" center outlet.
Side: (12) 2" male threaded steam inlet nozzles, (1) 2 1/2" side grind air/gas/steam nozzle.
4000 CFM, Rated up to 3,000 lbs/hour.

Specifications
Airflow Rate4,000 ft³/min.113.3 m³/min.
