USED 2011 CARR 9004PLT

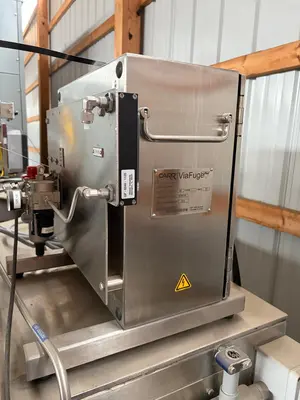

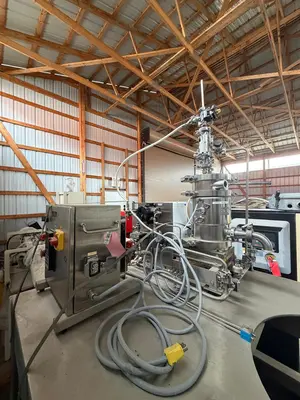

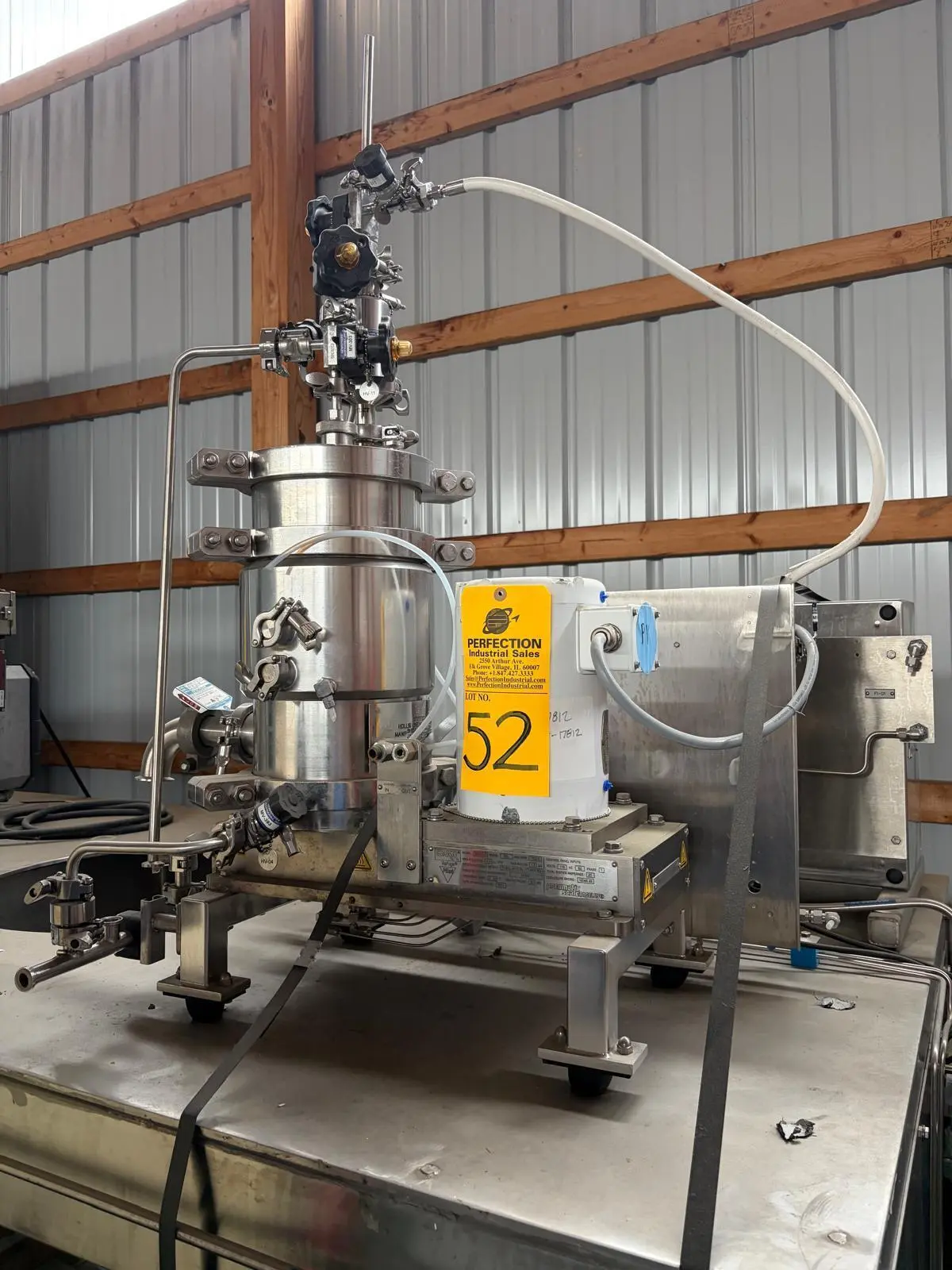

Used Carr ViaFuge Pilot Disc Stack Centrifuge, Model 9004PLT

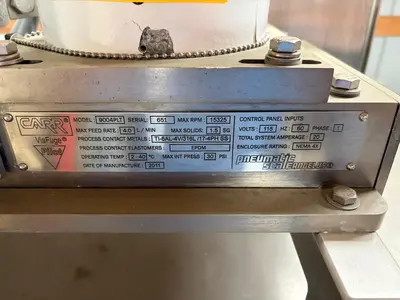

Manufacturer: Carr
Model: 9004PLT
Serial number: 651
Year built: 2011
Maximum feed rate: 4.0 L/min
Maximum bowl speed: 15,325 RPM
Maximum solids SG: 1.5
Process contact metals: Ti-6Al-4V titanium alloy, 316L stainless steel, 17-4PH stainless steel
Process contact elastomers: EPDM
Operating temperature: 2-40°C
Maximum internal pressure: 30 PSI
Electrical: 115V / 1 Phase / 60 Hz / 20 Amps
Enclosure rating: NEMA 4X

Sanitary pilot-scale high speed disc stack centrifuge
Titanium Ti-6Al-4V, 316L and 17-4PH stainless steel product contact parts
Designed for biotech, pharmaceutical, fermentation and fine chemical applications
Equipped with sanitary valves, instrumentation and pneumatic controls

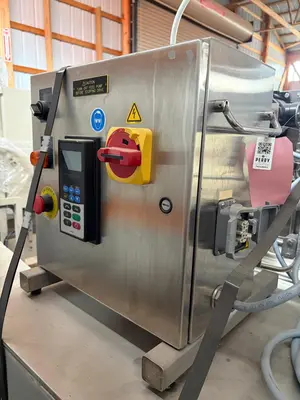

Includes integrated Carr ViaFuge Pilot control system with stainless steel NEMA 4X control enclosure
Mounted on stainless steel base frame
