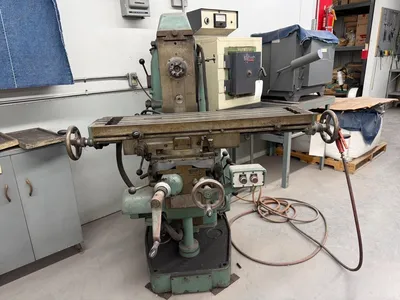

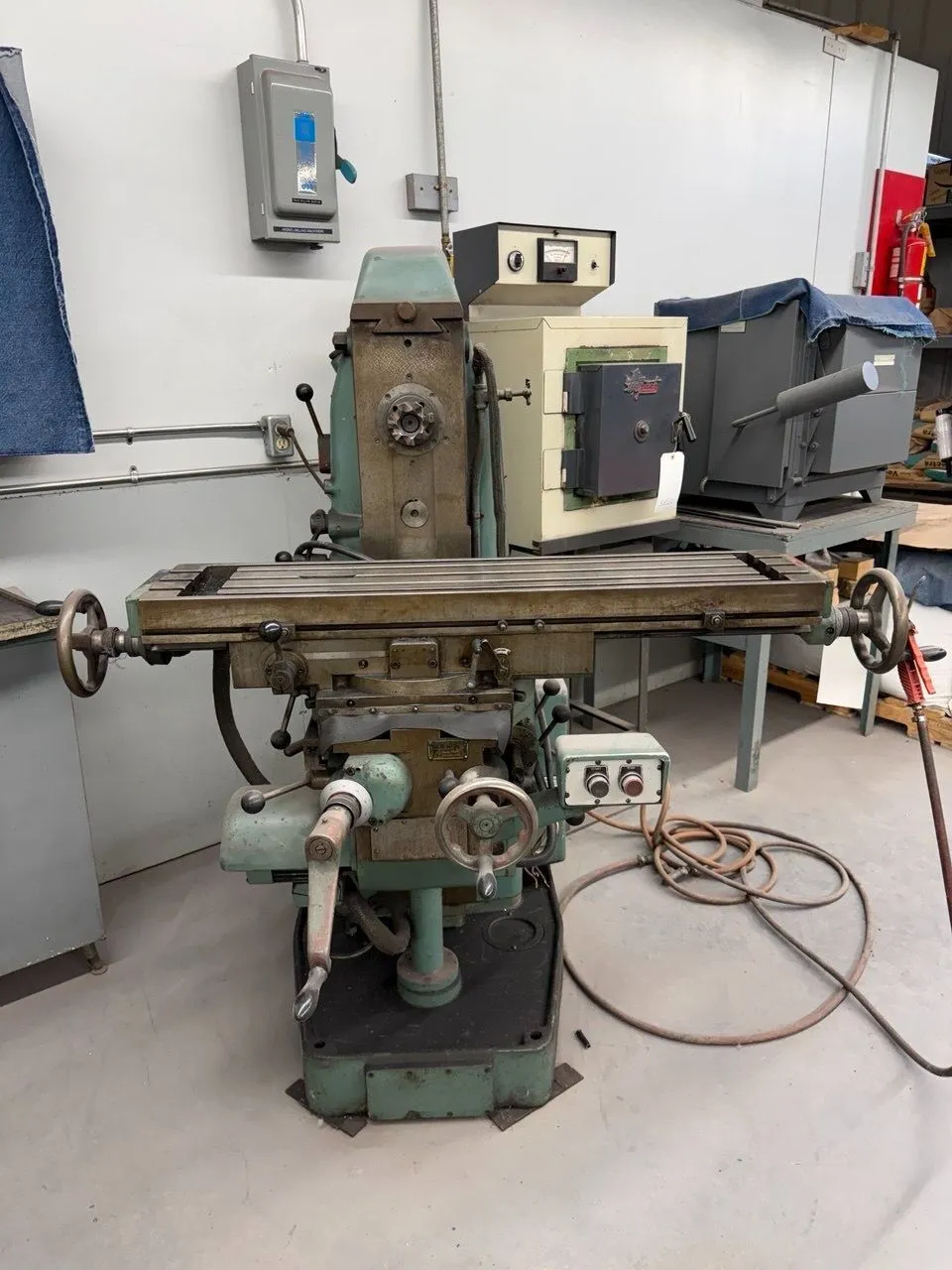

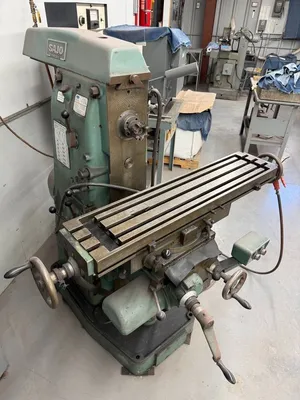

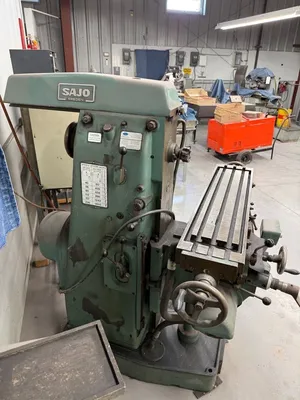

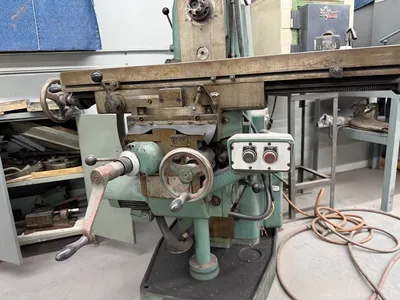

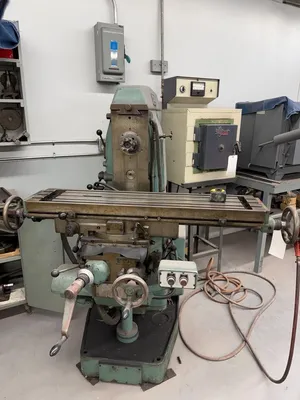

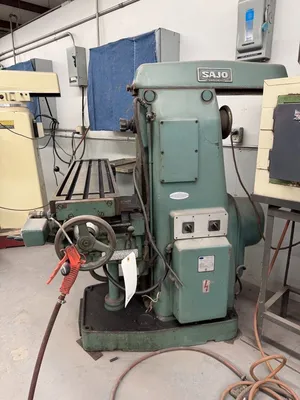

SAJO UF-52 UNIVERSAL MILLING MACHINE

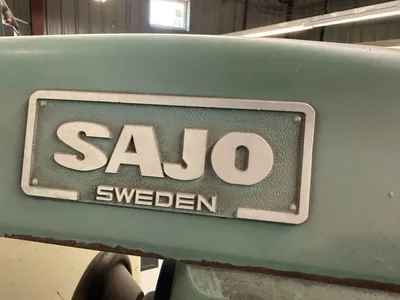

MAKE: SAJO (Sweden)
MODEL: UF-52
POWER: 550V / 3 Phase / 60 Hz
SPECS:
Machine Type: Universal Milling Machine
Table Size: 41.25 in x 9.25 in (1050 mm x 240 mm)
X-Axis Travel: 27.5 in (700 mm)
Y-Axis Travel: 8.5 in (215 mm)
Z-Axis Travel: 18.3 in (465 mm)

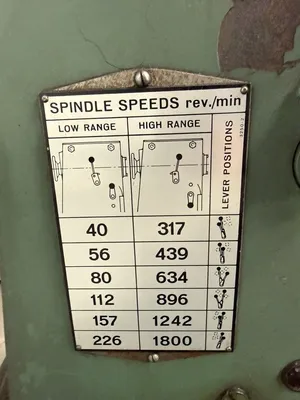

Spindle Speed Range: 40 - 1,800 RPM
Main Spindle Motor: 3.5 HP
Feed Motor: 0.75 HP
Coolant Pump Motor: 0.15 HP
Control Circuit Voltage: 110V

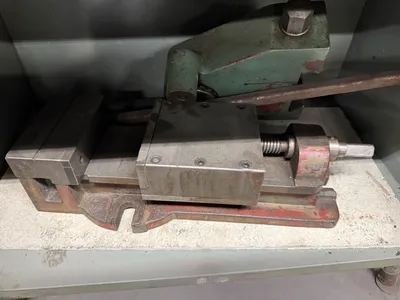

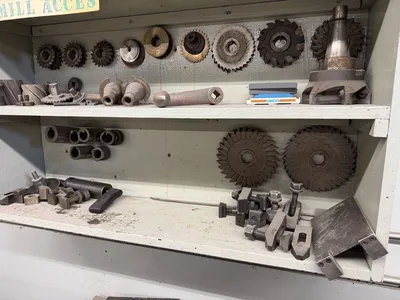

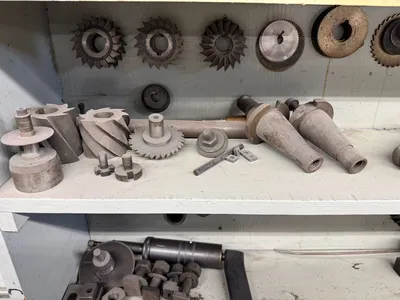

Note: Comes with table vice and some tooling
WEIGHT: 2,650 lb (1,200 kg)
DIMENSIONS: 80 in L x 65 in W x 66 in H
| Table Size-W | 9.25" | 234.95 mm |
| Table Size-L | 41.25" | 1,047.7 mm |
| Power | 3.5 hp | 2.6 kW |
| Dimensions | 61 in L x 48 in W x 64 in H | 61 in L x 48 in W x 64 in H |
| Weight | 2,650 lb | 2,650 lb |
