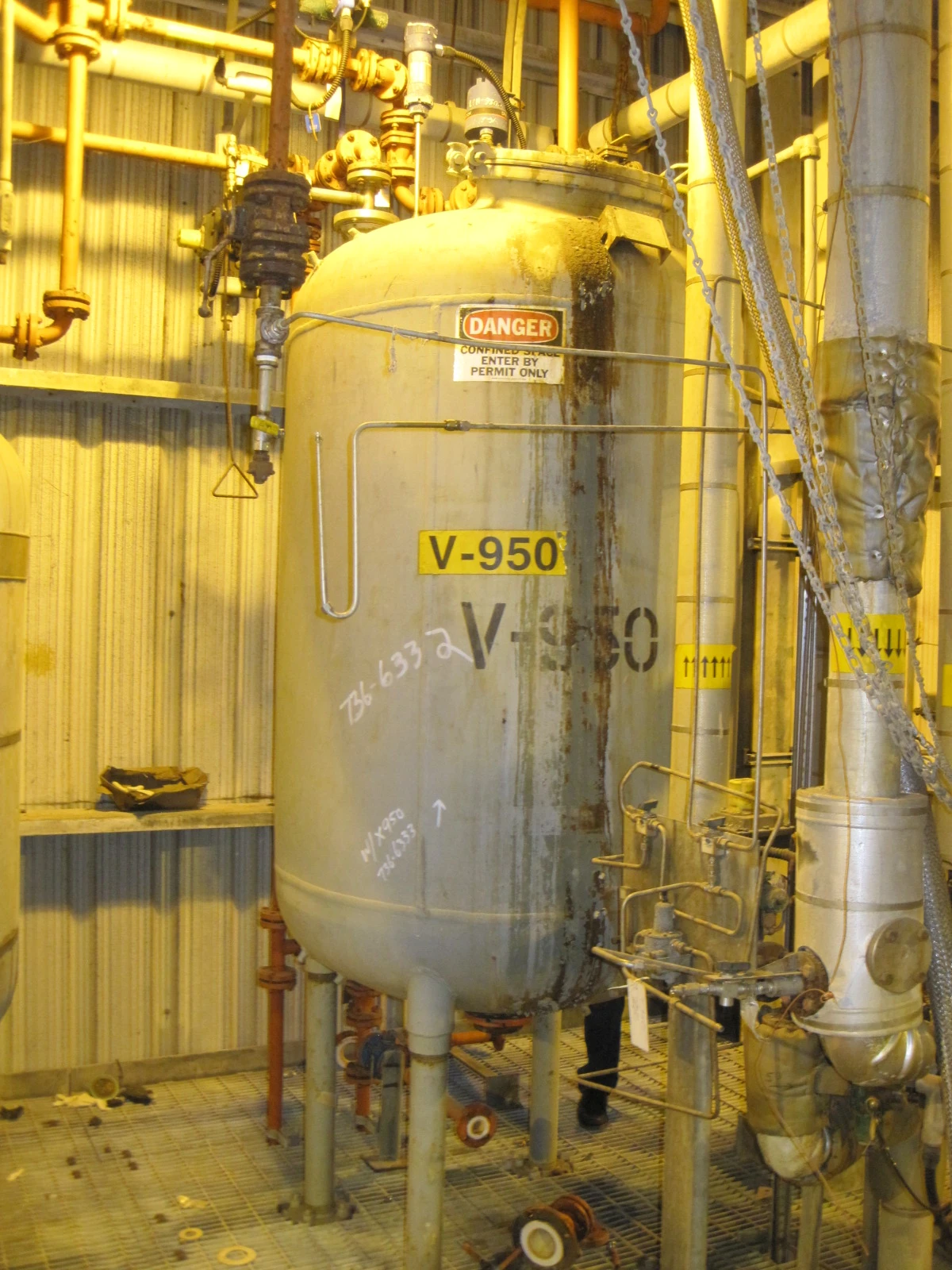

Used Ceramic Coatings approximately 500 gallon glass lined vertical pressure vessel
Type HT-2008 glass
4' diameter X 5' straight side
Rated 90 psi/full vacuum internal @ 650°F
Mounted on (4) legs
| Capacity | 500 gal | 1,892.7 L |
| Condition Of Glass | Type HT-2008 | Type HT-2008 |
| Internal Pressure | 90 psi | |
| Internal Temperature | 650°F | 343.3°C |
| Vertical/Horizontal | Vertical | Vertical |
| Diameter | 48" | 1,219.2 mm |
| Straight Side | 60 | 60 |
| Dimensions | 4' diameter x 5' straight side | 4' diameter x 5' straight side |
