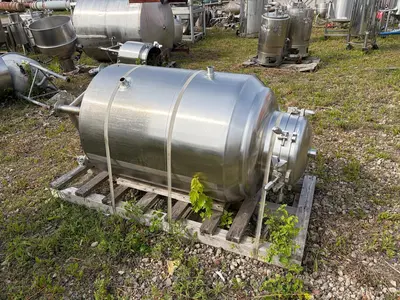

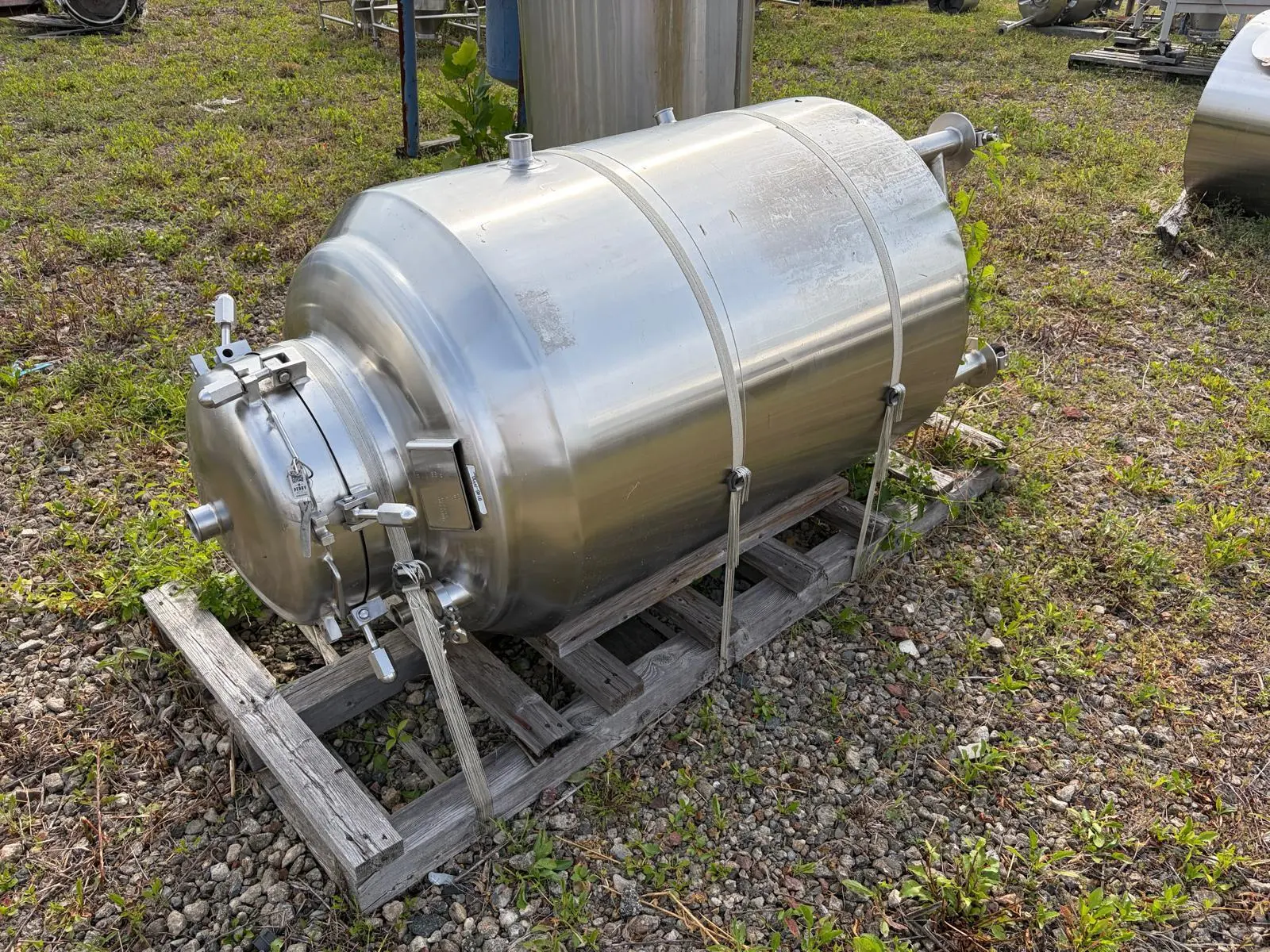

Used Approximately 160 Gallon T316 Stainless Steel Jacketed Pressure Vessel
Manufacturer: WHE
Capacity: 160 gallons
National Board: 31
Serial: 2146
Year: 1996
Internal pressure: 45/FV @ 300°F
Jacket pressure: 100 psi @ 300°F
Material of construction: T316 stainless steel
Material of jacket: 304 stainless steel
Dimensions: 34" dia. x 43" straight side
Dish top, dish bottom

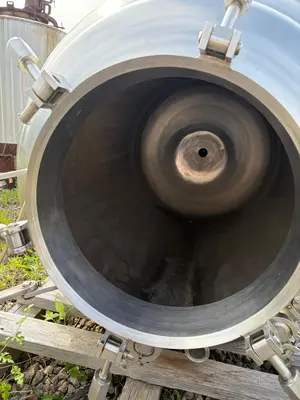

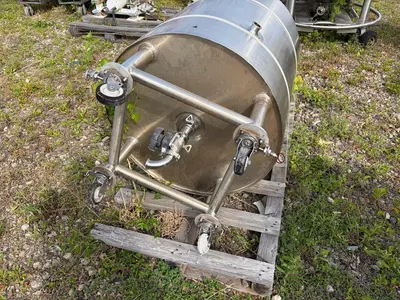

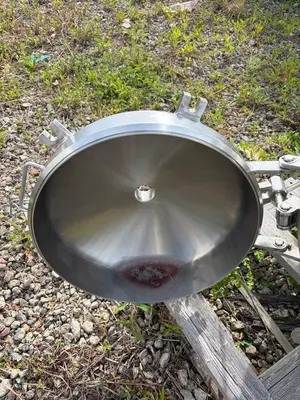

Additional information: clamp hinged top manway, (3) 1.75", 2", and 2.5" top inlets, and 2.5" bottom outlet, mounted on wheels
| Capacity | 160 gal | 605.7 L |
| National Board No. | 31 | 31 |
| Type of stainless | T316 | T316 |
| Internal Pressure | 45 PSI | 3.1 bar |
| Internal Temperature | 300°F | 148.9°C |
| Jacket Pressure | 100 PSI | 6.9 bar |
| Diameter | 30" | 762 mm |
| Straight Side | 42" | 1,066.8 mm |
| Type Of Heads | Dish top, dish bottom | Dish top, dish bottom |
| Legs/Lugs | mounted on wheels | mounted on wheels |
| Dimensions | 30" dia. x 42" straight side | 30" dia. x 42" straight side |
