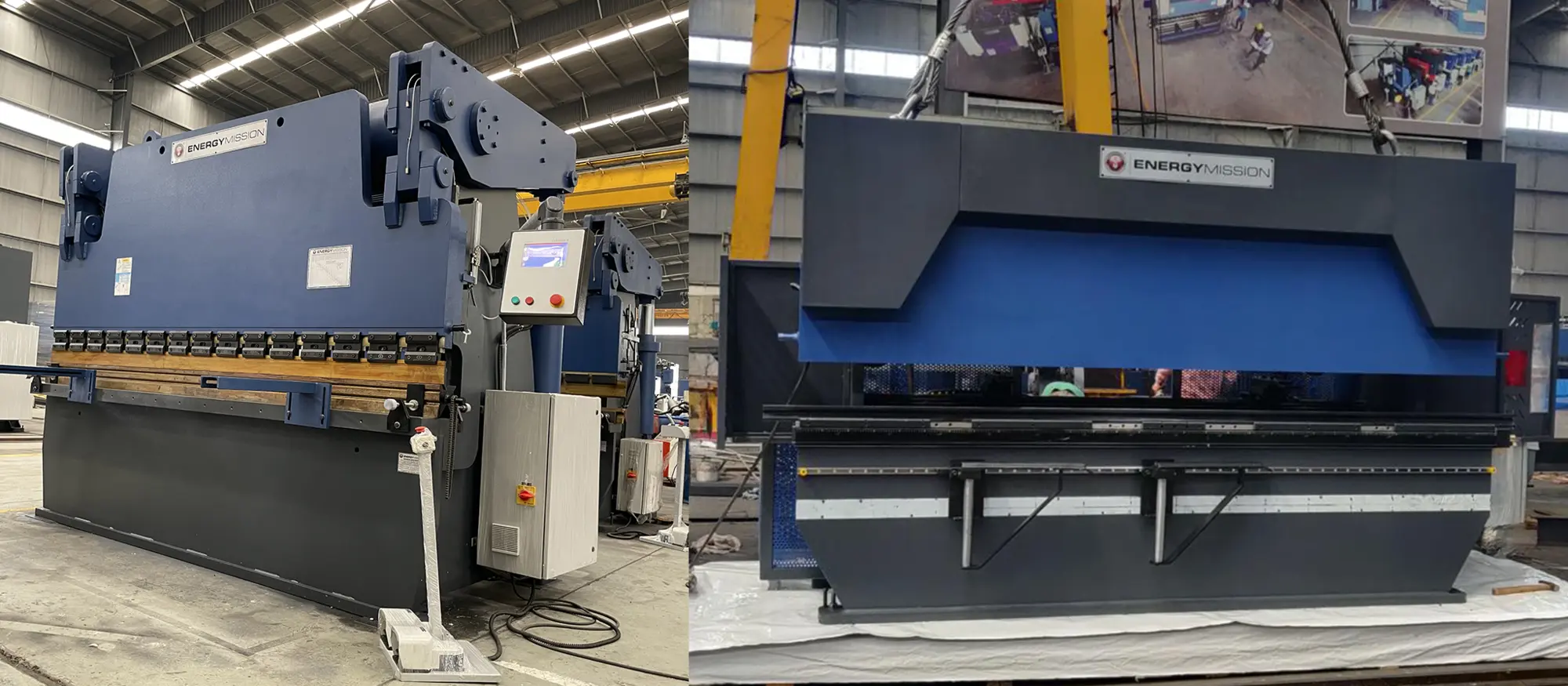

USED 2024 ENERGY MISSION PBR 1030
Overview
Description
10' x 110-Ton Press brake with CybTouch 8, Wila upper beam, standard tooling, manual crowning and more!
Specifications
Bending Tons 110
Bending Capacity (Mild Steel) 10’
Table Size 7” x 10’
Clear Pass. 100”
Ram Strokes 6”
Open Height 13”
Closed Height 7”
Throat Depth 8”
Approach Speed 1.1”/sec
Pressing Speed .15”/sec
Return Speed 1.2”/sec
Motor 10HP
Weight 12,500 LBS
Dimensions 127”x61”x90”
Oil Tank Capacity 92 Gal
Oil Specification 68 grade Hyd. Oil
Equipped With
Movable Workstation with Foot Switch
American Goosneck Punch in Sections
4-Way Die in Sections
Centralized Lubrication System with Hand Pump
Main Drive Motor
Fine Stroke Adjustment Rod with Limit Switch
X,R Joystick Power Z1,Z2
NC Back Gauge with Cybelec CYB-8PS Controller
Manual Crowning
Wila Upper Beam with Hyd. Valve
220 Volt 3-Phase
