360 degree hydraulic rotation
Single Cylinder Type
Per Factory Literature:
Max Hydraulic Pressure:
4,400 ~ 4,650 psi Cutting, 2,000 ~ 2,500 psi Rotating
Hydraulic Flow:
60 GPM Jaw, 20 GPM Rotating
Cutting Force:
Jaw End- 207,000 lbs, Jaw Center- 408,000 lbs
Cylinder Force: 220,000 lbs
Jaw Opening: 20 7/8"

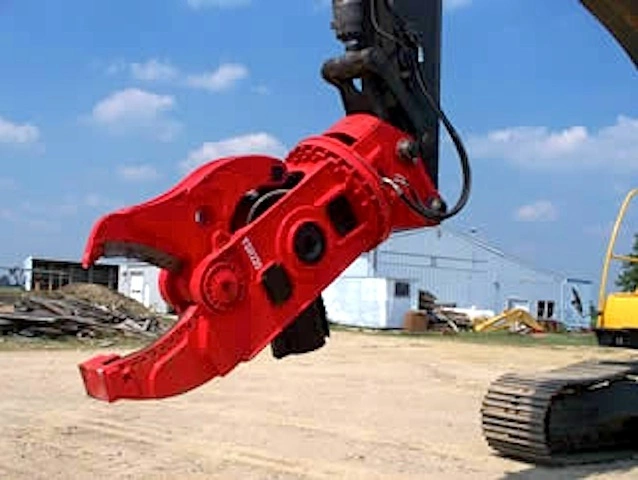

Single Cylinder Type Hydraulic Shears:
- This Single Cylinder Type Hydraulic Shear is newly designed and developed for increasing cutting power and minimizing the possible problems of two cylinder type hydraulic shears.
- Cutting blades are easy to replace.
- Cutting blades gap is simple to adjust.
- Strong jaws made of special steel "HARDOX400" provide long lasting life.
- Cutting blades are made of special steel "HARDOX600" and are strong enough to cut steels.
- Opening and depth are larger than two cylinder types.
- Increase of 30% to 40% in cutting force.
- 360 degree hydraulic rotation.
- Hydraulic Rotation, Manual Rotation or No Rotation is available.
