10’ x1/4” CINCINNATI INC “2CC10” MECHANICAL POWER SQUARING SHEAR - Cincinnati Microcomputer Gage Control - 36” Front Operated Back Gauge - Squaring Arm - Front Support
| Max Thickness | 0.25" | 6.35 mm |
| Length of Blade | 126" | 3,200.4 mm |
| Hyd/Mech | 'Mech' | 'Mech' |
| Back Gauge | 36" | 914.4 mm |
| Power | 7.5 hp | 5.6 kW |
| SPM | 60 strokes/min. | 60 strokes/min. |
| Dimensions | 13’1” x 7’ | 13’1” x 7’ |
| Weight | 17000 LBS | 17000 LBS |

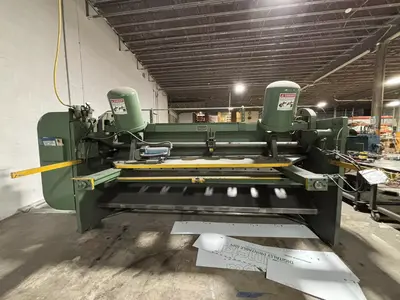

10' X 1/4" CINCINNATI INC "2CC10" MECHANICAL
POWER SQUARING SHEAR

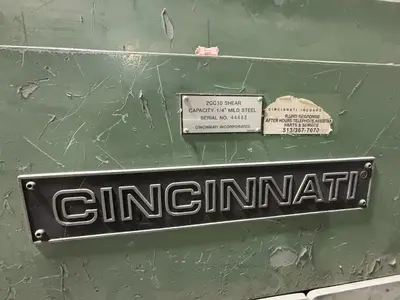

Serial No 44483, Model 2CC10,
EQUIPPED WITH:
Cincinnati Microcomputer Gage Control
36" Front Operated Power Back Gauge
Air Actuated Mechanical Clutch
With Electric Foot Switch Operation

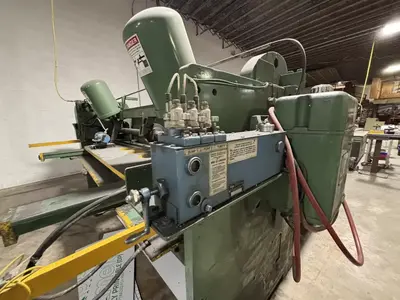

Hydraulic Hold-Downs -

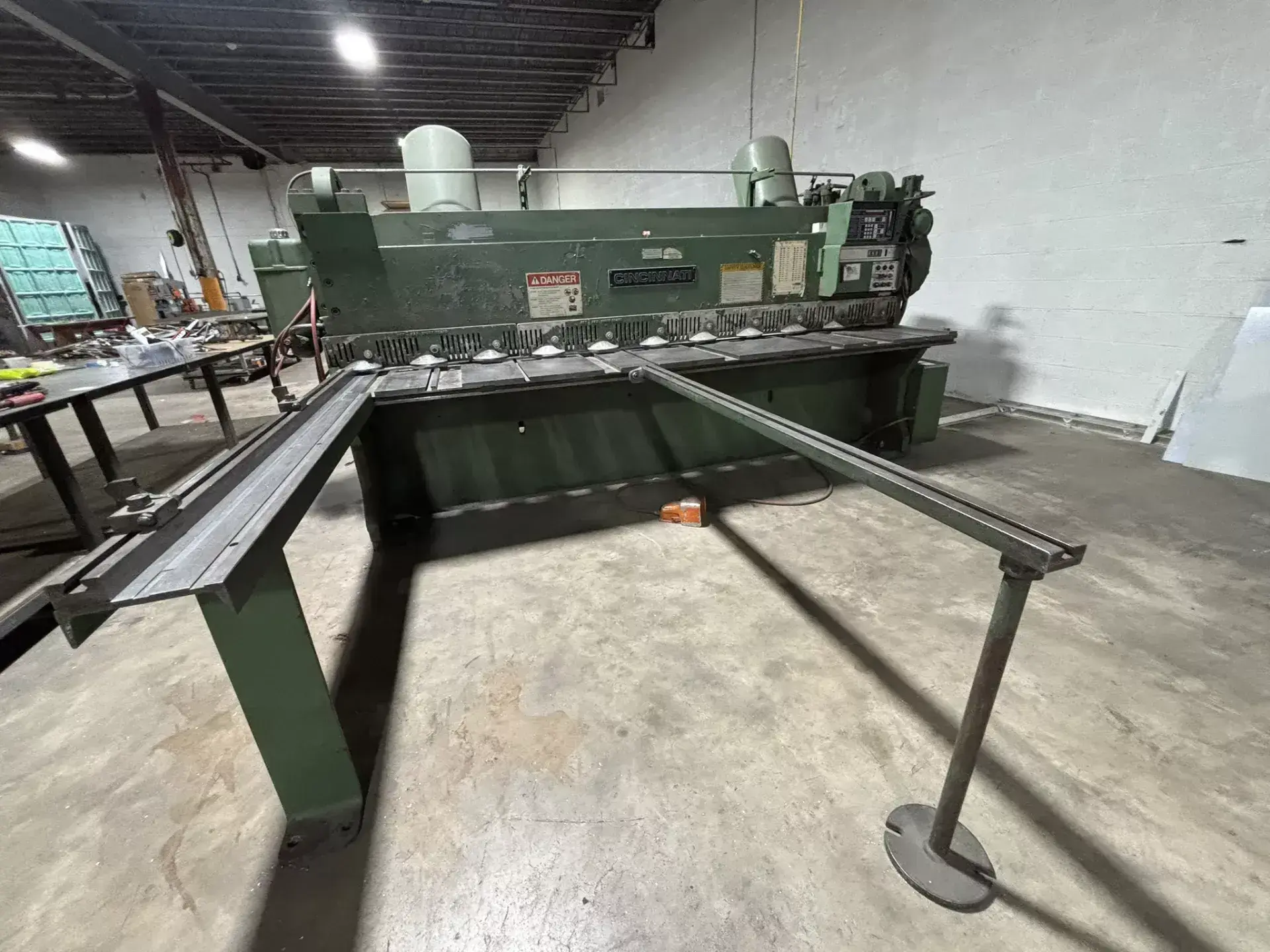

Squaring Arm & Front Support
Spring Ram Counterbalance
Automatic Pressure Lubrication System
CATALOG SPECIFICATIONS:
Capacity, Mild Steel 10' x 1/4"
Length Between Housings 10'2-3/4"
Knife Size 126” x 3” x 1”
Strokes Per Minute 60 SPM
Gap Length 3.75"
Rake, Taper Per Foot 1/4"
Hold-Down Force 8-TONS
Hold-Downs to Knife Edge 5/8"
Distance Under Hold-Downs 1/2"
Table Height 32"
Motor Horsepower 7.5 HP
Overall Dimensions, L x W 13'1" x 7'
Overall Height, Above Floor 6'6"
Weight, Approximately 17000 LBS.
NOTE: The Microcomputer Gage Control Allows You To
Preprogram Back Gauge Positions And To Individually
Or Automatically Sequence The Back Gauge To Those
Positions.
F.O.B. OUR WAREHOUSE
