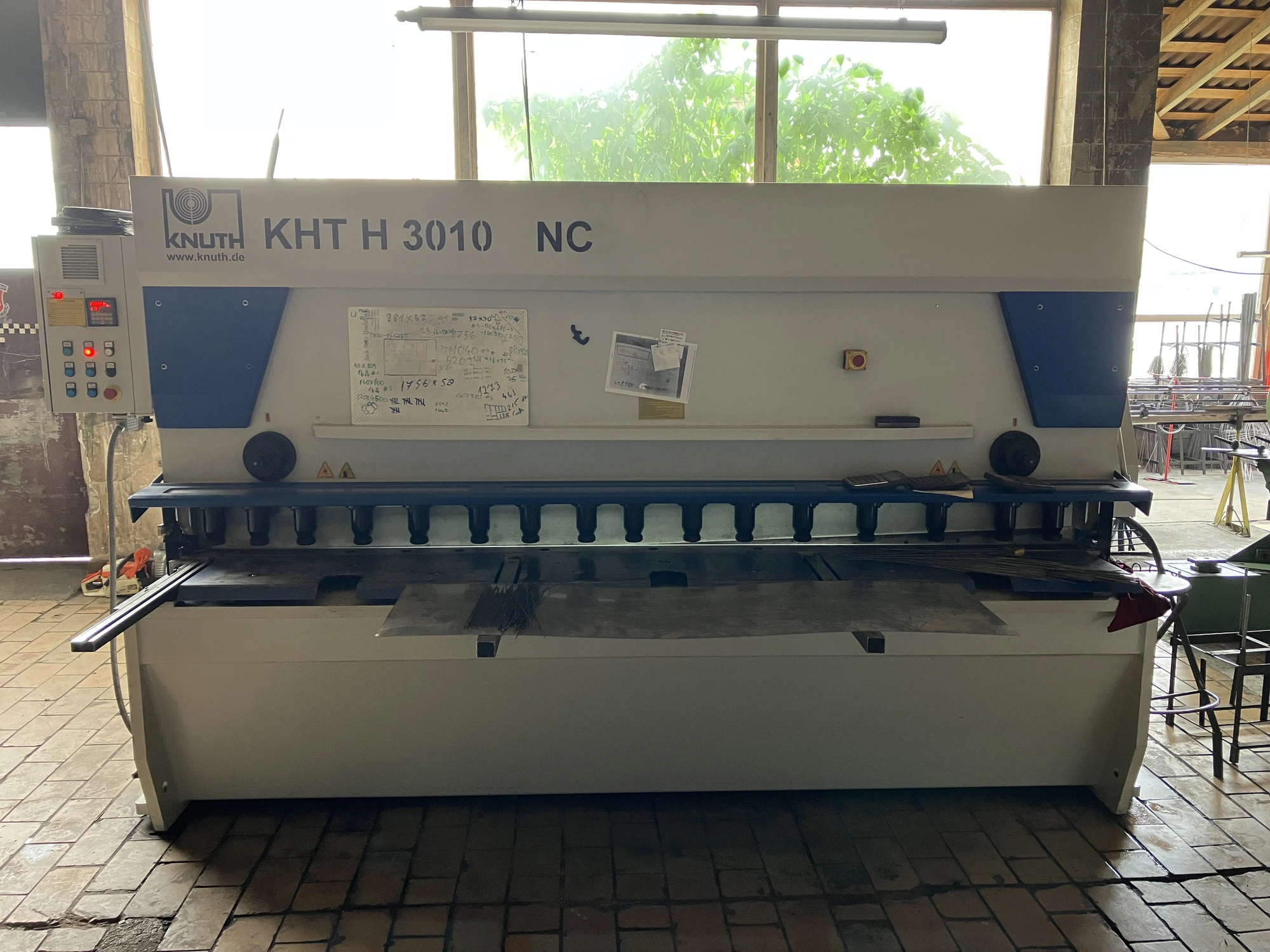

USED 2021 KNUTH KHT 3010 NC

The guillotine shears of the KHT H CNC series are produced in a state-of-the-art manufacturing facility. The construction with a guided cutter bar with adjustable cutting angle guarantees minimal twisting in the workpiece and thus reduces rework. The control is operated on a touchscreen. Cutting gap, cutting angle and cutting length are automatically optimally positioned. The high-quality backgauge is robust and precise, and the standard blades are suitable for stainless steel. Additional accessories expand the range of applications of the guillotine shears.

Cybelec Touch 8 control
Controlled back gauge with preloaded ball screw
Controlled kerf adjustment
Controlled cutting angle adjustment
Knife suitable for stainless steel

Working area
Working length 3080 mm
Throat depth 150 mm
Cutting angle 0,3 deg - 2 deg
Strokes per minute 17 H/min
Hold-down 16 positions
Hold-down capacity 20 t
Table size 3340 mm x 520 mm x 875 mm

Back Gauge
Rear stop 1000 mm
Feed speed X-axis 6000 mm/min
Front Support Arms
Number of support arms 3 positions
Length of support arms 900 mm

Cutting Capacities
Plate thickness (max.) - 450 N/mm² 10 mm
Plate thickness(max.) - 700 N/mm² 6 mm

Drive capacity
Motor rating main drive 22 kW
Hydraulic tank volume 350 l

Measures and weights
Overall dimensions (length x width x height) 3,92 m x 2,2 m x 2,13 m
Weight 9300 kg
