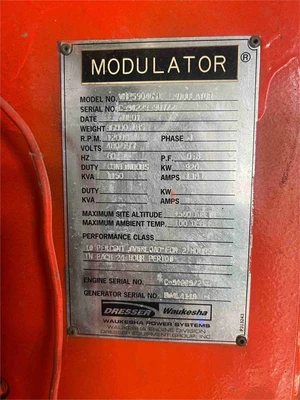

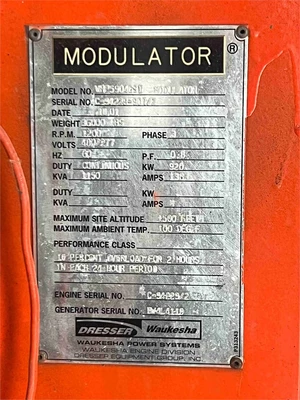

USED 2001 WAUKESHA VHP 5904 GSI MODULATOR

Waukesha "VHP 5904 GSI Modulator" Gas Generating System
3000 Hours
GE’s Waukesha VHP generator sets are built for efficiency, durability and longevity providing reliable power for continuous and intermittent power applications. Reliable 12 cylinder VHP generator sets, rated at 500-1100 kWe at 50 Hz (1000 rpm) continuous duty to 1200 kWe at 60 Hz (1200 rpm) intermittent duty, are ideal for remote sites.
Standard on the GSI configuration, Waukesha’s emPact Emission Control System combines an engine, catalyst, and air/fuel ratio control, factory-designed for optimal interaction and maximum performance. It consists of a GEsupplied catalyst, pre- and post-catalyst oxygen sensing, and differential temperature and pressure sensors. emPact’s closed-loop control system measures the engine exhaust and automatically adjusts the air/fuel ratio to keep the catalyst operating at maximum efficiency, even as speed, load, fuel, and ambient conditions change.

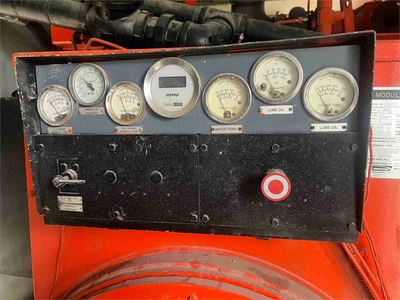

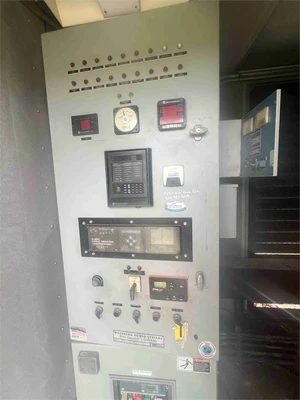

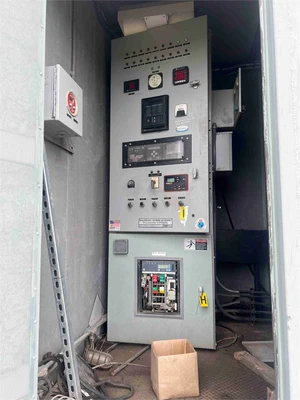

The emPact display panel provides real-time engine operating parameters, including faults, alarms, and shutdowns. A logging function allows all data—including catalyst temperature and pressure differential—to be saved to a USB device to simplify emissions reporting.
Technical Data

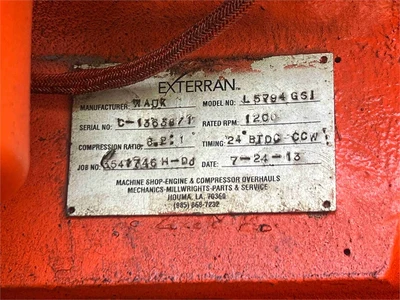

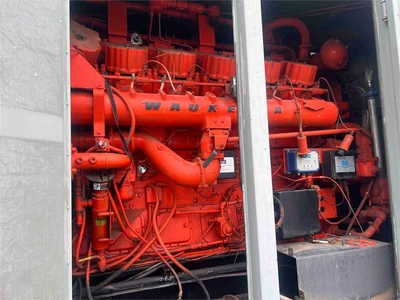

Waukesha engine - L5794GSI Four Cycle
Cylinders V12
Piston displacement 5788 cu. in. (95 L)
Compression ratio 8.25:1
Bore & stroke 8.5” x 8.5” (216 mm x 216 mm)
Jacket water system capacity 107 gal. (405 L)
Lube oil capacity 190 gal. (719 L)
Starting system 24V electric
Dimensions L x W x H inch (mm)
Heat exchanger 235" (5970) x 85" (2160) x 103" (2620)
Water connection 205" (5208) x 85" (2160) x 103" (2620)
Radiator 260" (6600) x 124" (3150) x 160" (4060)
Weights lb (kg)
Heat exchanger 40,000 Lbs (18140kg)
Water connection 38,000 Lbs (17230kg)
Radiator 46,000 Lbs (20860kg)
 Needs top end rebuild (cracked head).
 Needs top end rebuild (cracked head).
 Gas / fuel lines are in pieces and need to be reassembled.
 Gas / fuel lines are in pieces and need to be reassembled.

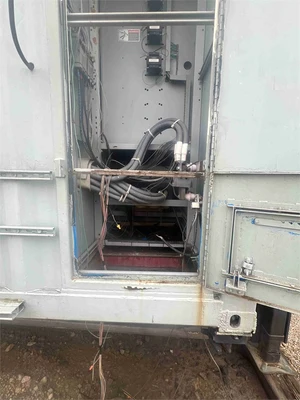

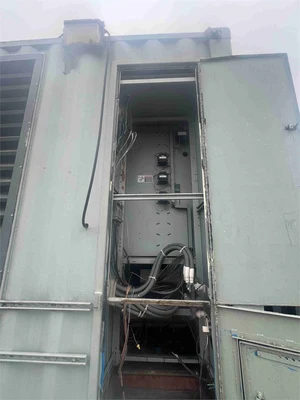

Previous teardown left lines/components disconnected and needing reinstallation.
Previous teardown left lines/components disconnected and needing reinstallation.

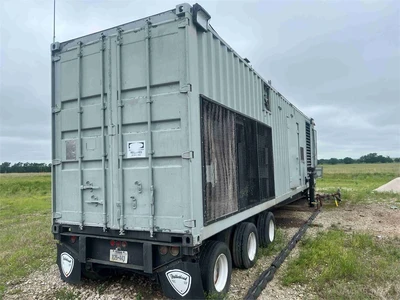

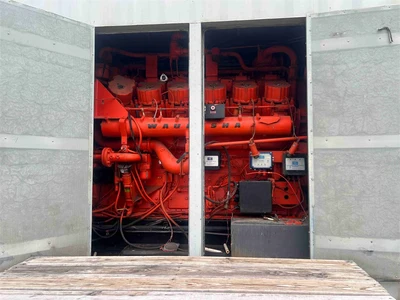

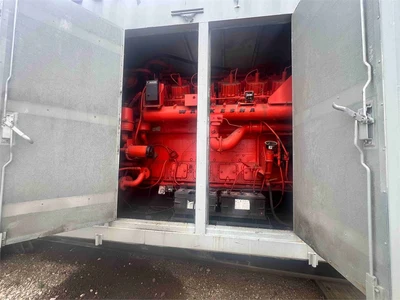

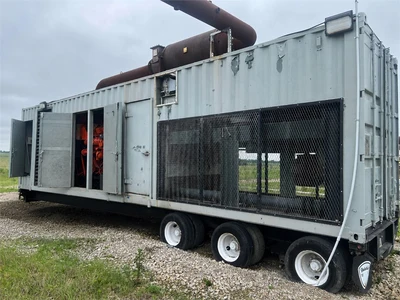

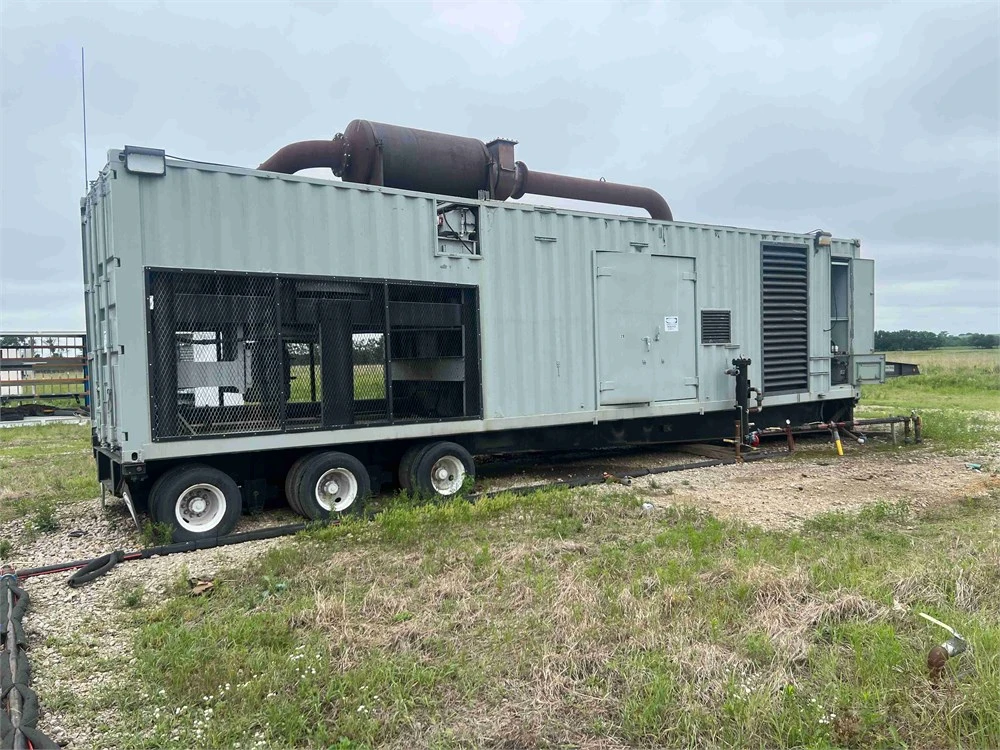

Trailer-mounted enclosed generator package.
Trailer-mounted enclosed generator package.

Phase: 3 PHASE
Voltage: 480 VOLT
Estimated Dimensions: See photos and description
Seller Comment: Buyer responsible for removal & loading.
Load Out Period: Within (2) weeks after purchase date
