USED 2019 HOLZ-HER "TECTRA 6120

Lot Closes:: 6/30/2026 9:00:00 AM PT

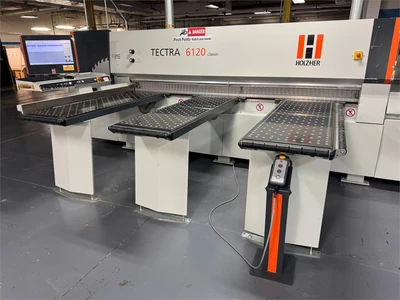

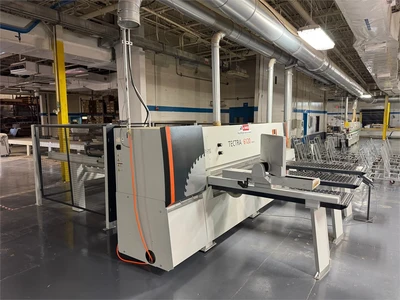

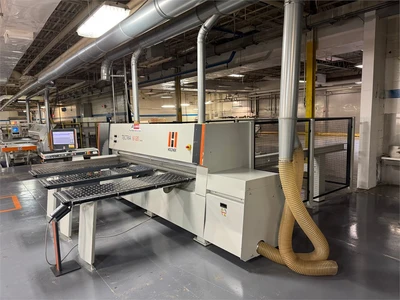

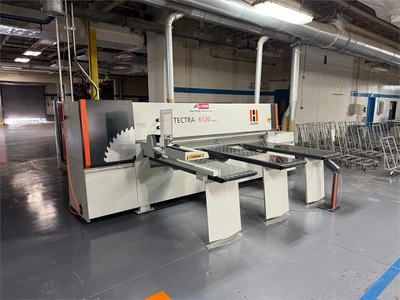

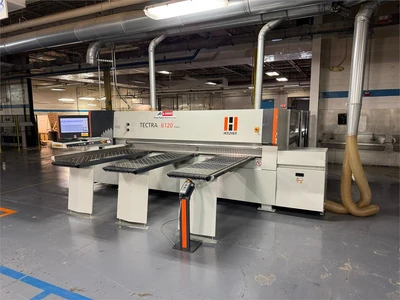

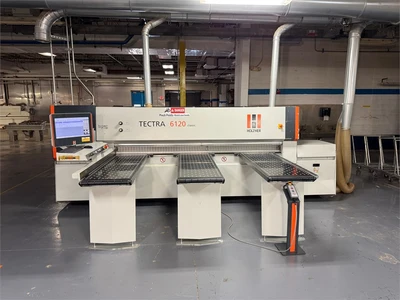

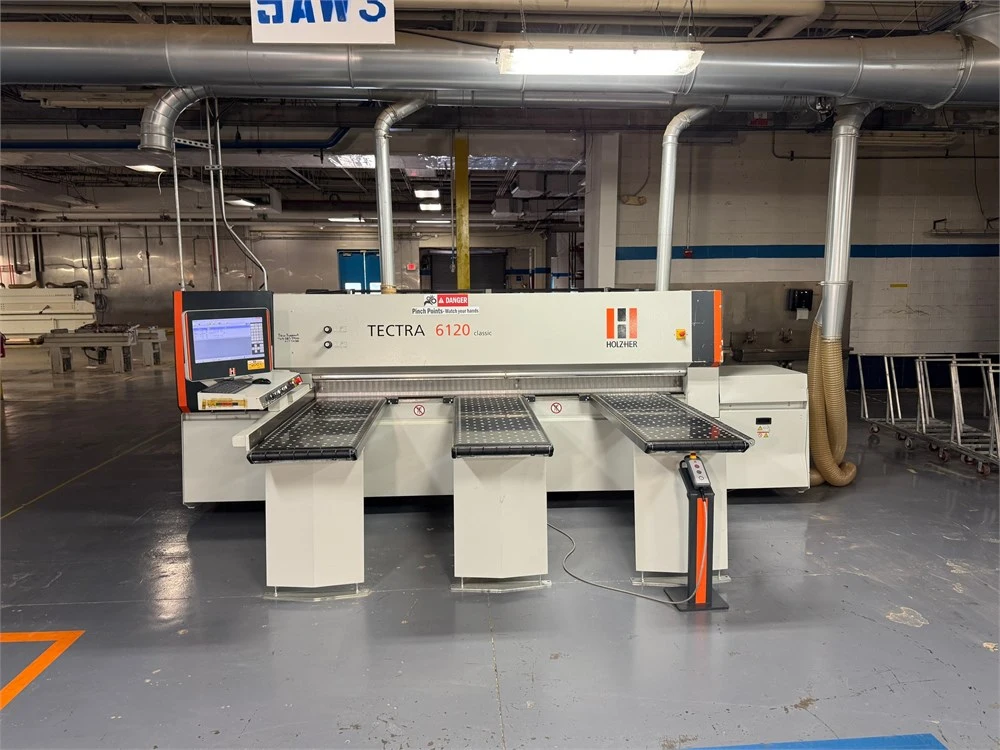

Holz-her "Tectra 6120" Beam Saw - Front Load (2019)
3,100 mm (122") Max. rip cut cap., & pull back pusher stroke;95 mm (3.7") saw blade projection;
15 HP (11 kW) Main saw motor, 3 HP (2.2 kW) scoring motor.
Variable feed speed from 3 - 328 FPM (1 - 100 MPM ),return speed of328 FPM (100 MPM).
Automatic cutting length limiter adjusts the cutting length at the end of the workpiece, automatic saw carriage lubrication.

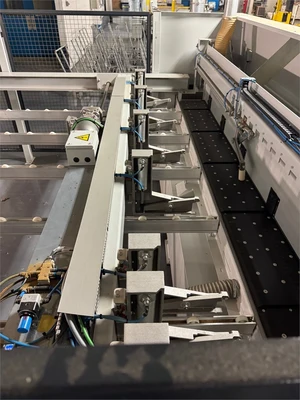

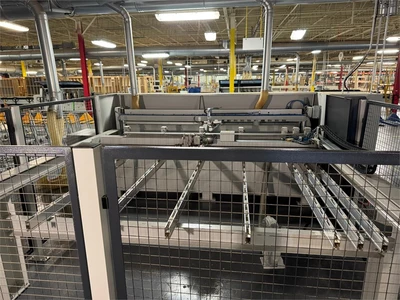

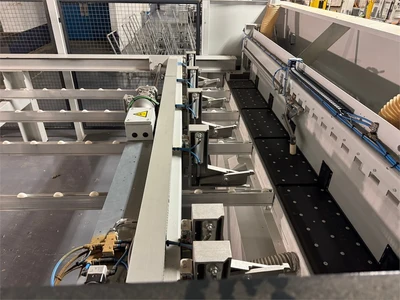

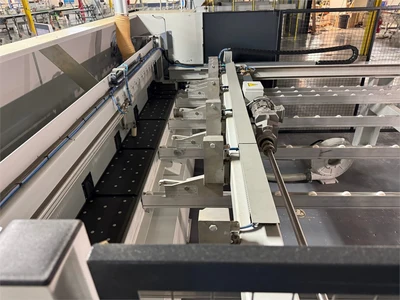

(7) Material gripper clamps; 82 FPM (25 MPM) forward positioning speed, 328 FPM (100 MPM) return speed.

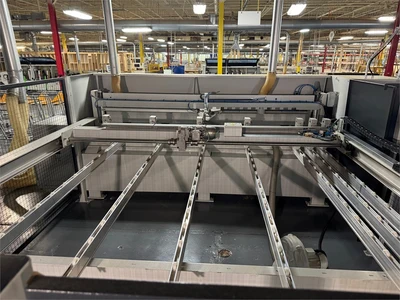

Rack & pinion movement on both sides to assure the pusher remains parallel.

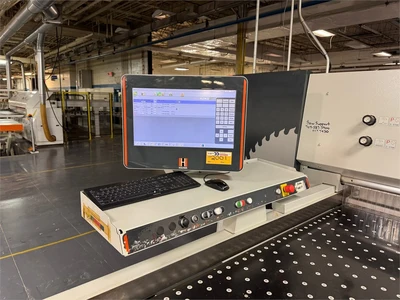

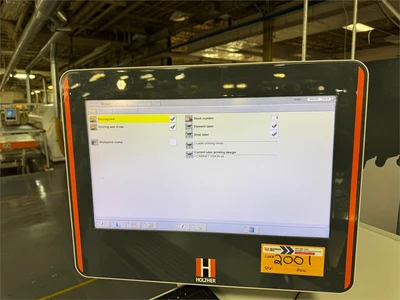

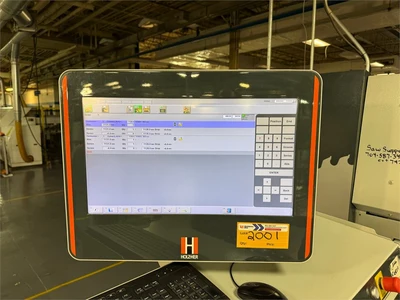

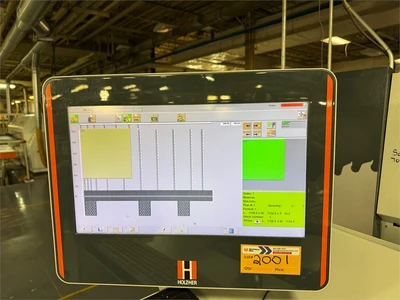

PC Front-End with "CUTCONTROL " + "EasyPlan" + Windows operating system,
21.5" TFT Display with unlimited program storage; keypad for data entry, USB & RS-232 serial port, CD ROMdrive forstorage of programs.

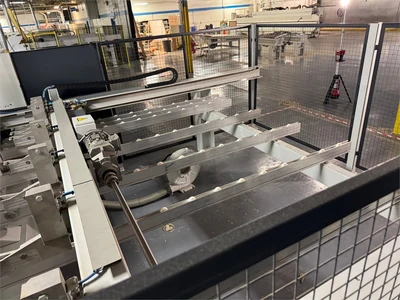

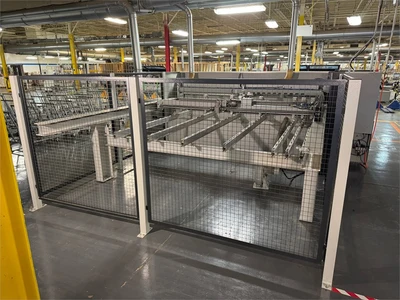

Non Marking rear roller support rails;Pneumatic crosscut side aligner, adjustablefrom 0" - 47.2" (0 - 1,200 mm);
Automatic saw blade height adjustment; Electronic positioning of the scoring blade through the NC control.
(3) Adjustable via "pneumatic locking" air support tables, ea. 72" x 24".

Phase: 3 PHASE
Voltage: 230 VOLT
Buyer Inspection Period: June 24 and June 25th 8:00AM - 3:00PM
Load Out Period: July 7-24 2026 By Appt Only
Estimated Dimensions: 18'W x 22'L x 7'H
Load Fee: 0.00
